Link-Belt
Equipment Hub: Buy, Sell or Rent

Recent repairs include -Engine 6000 Hours -Hydraulic Pump rebuild 2020 -Undercarriage 8000 Hours -New Alternator, Batteries and Front Window -Includes Tools, Toolbox, and 2way Radio -Spare parts available Machine is very well maintained and serviced

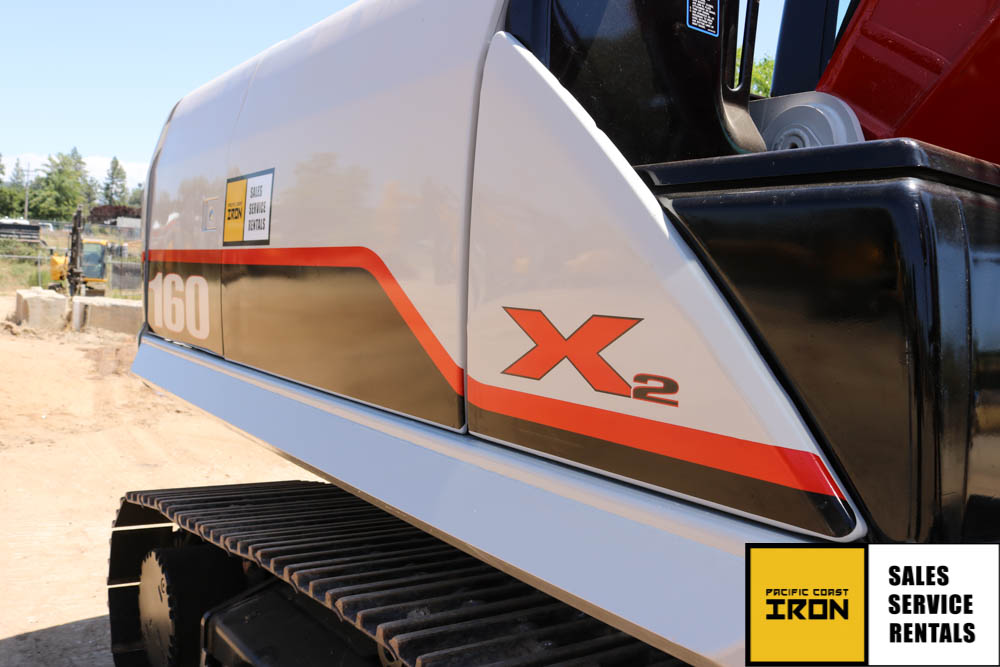

2013 LINK-BELT 160X2 EXCAVATOR 2013 LINK-BELT 160X2 EXCAVATOR WITH ONLY 4000HRS! UNIT JUST HAD A FULL MAINTANCE OVERHAUL! UNIT IS EQUIPPED WITH A HYDRAULIC THUMB, HYDRAULIC Q/C, 36″ BUCKET, AUX HYDRAULICS, TIER 3 IZUSU ENGINE, AND A PATTERN CHANGER. BRAND NEW HYDRAULIC THUMB AND COUPLER, 36″ BUCKET, NEW PINS AND BUSHINGS IN STICK, FULL 4000HOUR SERVICE, NEW PAINT AND OEM DECALS! THIS IS A VERY CLEAN AND TIGHT UNIT. READY TO GO TO WORK! Dimensions Boom/Stick Option (HEX) 1 A Shipping Length of Unit 27.7 ft in C Shipping Height of Unit 9.91 ft in I Max Cutting Height 30.32 ft in J Max Loading Height 21.69 ft in K Max Reach Along Ground 29.11 ft in L Max Vertical Wall Digging Depth 16.67 ft in M Max Digging Depth 19.89 ft in Boom/Stick Option (HEX) 2 A Shipping Length of Unit 27.96 ft in C Shipping Height of Unit 10.27 ft in I Max Cutting Height 30.48 ft in J Max Loading Height 21.95 ft in K Max Reach Along Ground 30.25 ft in L Max Vertical Wall Digging Depth 17.13 ft in M Max Digging Depth 21.3 ft in Dimensions B Width to Outside of Tracks 8.47 ft in D Length of Track on Ground 10.47 ft in E Ground Clearance 1.45 ft in G Height to Top of Cab 9.91 ft in H Tail Swing Radius 7.91 ft in Undercarriage F Track Gauge 6.53 ft in N Shoe Size 23.63 in Specifications Engine Number of Cylinders 4 Engine Make 2353 Engine Model AI-4JJ1X Net Power 120 hp Power Measured @ 2200 rpm Displacement 183.1 cu in Max Torque 288 lb ft Torque Measured @ 1800 rpm Aspiration Turbocharged Operational Operating Weight 37700 lb Fuel Capacity 79.3 gal Cooling System Fluid Capacity 4 gal Hydraulic System Fluid Capacity 43.6 gal Engine Oil Capacity 4.5 gal Swing Drive Fluid Capacity 1.4 gal Operating Voltage 24 V Alternator Supplied Amperage 50 amps Hydraulic System Relief Valve Pressure 4970 psi Hydraulic Pump Flow Capacity 75 gal/min Swing Mechanism Swing Speed 11.5 rpm Swing Torque 33264 lb ft Undercarriage Number of Shoes per Side 44 Shoe Size 23.7 in Number of Carrier Rollers per Side 2 Number of Track Rollers per Side 7 Ground Pressure 5.8 psi Max Travel Speed 3.4 mph Track Gauge 6.6 ft in Buckets Reference Bucket Capacity 1 yd3 Minimum Bucket Capacity 0.5 yd3 Maximum Bucket Capacity 1.2 yd3 Boom/Stick Option (HEX) 1 Boom/Stick Option (HEX) 1 Boom 16’11” (5150mm) / Stick 8’7” (2620mm) Shipping Height of Unit 10 ft in Shipping Length of Unit 27.7 ft in Max Digging Depth 19.9 ft in Max Reach Along Ground 29.2 ft in Max Cutting Height 30.4 ft in Max Loading Height 21.7 ft in Max Vertical Wall Digging Depth 16.7 ft in Boom/Stick Option (HEX) 2 Boom/Stick Option (HEX) 2 Boom 16’11” (5150mm) / Stick 10’0” (3050mm) Shipping Height of Unit 10.3 ft in Shipping Length of Unit 28 ft in Max Digging Depth 21.3 ft in Max Reach Along Ground 30.3 ft in Max Cutting Height 30.5 ft in Max Loading Height 22 ft in Max Vertical Wall Digging Depth 17.2 ft in Dimensions Width to Outside of Tracks 8.5 ft in Height to Top of Cab 10 ft in Ground Clearance 1.5 ft in Removal Counterweight Clearance 3.4 ft in Tail Swing Radius 8 ft in Length of Track on Ground 10.5 ft in

2013 LINK-BELT 160X2 EXCAVATOR WITH ONLY 4000HRS! UNIT JUST HAD A FULL MAINTANCE OVERHAUL! UNIT IS EQUIPPED WITH A HYDRAULIC THUMB, HYDRAULIC Q/C, 36″ BUCKET, AUX HYDRAULICS, TIER 3 IZUSU ENGINE, AND A PATTERN CHANGER. BRAND NEW HYDRAULIC THUMB AND COUPLER, 36″ BUCKET, NEW PINS AND BUSHINGS IN STICK, FULL 4000HOUR SERVICE, NEW PAINT AND OEM DECALS! THIS IS A VERY CLEAN AND TIGHT UNIT. READY TO GO TO WORK!

CWS Hybrid grapple. Very well maintained unit. Low hours

FEATURES: EROPS HEAT/AC TIER 4 FINAL ISUZU ENGINE PROGRESSIVE THUMB HYDRAULIC Q/C AUX HYD MEDIUM STICK 24″ PADS 360 CAMERA

2021 LINK-BELT 145X4 EXCAVATOR 2021 LINK-BELT 145X4 EXCAVATOR WITH 850HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, HYDRAULIC COUPLER, PROGRESSIVE THUMB, AUX HYDRAULICS, KNOCK DOWN BLADE, 24″ PADS, CAB HEAT/AC, AND A LINK-BELT POWERTRAIN WARRANTY. MACHINE SPECIFACATIONS: Specification Value SAE Net Horsepower 102 HP (76.4 kW) Operating Weight 33,600 lbs. (15,200 kg) Digging Depth 18 ft 1 in (5.51 m) Engine Model Isuzu AR-4JJ1X Displacement 183 cu in (3.0 L) Maximum Torque 257 lbf-ft (349 Nm) @ 1,800 rpm Starter 24V-4.0 kW Alternator 50 amp Battery (2) 12-volt 72 amp hours Fuel Tank Capacity 53 Gallons (200 Liters) Hydraulic System Capacity 42 Gallons (158 Liters) Hydraulic Tank Capacity 20 Gallons (75 Liters) Final Drive Capacity (per side) 0.6 Gallons (2.1 Liters) Swing Drive Capacity 0.6 Gallons (2.1 Liters) Engine Oil Capacity 4.5 Gallons (17.0 Liters) DEF Tank Capacity 11.4 Gallons (43.1 Liters) Coolant System Capacity 4.4 Gallons (16.5 Liters) Pump Output 2 x 34.1 gpm (129 L/min) Pilot Pump Maximum Flow 5.3 gpm (20 L/min) Boom / Arm / Bucket Relief Valve Settings 4,970 psi (34.3 MPa) Swing Circuit Relief Valve Setting 4,050 psi (27.9 MPa) Travel Circuit Relief Valve Setting 4,970 psi (34.3 MPa) Swing Speed 12.5 rpm Tail Swing 5′ 0″ (1.53 m) Swing Torque 27,400 lbf-ft (37 kNm) Travel Speeds 2.1 – 3.5 mph (3.4 – 5.6 km/h) Drawbar Pull 26,100 lbf (116 kN) Gradeability 70% (35°) Boom Length 15′ 2″ (4.63 m) Arm Length Options 8′ 2″ (2.50 m), 9′ 11″ (3.01 m), 6′ 11″ (2.11 m) Ground Pressure 5.22 psi (0.036 MPa)

21 Tonne Excavator
Tier 3 Izuzu Engine
Thumb
Hydraulic Coupler
Dig/Grading Buckets

2004 Link Belt RTC 8050

2004 RTC8050 50 TON ROUGH TERRAIN CRANE WITH ONLY 4900HRS. IT HAS A CAB WITH HEAT/AC, TIER 2 CUMMINS ENGINE, MAIN AND AUX WINCHES(2 SPEED), 30′ JIB, JOYSTICK CONTROLS, GOOD TIRES, FOUR SECTION BOOM, BOOM MEASURES 110′ FULLY EXTENDED W/ JIB. CURRENT CERTS WILL BE COMPLETED PRIOR TO SALE. Hours: 4,900 Location: Placerville, CA 95667 Price: 185,900 Boom I. MIN HEIGHT @ MAX RAISE ANGLE 43 ft in 13.1 m J. MAX HEIGHT @ MAX RAISE ANGLE – NO JIB 118.4 ft in 36.1 m K. MIN OPERATING RADIUS 10 ft in 3 m L. MAX OPERATING RADIUS 100 ft in 30.5 m M. MAX ELEVATING ANGLE 78 degrees Dimensions A. TRANSPORT LENGTH 43.7 ft in 13330 mm B. TRANSPORT WIDTH 10.3 ft in 3140 mm C. TRANSPORT HEIGHT 12 ft in 3650 mm D. WHEELBASE 13.4 ft in 4090 mm E. GROUND CLEARANCE 0.82 ft in 250 mm F. WIDTH W/ OUTRIGGERS EXTENDED 22.5 ft in 6860 mm G. CARRIER/BASE LENGTH 25.6 ft in 7810 mm H. UPPER STRUCTURE TAIL SWING RADIUS 12.8 ft in 3900 mm Specification Engine MAKE Caterpillar MODEL C6.6 GROSS POWER 174 hp 129.8 kw POWER MEASURED @ 2200 rpm MAX TORQUE 512 lb ft 694.2 Nm TORQUE MEASURED @ 1500 rpm DISPLACEMENT 402.8 cu in 6.6 L Operational OPERATING WEIGHT 72495 lb 32883.2 kg FUEL CAPACITY 75 gal 283.9 L HYDRAULIC SYSTEM FLUID CAPACITY 131 gal 495.9 L ENGINE OIL CAPACITY 4.6 gal 17.4 L OPERATING VOLTAGE 12 V ALTERNATOR SUPPLIED AMPERAGE 150 amps TIRE SIZE 23.5×25 Transmission TYPE full automatic NUMBER OF FORWARD GEARS 6 NUMBER OF REVERSE GEARS 2 MAX SPEED – FORWARD 22.4 mph 36.1 km/h MAX SPEED – REVERSE 3.9 mph 6.3 km/h Boom NUMBER OF SECTIONS 4 MIN HEIGHT @ MAX RAISE ANGLE 43 ft in 13.1 m MAX HEIGHT @ MAX RAISE ANGLE – NO JIB 118.4 ft in 36.1 m MAX ELEVATING ANGLE 78 degrees MAX LIFT CAPACITY 100000 lb 45359.2 kg SWING SPEED 2.5 rpm MIN OPERATING RADIUS 10 ft in 3 m MAX OPERATING RADIUS 100 ft in 30.5 m Dimensions TRANSPORT LENGTH 43.7 ft in 13330 mm TRANSPORT WIDTH 10.3 ft in 3140 mm TRANSPORT HEIGHT 12 ft in 3650 mm GROUND CLEARANCE 0.82 ft in 250 mm WHEELBASE 13.4 ft in 4090 mm WIDTH W/ OUTRIGGERS EXTENDED 22.5 ft in 6860 mm CARRIER/BASE LENGTH 25.6 ft in 7810 mm UPPER STRUCTURE TAIL SWING RADIUS 12.8 ft in 3900 mm

2003 Link Belt 210LX Excavator(sold)

VERY CLEAN 2003 LINK-BELT 210LX CRAWLER EXCAVATOR, HYDRAULIC THUMB, 7500HRS, ORIGINAL PAINT, 42″ BUCKET, AUX HYDRAULICS, ISUZU MOTOR, PINS AND BUSHING ARE TIGHT, UC AT 70%, THIS IS A ONE OWNER UNIT! COME DEMO IT ON OUR YARD. INSPECTIONS ALWAYS WELCOME! Hours: 7500 Location: Placerville, CA Price: $53,500 A. SHIPPING LENGTH OF UNIT 30.8 ft in 9390 mm C. SHIPPING HEIGHT OF UNIT 9.5 ft in 2910 mm I. MAX CUTTING HEIGHT 31.7 ft in 9650 mm J. MAX LOADING HEIGHT 22.4 ft in 6840 mm K. MAX REACH ALONG GROUND 32.1 ft in 9790 mm L. MAX VERTICAL WALL DIGGING DEPTH 19.9 ft in 6080 mm M. MAX DIGGING DEPTH 22 ft in 6710 mm Dimensions B. WIDTH TO OUTSIDE OF TRACKS 10.5 ft in 3190 mm D. LENGTH OF TRACK ON GROUND 12 ft in 3660 mm E. GROUND CLEARANCE 1.5 ft in 460 mm G. HEIGHT TO TOP OF CAB 9.4 ft in 2880 mm H. TAIL SWING RADIUS 8.9 ft in 2720 mm O. COUNTERWEIGHT CLEARANCE 3.4 ft in 1040 mm Undercarriage F. TRACK GAUGE 7.8 ft in 2390 mm N. SHOE SIZE 31.5 in 800 mm SPECIFICATION Engine MAKE Isuzu MODEL BB-6BG1T NET POWER 138 hp 102.9 kw POWER MEASURED @ 1950 rpm DISPLACEMENT 396 cu in 6.5 L TORQUE MEASURED @ 1600 rpm MAX TORQUE 392 lb ft 531.5 Nm ASPIRATION Turbocharged NUMBER OF CYLINDERS 6 Operational OPERATING WEIGHT 44800 lb 20320.9 kg FUEL CAPACITY 89.8 gal 340 L COOLING SYSTEM FLUID CAPACITY 7.1 gal 27 L HYDRAUILC SYSTEM FLUID CAPACITY 54.4 gal 206 L ENGINE OIL CAPACITY 6.3 gal 24 L SWING DRIVE FLUID CAPACITY 1.2 gal 4.5 L OPERATING VOLTAGE 24 V ALTERNATOR SUPPLIED AMPERAGE 40 amps HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4970 psi 34266.9 kPa HYDRAULIC PUMP FLOW CAPACITY 106.2 gal/min 402 L/min Swing Mechanism SWING SPEED 11.9 rpm SWING TORQUE 44840 lb ft 60794.9 Nm Undercarriage NUMBER OF SHOES PER SIDE 49 SHOE SIZE 31.5 in 800 mm NUMBER OF CARRIER ROLLERS PER SIDE 2 NUMBER OF TRACK ROLLERS PER SIDE 8 GROUND PRESSURE 4.6 psi 32 kPa MAX TRAVEL SPEED 3.4 mph 5.5 km/h TRACK GAUGE 7.8 ft in 2390 mm Buckets REFERENCE BUCKET CAPACITY 1.1 yd3 0.83 m3 MINIMUM BUCKET CAPACITY 0.65 yd3 0.5 m3 MAXIMUM BUCKET CAPACITY 1.5 yd3 1.2 m3 Boom/Stick Option (HEX) 1 BOOM/STICK OPTION (HEX) 1 Boom 18’8″ (5700mm) / Stick 9’10” (3000mm) SHIPPING HEIGHT OF UNIT 9.5 ft in 2910 mm SHIPPING LENGTH OF UNIT 30.8 ft in 9390 mm MAX DIGGING DEPTH 22 ft in 6710 mm MAX REACH ALONG GROUND 32.1 ft in 9790 mm MAX CUTTING HEIGHT 31.7 ft in 9650 mm MAX LOADING HEIGHT 22.4 ft in 6840 mm MAX VERTICAL WALL DIGGING DEPTH 19.9 ft in 6080 mm Dimensions WIDTH TO OUTSIDE OF TRACKS 10.5 ft in 3190 mm HEIGHT TO TOP OF CAB 9.4 ft in 2880 mm GROUND CLEARANCE 1.5 ft in 460 mm COUNTERWEIGHT CLEARANCE 3.4 ft in 1040 mm TAIL SWING RADIUS 8.9 ft in 2720 mm LENGTH OF TRACK ON GROUND 12 ft in 3660 mm

Recent repairs incude
-Engine Replaced 20850 Hours
-Hydraulic Pump rebuild 2020
-Undercarriage Replaced 3000 Hours
-New Alternator
-Turbo Replaced 24300 Hours
-Swing box and Swing motor rebuilt 2021
-Boom base pins and bushings replaced
-Boom Removed and 1/2 inch plates added to reinforce Boom ($8000.00)
-Includes Tools, Toolbox, and 2way Radio
-Spare parts available
Machine is very well maintained and serviced

2005 Link Belt 160LX Excavator

2005 LINK BELT 160LX EXCAVATOR WITH ONLY 5000HRS! THIS UNIT HAS BEEN OWNER OPERATED SINCE NEW. PROFESSIONALLY SERVICED SINCE NEW. UNIT IS EQUIPPED WITH A FULLY PROGRESSIVE HYDRAULIC THUMB, AUX HYDRAULICS, PSM COUPLER, TIER 2 ISUZU ENGINE, EROPS W/ HEAT/AC, COMES WITH PSM ROCK GRAPPLE,(USED THREE TIMES OVER $25K NEW) 24″, 36″ AND 48″ BUCKETS. SELLING AS A PACKAGE. WILL NOT SEPARATE! UC AT ABOUT 75%. THIS UNIT HAS BEEN BABIED ALL ITS LIFE AND IS EXTREMELY TIGHT AND CLEAN. PRICE: 79,900 LOCATION: PLACERVILLE, CA HOURS: 5,000 2005 Link Belt 160LX Excavator Specs A. SHIPPING LENGTH OF UNIT 27.7 ft in 8440 mm C. SHIPPING HEIGHT OF UNIT 9.9 ft in 3020 mm I. MAX CUTTING HEIGHT 30.3 ft in 9240 mm J. MAX LOADING HEIGHT 21.7 ft in 6610 mm K. MAX REACH ALONG GROUND 29.1 ft in 8870 mm L. MAX VERTICAL WALL DIGGING DEPTH 16.7 ft in 5080 mm M. MAX DIGGING DEPTH 19.9 ft in 6060 mm Dimensions B. WIDTH TO OUTSIDE OF TRACKS 8.5 ft in 2580 mm D. LENGTH OF TRACK ON GROUND 10.5 ft in 3190 mm E. GROUND CLEARANCE 1.4 ft in 440 mm G. HEIGHT TO TOP OF CAB 9.9 ft in 3020 mm H. TAIL SWING RADIUS 7.9 ft in 2410 mm O. COUNTERWEIGHT CLEARANCE 3.3 ft in 1020 mm Undercarriage F. TRACK GAUGE 6.5 ft in 1990 mm N. SHOE SIZE 23.6 in 600 mm Specification Engine MAKE Isuzu MODEL AI-4JJ1X NET POWER 120 hp 89.5 kw POWER MEASURED @ 2200 rpm DISPLACEMENT 183.1 cu in 3 L TORQUE MEASURED @ 1800 rpm MAX TORQUE 288 lb ft 390.5 Nm ASPIRATION Turbocharged NUMBER OF CYLINDERS 4 Operational OPERATING WEIGHT 37700 lb 17100.4 kg FUEL CAPACITY 79.3 gal 300 L COOLING SYSTEM FLUID CAPACITY 4 gal 15 L HYDRAUILC SYSTEM FLUID CAPACITY 43.6 gal 165 L ENGINE OIL CAPACITY 4.5 gal 17 L SWING DRIVE FLUID CAPACITY 1.3 gal 5 L OPERATING VOLTAGE 24 V ALTERNATOR SUPPLIED AMPERAGE 50 amps HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4970 psi 34266.9 kPa HYDRAULIC PUMP FLOW CAPACITY 75 gal/min 283.9 L/min Swing Mechanism SWING SPEED 11.5 rpm SWING TORQUE 33264 lb ft 45099.9 Nm Undercarriage NUMBER OF SHOES PER SIDE 44 SHOE SIZE 23.6 in 600 mm NUMBER OF CARRIER ROLLERS PER SIDE 2 NUMBER OF TRACK ROLLERS PER SIDE 7 GROUND PRESSURE 5.8 psi 40 kPa MAX TRAVEL SPEED 3.4 mph 5.5 km/h TRACK GAUGE 6.5 ft in 1990 mm Buckets REFERENCE BUCKET CAPACITY 0.95 yd3 0.73 m3 MINIMUM BUCKET CAPACITY 0.5 yd3 0.38 m3 MAXIMUM BUCKET CAPACITY 1.1 yd3 0.87 m3 Boom/Stick Option (HEX) 1 BOOM/STICK OPTION (HEX) 1 Boom 16’11” (5150mm) / Stick 8’7″ (2620mm) SHIPPING HEIGHT OF UNIT 9.9 ft in 3020 mm SHIPPING LENGTH OF UNIT 27.7 ft in 8440 mm MAX DIGGING DEPTH 19.9 ft in 6060 mm MAX REACH ALONG GROUND 29.1 ft in 8870 mm MAX CUTTING HEIGHT 30.3 ft in 9240 mm MAX LOADING HEIGHT 21.7 ft in 6610 mm MAX VERTICAL WALL DIGGING DEPTH 16.7 ft in 5080 mm Boom/Stick Option (HEX) 2 BOOM/STICK OPTION (HEX) 2 Boom 16’11” (5150mm) / Stick 10’0″ (3050mm) SHIPPING HEIGHT OF UNIT 10.3 ft in 3130 mm SHIPPING LENGTH OF UNIT 28 ft in 8520 mm MAX DIGGING DEPTH 21.3 ft in 6490 mm MAX REACH ALONG GROUND 30.2 ft in 9220 mm MAX CUTTING HEIGHT 30.5 ft in 9290 mm MAX LOADING HEIGHT 21.9 ft in 6690 mm MAX VERTICAL WALL DIGGING DEPTH 17.1 ft in 5220 mm Dimensions WIDTH TO OUTSIDE OF TRACKS 8.5 ft in 2580 mm HEIGHT TO TOP OF CAB 9.9 ft in 3020 mm GROUND CLEARANCE 1.4 ft in 440 mm COUNTERWEIGHT CLEARANCE 3.3 ft in 1020 mm TAIL SWING RADIUS 7.9 ft in 2410 mm LENGTH OF TRACK ON GROUND 10.5 ft in 3190 mm

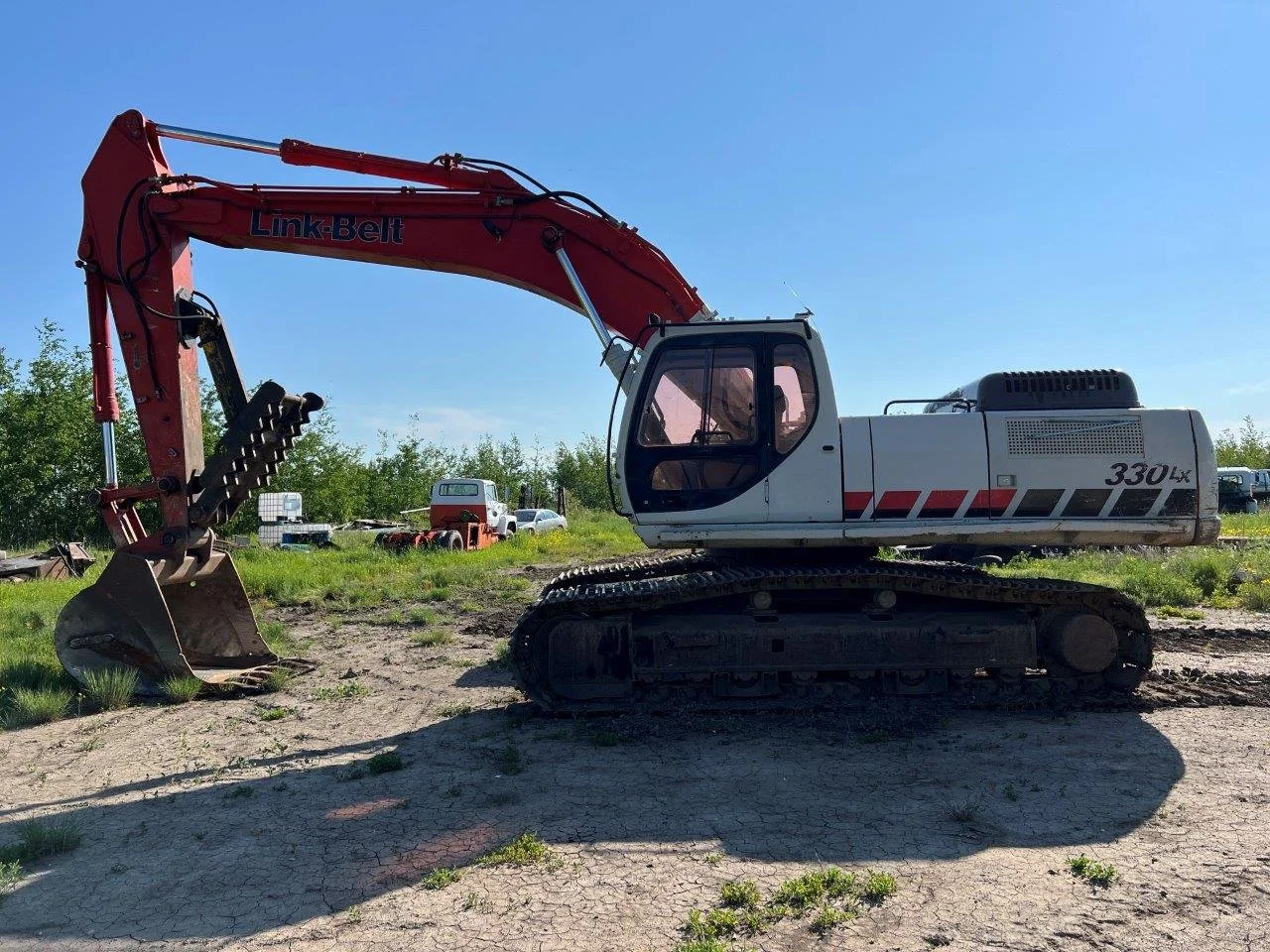

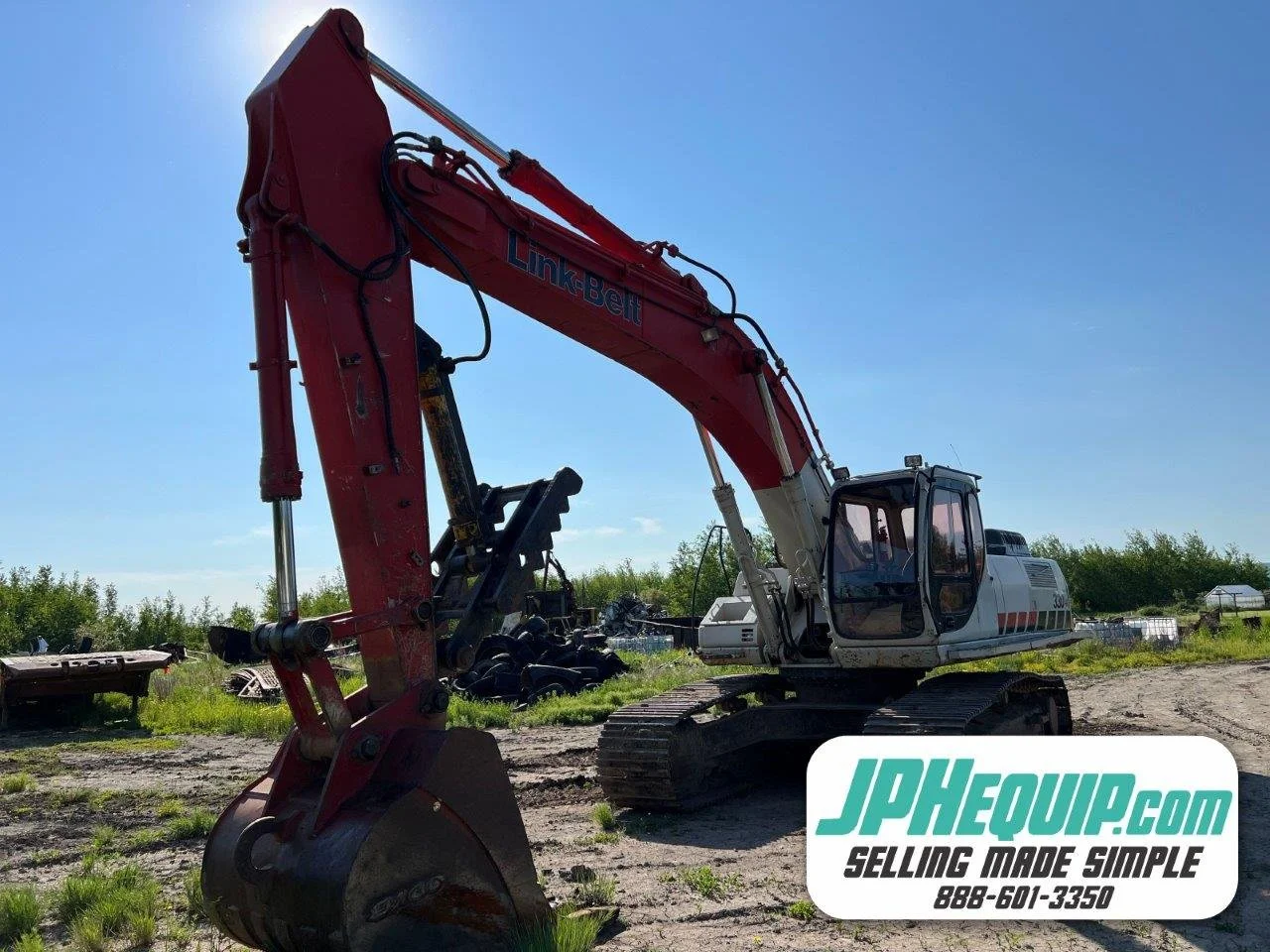

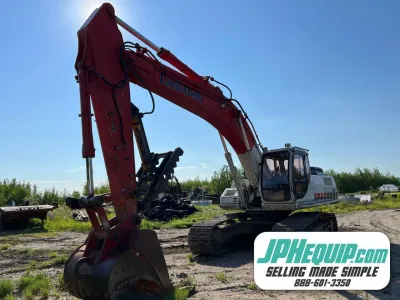

2008 Link-Belt 330 LX Excavator with Genesis LXP 300 Pulverizer AND Shear
  WE SHIP DIRECT TO YOU, USA, and Worldwide!! Financing Available
  • Stock Number: 8736 DP  • Located in Northwest AB   • Isuzu AH-6HK1X Engine with 248 HP   • 78,500 LB Operating Weight w/o attachments   • Hours: 7,549   • 62in Dig bucket   • Aux Hydraulics   • Quick Coupler Type: PIN   • Front Boss Diameter: 3   • Rear Boss Diameter: 3   • Boss Spacing Centre to Centre: 21   • Coupler Width: 17.5   • Genesis LXP 300 Pulverizer at 35in jaw opening and 26IN jaw depth  • Genesis LXP 300 Shear head    • Webasto pre heater: No   • EPA Label Present: Yes   • A/C and Heated Cab    • HD Thumb   • Positive Air Shut Off: Yes   • Stick Length: 10' 9"  • Pad Width: 31.5 in.  • Auxiliary Hydraulics  • Additional jaws and parts included
• Contact us today if you need more information • JPH Equipment • Buying Made Simple • We Ship Worldwide •
• Export/Duties/Tariffs/Transport not included. Additional fees will apply for export to outside of Canada
*We do not guarantee that these specifications are error-free or fully complete. The above specifications/details are provided as reference only and should be confirmed prior to purchase.

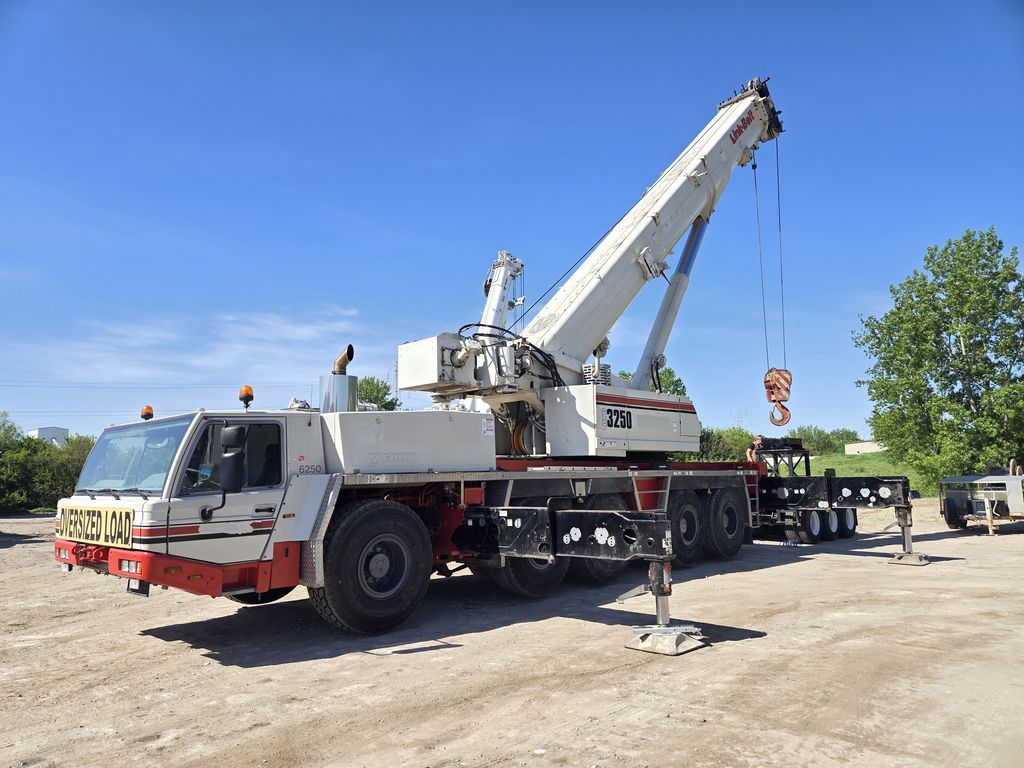

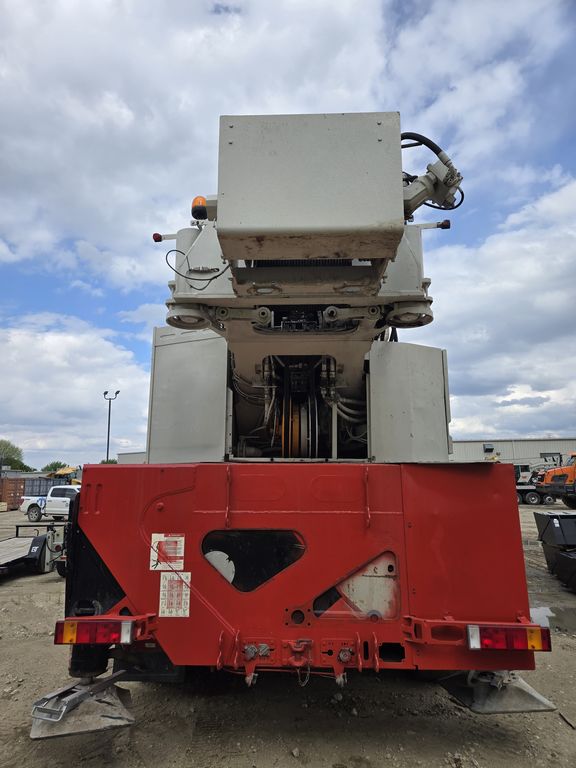

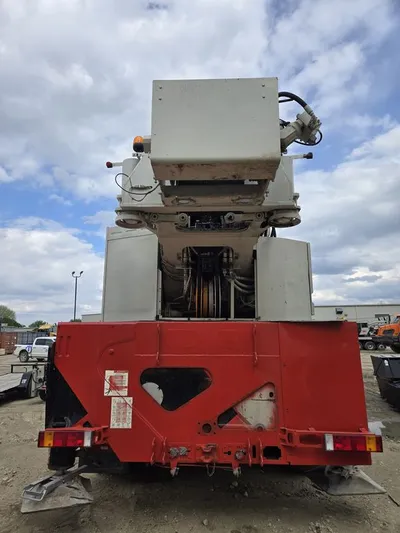

2009 Link Belt ATC3250 available for sale. Contact RTL Equipment for more information!  14,800 Upper Hours  1,675 Lower Hours  67,500 km  Nelson 3 Axle Boom Dolly  Tires good (mixed)  Jib w/ Inserts  Good running & Operating Condition DELIVERY AVAILABLE (ADDITIONAL FEE MAY APPLY)

2021 LINK-BELT 145X4 EXCAVATOR
2021 LINK-BELT 145X4 EXCAVATOR WITH 850HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, HYDRAULIC COUPLER, PROGRESSIVE THUMB, AUX HYDRAULICS, KNOCK DOWN BLADE, 24″ PADS, CAB HEAT/AC, AND A LINK-BELT POWERTRAIN WARRANTY.
MACHINE SPECIFACATIONS:
Specification
Value
SAE Net Horsepower
102 HP (76.4 kW)
Operating Weight
33,600 lbs. (15,200 kg)
Digging Depth
18 ft 1 in (5.51 m)
Engine Model
Isuzu AR-4JJ1X
Displacement
183 cu in (3.0 L)
Maximum Torque
257 lbf-ft (349 Nm) @ 1,800 rpm
Starter
24V-4.0 kW
Alternator
50 amp
Battery
(2) 12-volt 72 amp hours
Fuel Tank Capacity
53 Gallons (200 Liters)
Hydraulic System Capacity
42 Gallons (158 Liters)
Hydraulic Tank Capacity
20 Gallons (75 Liters)
Final Drive Capacity (per side)
0.6 Gallons (2.1 Liters)
Swing Drive Capacity
0.6 Gallons (2.1 Liters)
Engine Oil Capacity
4.5 Gallons (17.0 Liters)
DEF Tank Capacity
11.4 Gallons (43.1 Liters)
Coolant System Capacity
4.4 Gallons (16.5 Liters)
Pump Output
2 x 34.1 gpm (129 L/min)
Pilot Pump Maximum Flow
5.3 gpm (20 L/min)
Boom / Arm / Bucket Relief Valve Settings
4,970 psi (34.3 MPa)
Swing Circuit Relief Valve Setting
4,050 psi (27.9 MPa)
Travel Circuit Relief Valve Setting
4,970 psi (34.3 MPa)
Swing Speed
12.5 rpm
Tail Swing
5′ 0″ (1.53 m)
Swing Torque
27,400 lbf-ft (37 kNm)
Travel Speeds
2.1 – 3.5 mph (3.4 – 5.6 km/h)
Drawbar Pull
26,100 lbf (116 kN)
Gradeability
70% (35°)
Boom Length
15′ 2″ (4.63 m)
Arm Length Options
8′ 2″ (2.50 m), 9′ 11″ (3.01 m), 6′ 11″ (2.11 m)
Ground Pressure
5.22 psi (0.036 MPa)

2008 Link-Belt 330 LX Excavator with Genesis LXP 300 Pulverizer AND Shear WE SHIP DIRECT TO YOU, USA, and Worldwide!! Financing Available • Stock Number: 8736 DP • Located in Northwest AB • Isuzu AH-6HK1X Engine with 248 HP • 78,500 LB Operating Weight w/o attachments  • Hours: 7,549 • 62in Dig bucket • Aux Hydraulics • Quick Coupler Type: PIN • Front Boss Diameter: 3 • Rear Boss Diameter: 3 • Boss Spacing Centre to Centre: 21 • Coupler Width: 17.5 • Genesis LXP 300 Pulverizer at 35in jaw opening and 26IN jaw depth • Genesis LXP 300 Shear head • Webasto pre heater: No • EPA Label Present: Yes • A/C and Heated Cab • HD Thumb • Positive Air Shut Off: Yes • Stick Length: 10' 9" • Pad Width: 31.5 in. • Auxiliary Hydraulics • Additional jaws and parts included • Contact us today if you need more information • JPH Equipment • Buying Made Simple • We Ship Worldwide • • Export/Duties/Tariffs/Transport not included. Additional fees will apply for export to outside of Canada *We do not guarantee that these specifications are error-free or fully complete. The above specifications/details are provided as reference only and should be confirmed prior to purchase.

PARTS ONLY Short Stick with CWS Hydraulic Thumb 10' Stick Isuzu 6 Cylinder Diesel Engine Approx 36" Digging BUcket

Link Belt LS 180-2
Condition: Used
Year: 1992
Capacity: 55 tons
Winches: 2x14 tons with free fall
Engine: CAT

2012 Link Belt Spin Ace 80 Excavator

2012 LINK-BELT 80 SPIN ACE. ONLY 1286 HOURS ON THIS UNIT! IT HAS CAB WITH HEAT/AC AND RADIO. PIN GRABBER, AUX HYDRAULICS, SWING BOOM, POLY PAD TRACKS, TIER 4 ISUZU ENGINE AND A BACKFILL BLADE. THIS UNIT WAS PROFESSIONALLY MAINTAINED ITS ENTIRE LIFE. COMES WITH 36″ CLEAN OUT BUCKET AND 24″ BUCKET WITH TEETH. INDEPENDENT INSPECTION REPORT AVAILABLE UPON REQUEST. Price: $69,900 Serial Number: EDAK2-5504 Location: Utica, MI Hours: 1,200 A. SHIPPING LENGTH OF UNIT 21.8 ft in 6630 mm C. SHIPPING HEIGHT OF UNIT 8.9 ft in 2700 mm I. MAX CUTTING HEIGHT 21 ft in 6390 mm J. MAX LOADING HEIGHT 14.4 ft in 4390 mm K. MAX REACH ALONG GROUND 22.6 ft in 6890 mm L. MAX VERTICAL WALL DIGGING DEPTH 10.1 ft in 3080 mm M. MAX DIGGING DEPTH 13.7 ft in 4180 mm Dimensions B. WIDTH TO OUTSIDE OF TRACKS 7.6 ft in 2320 mm D. LENGTH OF TRACK ON GROUND 7.3 ft in 2210 mm E. GROUND CLEARANCE 1.2 ft in 360 mm G. HEIGHT TO TOP OF CAB 8.9 ft in 2700 mm Undercarriage F. TRACK GAUGE 6.1 ft in 1870 mm N. SHOE SIZE 17.7 in 450 mm Specification Engine MAKE Isuzu MODEL CC-4JG1 NET POWER 52 hp 38.8 kw POWER MEASURED @ 2100 rpm DISPLACEMENT 187 cu in 3.1 L TORQUE MEASURED @ 1800 rpm MAX TORQUE 136 lb ft 184.4 Nm ASPIRATION Natural NUMBER OF CYLINDERS 4 Operational OPERATING WEIGHT 18400 lb 8346.1 kg FUEL CAPACITY 26.4 gal 100 L COOLING SYSTEM FLUID CAPACITY 2.5 gal 9.6 L HYDRAUILC SYSTEM FLUID CAPACITY 25.1 gal 95 L ENGINE OIL CAPACITY 2.5 gal 9.6 L OPERATIONAL VOLTAGE 12 V ALTERNATOR SUPPLIED AMPERAGE 50 amps HYDRAULIC SYSTEM RELIEF VALVE PRESSURE 4260 psi 29371.6 kPa HYDRAULIC PUMP FLOW CAPACITY 37.8 gal/min 143.1 L/min Swing Mechanism SWING SPEED 10 rpm SWING TORQUE 12520 lb ft 16974.8 Nm Undercarriage NUMBER OF SHOES PER SIDE 39 SHOE SIZE 17.7 in 450 mm NUMBER OF CARRIER ROLLERS PER SIDE 1 NUMBER OF TRACK ROLLERS PER SIDE 5 GROUND PRESSURE 5.4 psi 37 kPa MAX TRAVEL SPEED 3 mph 4.8 km/h TRACK GAUGE 6.1 ft in 1870 mm Buckets REFERENCE BUCKET CAPACITY 0.35 yd3 0.27 m3 MINIMUM BUCKET CAPACITY 0.24 yd3 0.18 m3 MAXIMUM BUCKET CAPACITY 0.45 yd3 0.34 m3 Boom/Stick Option (HEX) 1 BOOM/STICK OPTION (HEX) 1 Boom 11’6″ (3500mm) / Stick 5’7″ (1710mm) SHIPPING HEIGHT OF UNIT 8.9 ft in 2700 mm SHIPPING LENGTH OF UNIT 21.8 ft in 6630 mm MAX DIGGING DEPTH 13.7 ft in 4180 mm MAX REACH ALONG GROUND 22.6 ft in 6890 mm MAX CUTTING HEIGHT 21 ft in 6390 mm MAX LOADING HEIGHT 14.4 ft in 4390 mm MAX VERTICAL WALL DIGGING DEPTH 10.1 ft in 3080 mm Boom/Stick Option (HEX) 2 BOOM/STICK OPTION (HEX) 2 Boom 11’6″ (3500mm) / Stick 6’11” (2120mm) SHIPPING HEIGHT OF UNIT 8.9 ft in 2700 mm SHIPPING LENGTH OF UNIT 22 ft in 6720 mm MAX DIGGING DEPTH 15.1 ft in 4590 mm MAX REACH ALONG GROUND 23.9 ft in 7270 mm MAX CUTTING HEIGHT 21.7 ft in 6600 mm MAX LOADING HEIGHT 15.1 ft in 4600 mm MAX VERTICAL WALL DIGGING DEPTH 11.6 ft in 3550 mm Dimensions WIDTH TO OUTSIDE OF TRACKS 7.6 ft in 2320 mm HEIGHT TO TOP OF CAB 8.9 ft in 2700 mm GROUND CLEARANCE 1.2 ft in 360 mm LENGTH OF TRACK ON GROUND 7.3 ft in 2210 mm

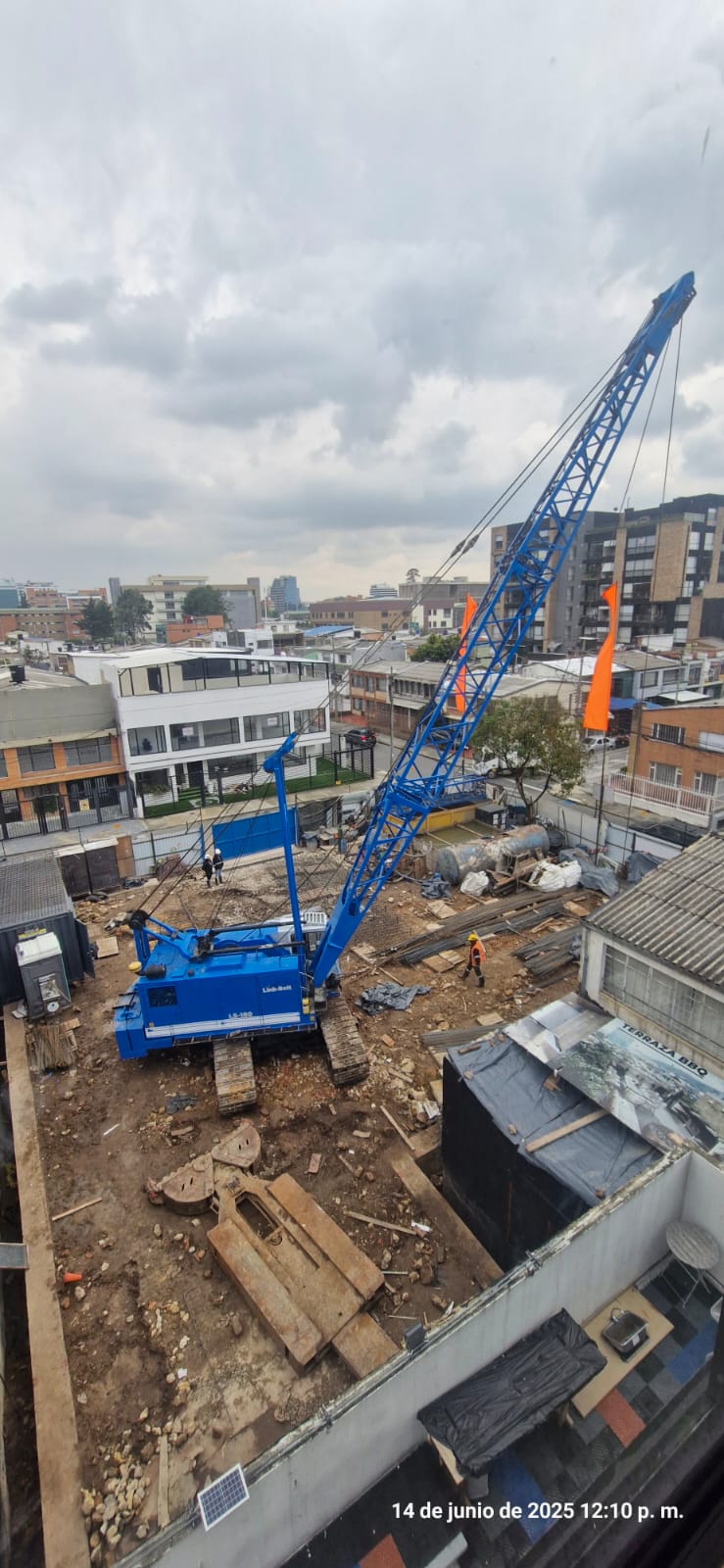

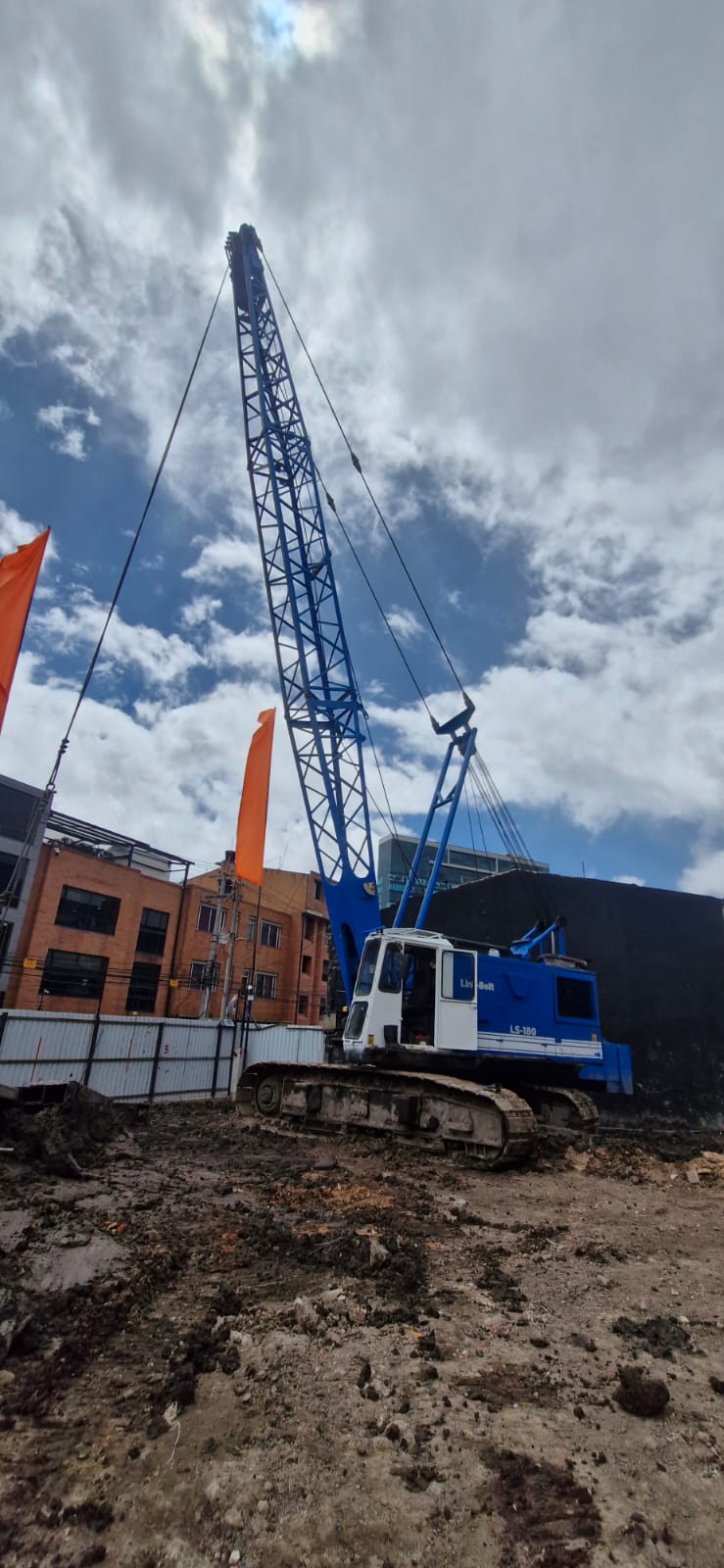

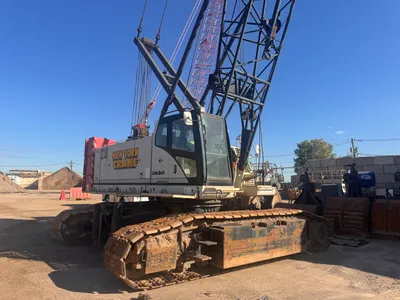

Used Link-Belt 218 crawler crane for sale
Year 2006
Hours: 7676
Good working condition

1998 Link Belt 5800Q Excavator(sold)

1998 LINK-BELT 5800Q 1998 LINK-BELT WITH 8440HRS, SERVICED AT FACTORY INTERVALS AND JUST HAD AN 8K HR SERVICE. EROPS W/AC/HEAT, CUMMINS M11 ENGINE, U/C AT 60%. ALL HYDRAULICS ARE IN GREAT SHAPE WITH PLENTY OF PRESSURE AND NO VISIBLE LEAKS. IT HAS A MEDIUM STICK (13’6”) AND BOOM IS 23’6”. PINS HAVE ALMOST NO NOTICEABLE PLAY. IT HAS A 66″ 4 YD CP BUCKET AND A HENDRIX HYDRAULIC QUICK DISSCONNECT AS WELL. YEAR: 1998 MANUFACTURER: LINK-BELT MODEL: 5800Q PRICE: $38000.00 LOCATION: PLACERVILLE, CA SPECIFICATIONS LINK-BELT 5800Q HYDRAULIC EXCAVATOR A. Shipping Length of Unit 39.4 ft in 12000 mm C. Shipping Height of Unit 11.6 ft in 3550 mm I. Max Cutting Height 35.5 ft in 10810 mm J. Max Loading Height 24.7 ft in 7530 mm K. Max Reach Along Ground 35.9 ft in 10950 mm L. Max Vertical Wall Digging Depth 18.2 ft in 5540 mm M. Max Digging Depth 22.6 ft in 6890 mm Dimensions B. Width to Outside of Tracks 11.9 ft in 3640 mm D. Length of Track on Ground 14 ft in 4260 mm E. Ground Clearance 1.7 ft in 520 mm G. Height to Top of Cab 10.9 ft in 3310 mm H. Tail Swing Radius 11.7 ft in 3570 mm O. Counterweight Clearance 4.5 ft in 1360 mm Undercarriage F. Track Gauge 9 ft in 2740 mm N. Shoe Size 35.4 in 900 mm SPECIFICATION Engine Make Cummins Model MIIC320-1.5c Net Power 300 hp 223.7 kw Power Measured @ 2000 rpm Displacement 661 cu in 10.8 L Torque Measured @ 1300 rpm Max Torque 910 lb ft 1233.8 Nm Aspiration Turbocharged Number of Cylinders 6 Operational Operating Weight 99800 lb 45268.5 kg Fuel Capacity 171.7 gal 650 L Cooling System Fluid Capacity 7.1 gal 27 L Hydrauilc System Fluid Capacity 118.9 gal 450 L Engine Oil Capacity 9 gal 34 L Swing Drive Fluid Capacity 5.5 gal 21 L Operating Voltage 24 V Alternator Supplied Amperage 70 amps Hydraulic System Relief Valve Pressure 4620 psi 31853.7 kPa Hydraulic Pump Flow Capacity 180 gal/min 681.4 L/min Swing Mechanism Swing Speed 8.5 rpm Swing Torque 105100 lb ft 142496.5 Nm Undercarriage Number of Shoes per Side 51 Shoe Size 35.4 in 900 mm Number of Carrier Rollers per Side 2 Number of Track Rollers per Side 9 Ground Pressure 7.7 psi 53 kPa Max Travel Speed 3.1 mph 5 km/h Track Gauge 9 ft in 2740 mm Buckets Reference Bucket Capacity 2 yd3 1.5 m3 Minimum Bucket Capacity 1.3 yd3 0.96 m3 Maximum Bucket Capacity 4 yd3 3.1 m3 Boom/Stick Option (HEX) 1 Boom/Stick Option (HEX) 1 Boom 23’4″ (7100mm) / Stick 8’2″ (2500mm) Shipping Height of Unit 11.6 ft in 3550 mm Shipping Length of Unit 39.4 ft in 12000 mm Max Digging Depth 22.6 ft in 6890 mm Max Reach Along Ground 35.9 ft in 10950 mm Max Cutting Height 35.5 ft in 10810 mm Max Loading Height 24.7 ft in 7530 mm Max Vertical Wall Digging Depth 18.2 ft in 5540 mm Boom/Stick Option (HEX) 2 Boom/Stick Option (HEX) 2 Boom 23’4″ (7100mm) / Stick 11’0″ (3360mm) Shipping Height of Unit 11.5 ft in 3490 mm Shipping Length of Unit 39.3 ft in 11970 mm Max Digging Depth 25.4 ft in 7750 mm Max Reach Along Ground 38.4 ft in 11710 mm Max Cutting Height 36.3 ft in 11060 mm Max Loading Height 25.5 ft in 7780 mm Max Vertical Wall Digging Depth 20.9 ft in 6370 mm Boom/Stick Option (HEX) 3 Boom/Stick Option (HEX) 3 Boom 23’4″ (7100mm) / Stick 13’1″ (4000mm) Shipping Height of Unit 11.7 ft in 3570 mm Shipping Length of Unit 39.4 ft in 12000 mm Max Digging Depth 27.5 ft in 8390 mm Max Reach Along Ground 40.3 ft in 12280 mm Max Cutting Height 36.8 ft in 11220 mm Max Loading Height 26 ft in 7940 mm Max Vertical Wall Digging Depth 22.8 ft in 6960 mm Boom/Stick Option (HEX) 4 Boom/Stick Option (HEX) 4 Boom 23’4″ (7100mm) / Stick 17’8″ (5400mm) Shipping Height of Unit 10.9 ft in 3310 mm Shipping Length of Unit 38.6 ft in 11780 mm Max Digging Depth 32.1 ft in 9790 mm Max Reach Along Ground 44.6 ft in 13580 mm Max Cutting Height 38.3 ft in 11680 mm Max Loading Height 27.6 ft in 8400 mm Max Vertical Wall Dig Depth 27.5 ft in 8390 mm Dimensions Width to Outside of Tracks 11.9 ft in 3640 mm Height to Top of Cab 10.9 ft in 3310 mm Ground Clearance 1.7 ft in 520 mm Counterweight Clearance 4.5 ft in 1360 mm Tail Swing Radius 11.7 ft in 3570 mm Length of Track on Ground 14 ft in 4260 mm
