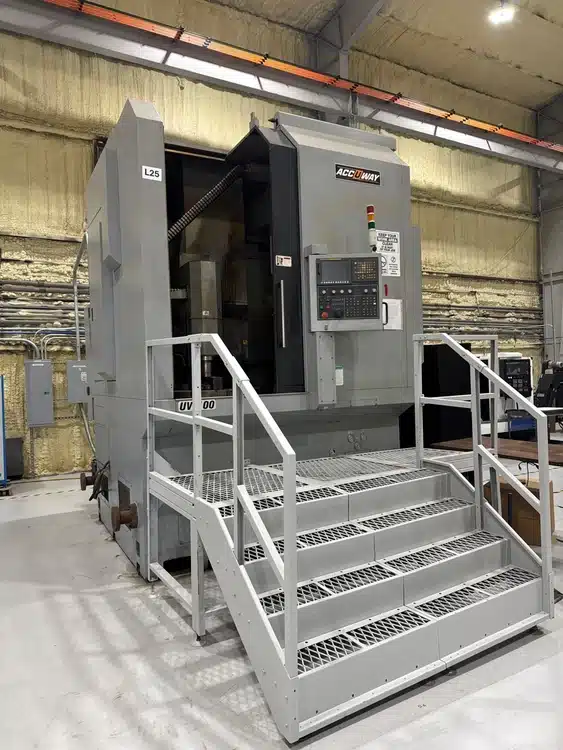

ACCUWAY UV100 VTL with Milling SPECIFICATIONS: CHUCK / TABLE DIA 40″ SWING 43.3″ MAXIMUM CUTTING DIAMETER 39.3 in MAXIMUM TURNING LENGTH 27.5 in VERTICAL TRAVEL X 30.1 in HORIZONTAL TRAVEL Z 31.3 in RPM 1,200 RPM POWER 37 kW CONTROL CNC (Fanuc Oi-TD Control) DIMENSIONS 138″ x 94″ x 160″ WEIGHT 37500 Swing Over Bed: 43.30″ Max Turning Diameter: 39.37″ Max Turning Length: 27.55″ Spindle Speed: 1200 RPM Spindle Taper: BT50 Spindle Nose: A2-15 Chuck Diameter: 40″ X Axis: 30.11″ Z Axis: 31.49″ Turret: 12 Stations Machine Weight: 37,500 LBS EQUIPPED WITH: Fanuc Oi-TD Control Auto Strong V-240 40″ (3) Jaw Chuck Live Tool 12 Position ATC Stainless Steel Way Covers RJ-45 interface Heat exchanger for electric cabinet 10.4″ Colored LCD monitor Hydraulic power supply unit Lubrication system 4-bar coolant system Three-color warning light hydraulic chuck & cylinder Single chain type chip conveyor + chip cart Tool kit Under 1000 Hours
