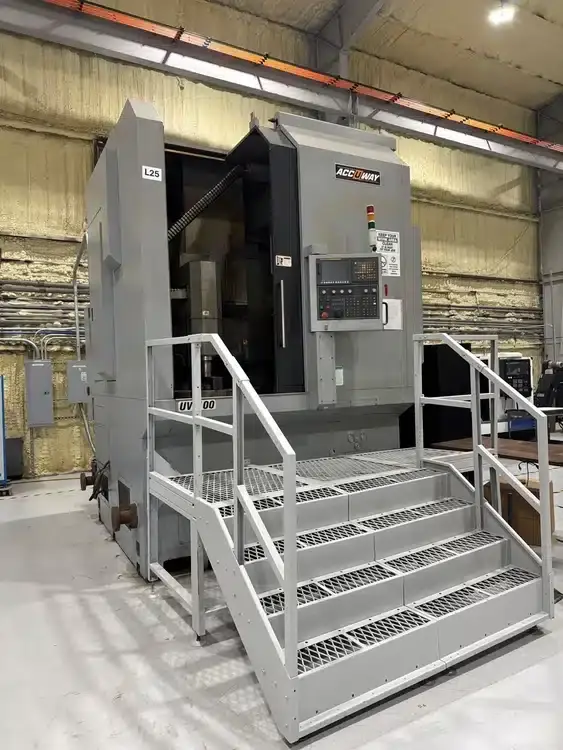

ACCUWAY UV-100 VTL with Milling – 2013 (Sold)
ACCUWAY UV-100 VTL with Milling – 2013 (Sold)
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Accuway
Model
UV-100 VTL
Hours of Usage
1000hr
Year of Manufacture
2013
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
ACCUWAY UV100 VTL with Milling SPECIFICATIONS: CHUCK / TABLE DIA 40″ SWING 43.3″ MAXIMUM CUTTING DIAMETER 39.3 in MAXIMUM TURNING LENGTH 27.5 in VERTICAL TRAVEL X 30.1 in HORIZONTAL TRAVEL Z 31.3 in RPM 1,200 RPM POWER 37 kW CONTROL CNC (Fanuc Oi-TD Control) DIMENSIONS 138″ x 94″ x 160″ WEIGHT 37500 Swing Over Bed: 43.30″ Max Turning Diameter: 39.37″ Max Turning Length: 27.55″ Spindle Speed: 1200 RPM Spindle Taper: BT50 Spindle Nose: A2-15 Chuck Diameter: 40″ X Axis: 30.11″ Z Axis: 31.49″ Turret: 12 Stations Machine Weight: 37,500 LBS EQUIPPED WITH: Fanuc Oi-TD Control Auto Strong V-240 40″ (3) Jaw Chuck Live Tool 12 Position ATC Stainless Steel Way Covers RJ-45 interface Heat exchanger for electric cabinet 10.4″ Colored LCD monitor Hydraulic power supply unit Lubrication system 4-bar coolant system Three-color warning light hydraulic chuck & cylinder Single chain type chip conveyor + chip cart Tool kit Under 1000 Hours
Used Cnc Brands
Accuway
Table Diameter
40"
Turning Cutting Diameter
39"
Turret Stations
12
Table Speed
1200 RPM
Control
Fanuc
Milling Capability
Yes
Swing Over Bed
: 43.30″
Spindle Nose
: A2-15 Chuck Diameter: 40″ X Axis: 30.11″ Z Axis: 31.49″ Turret: 12 Stations Machine Weight: 37,500 LBS EQUIPPED WITH: Fanuc Oi-TD Control Auto Strong V-240 40″ (3) Jaw Chuck Live Tool 12 Position ATC Stainless Steel Way Covers RJ-45 interface Heat exchanger for electric cabinet 10.4″ Colored LCD monitor Hydraulic power supply unit Lubrication system 4-
Description
ACCUWAY UV100 VTL with Milling SPECIFICATIONS: CHUCK / TABLE DIA 40″ SWING 43.3″ MAXIMUM CUTTING DIAMETER 39.3 in MAXIMUM TURNING LENGTH 27.5 in VERTICAL TRAVEL X 30.1 in HORIZONTAL TRAVEL Z 31.3 in RPM 1,200 RPM POWER 37 kW CONTROL CNC (Fanuc Oi-TD Control) DIMENSIONS 138″ x 94″ x 160″ WEIGHT 37500 Swing Over Bed: 43.30″ Max Turning Diameter: 39.37″ Max Turning Length: 27.55″ Spindle Speed: 1200 RPM Spindle Taper: BT50 Spindle Nose: A2-15 Chuck Diameter: 40″ X Axis: 30.11″ Z Axis: 31.49″ Turret: 12 Stations Machine Weight: 37,500 LBS EQUIPPED WITH: Fanuc Oi-TD Control Auto Strong V-240 40″ (3) Jaw Chuck Live Tool 12 Position ATC Stainless Steel Way Covers RJ-45 interface Heat exchanger for electric cabinet 10.4″ Colored LCD monitor Hydraulic power supply unit Lubrication system 4-bar coolant system Three-color warning light hydraulic chuck & cylinder Single chain type chip conveyor + chip cart Tool kit Under 1000 Hours ACCUWAY UV100 VTL with Milling SPECIFICATIONS: CHUCK / TABLE DIA 40″ SWING 43.3″ MAXIMUM CUTTING DIAMETER 39.3 in MAXIMUM TURNING LENGTH 27.5 in VERTICAL TRAVEL X 30.1 in HORIZONTAL TRAVEL Z 31.3 in RPM 1,200 RPM POWER 37 kW CONTROL CNC (Fanuc Oi-TD Control) DIMENSIONS 138″ x 94″ x 160″ WEIGHT 37500 Swing Over Bed: 43.30″ Max Turning Diameter: 39.37″ Max Turning Length: 27.55″ Spindle Speed: 1200 RPM Spindle Taper: BT50 Spindle Nose: A2-15 Chuck Diameter: 40″ X Axis: 30.11″ Z Axis: 31.49″ Turret: 12 Stations Machine Weight: 37,500 LBS EQUIPPED WITH: Fanuc Oi-TD Control Auto Strong V-240 40″ (3) Jaw Chuck Live Tool 12 Position ATC Stainless Steel Way Covers RJ-45 interface Heat exchanger for electric cabinet 10.4″ Colored LCD monitor Hydraulic power supply unit Lubrication system 4-bar coolant system Three-color warning light hydraulic chuck & cylinder Single chain type chip conveyor + chip cart Tool kit Under 1000 Hours
