1512 Hours, 4×4, Box Blade, 4 in 1 Bucket

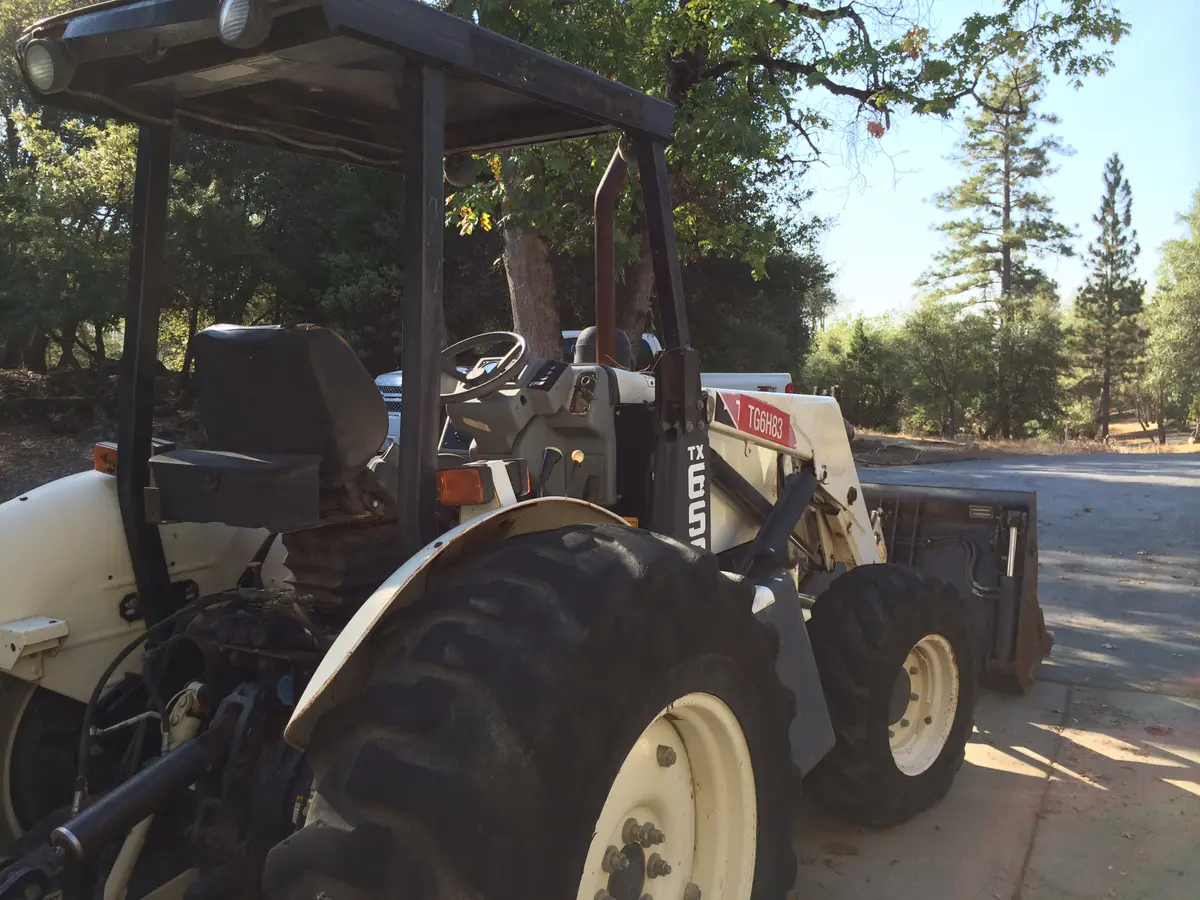

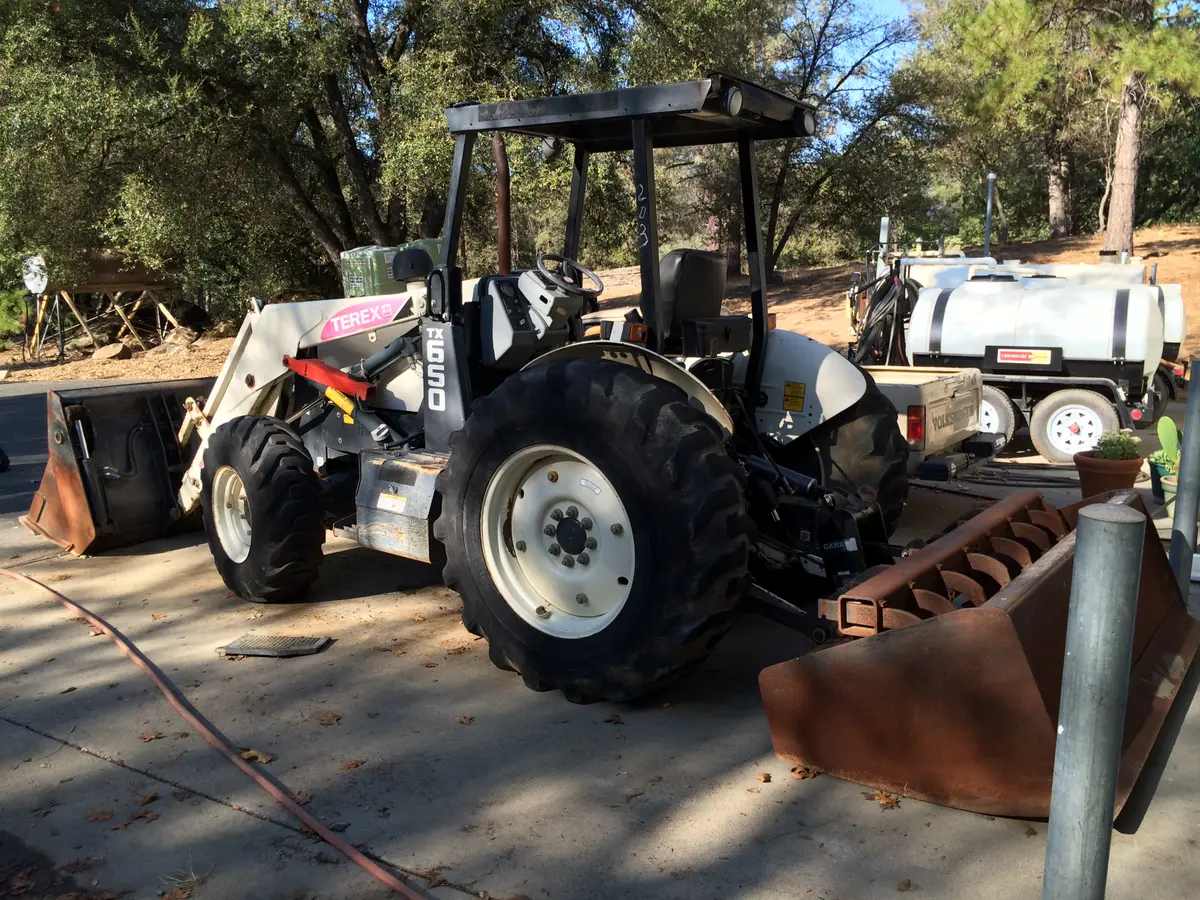

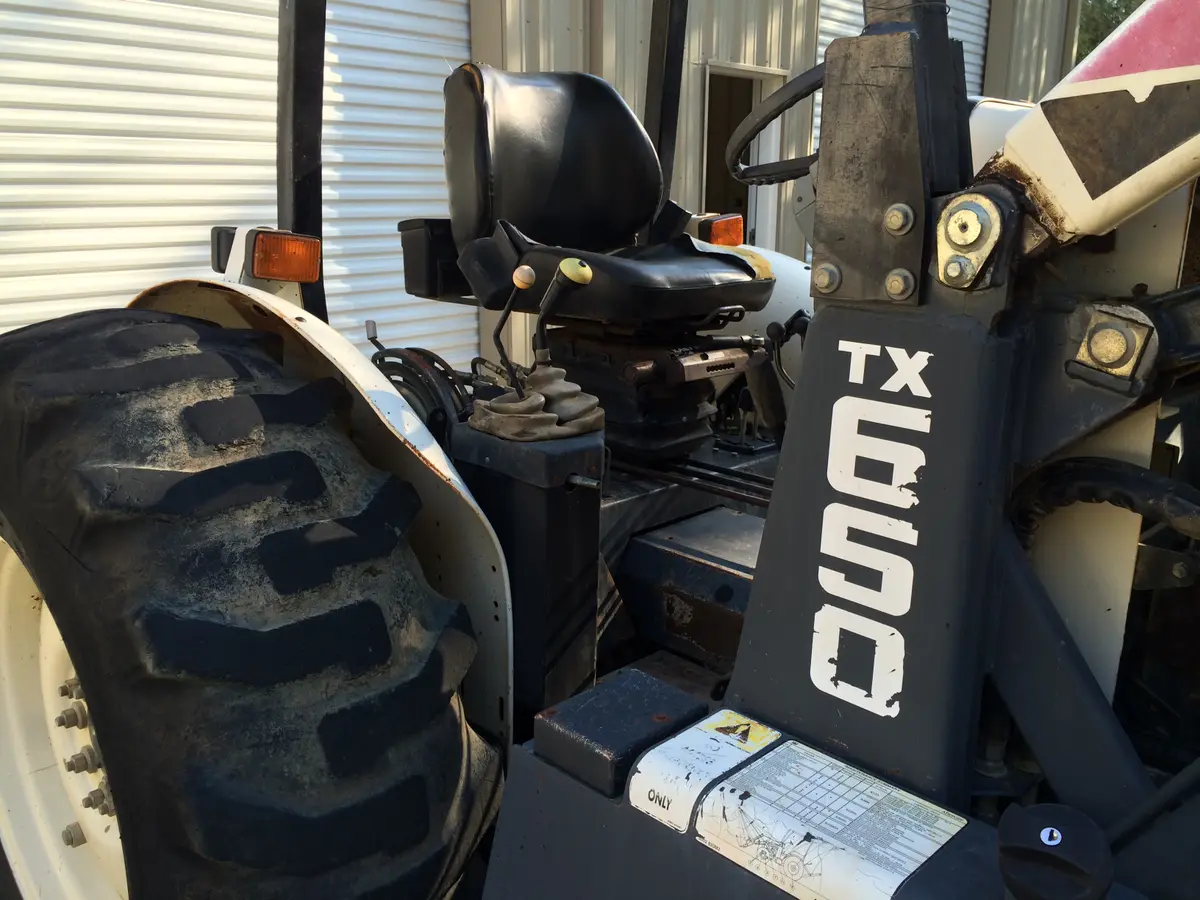

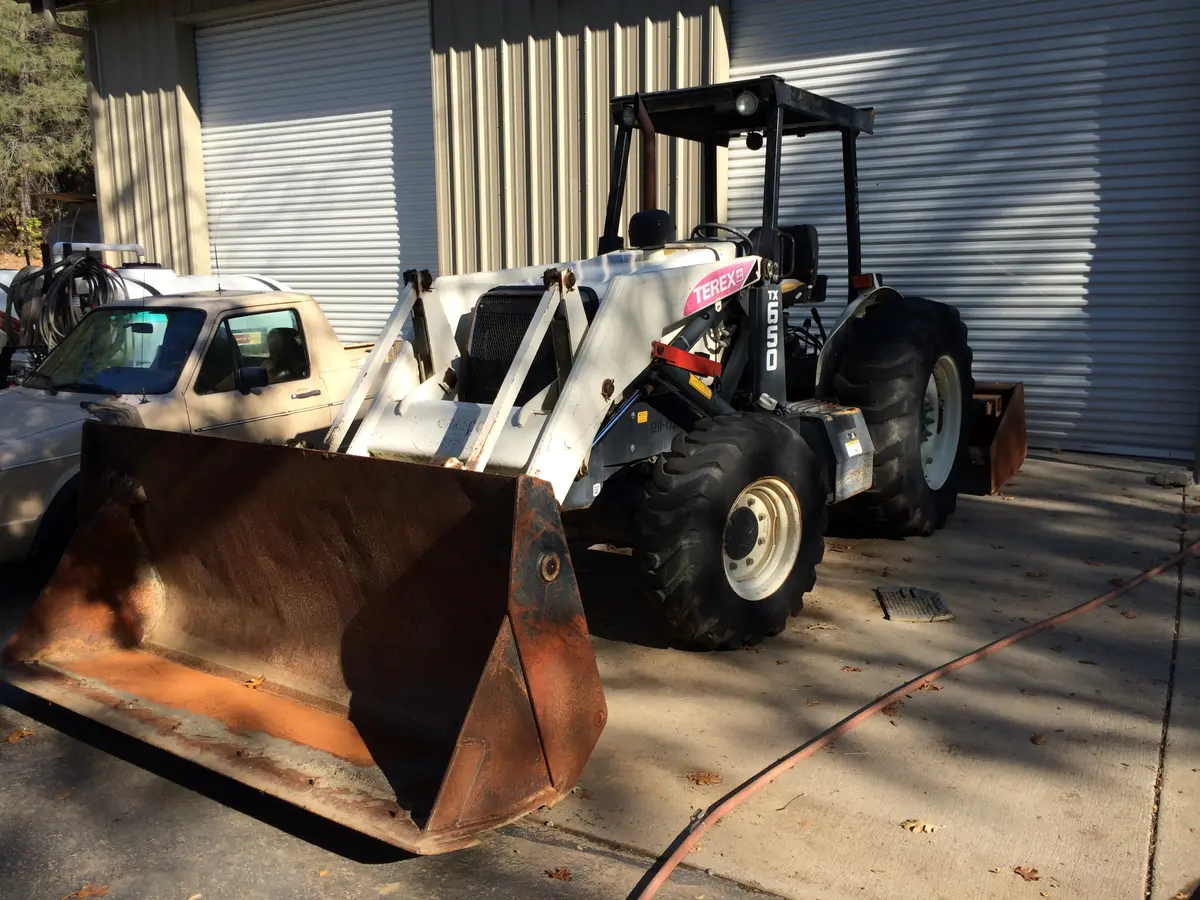

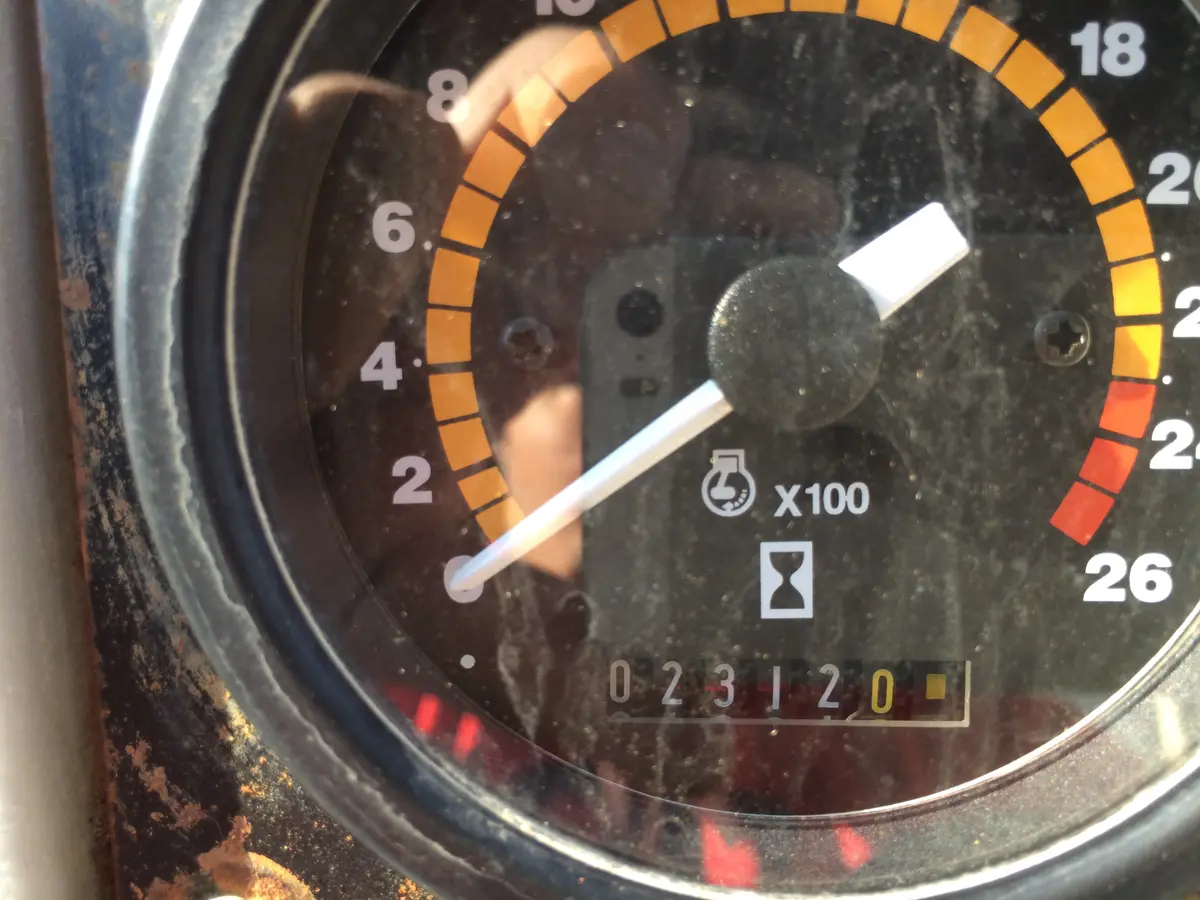

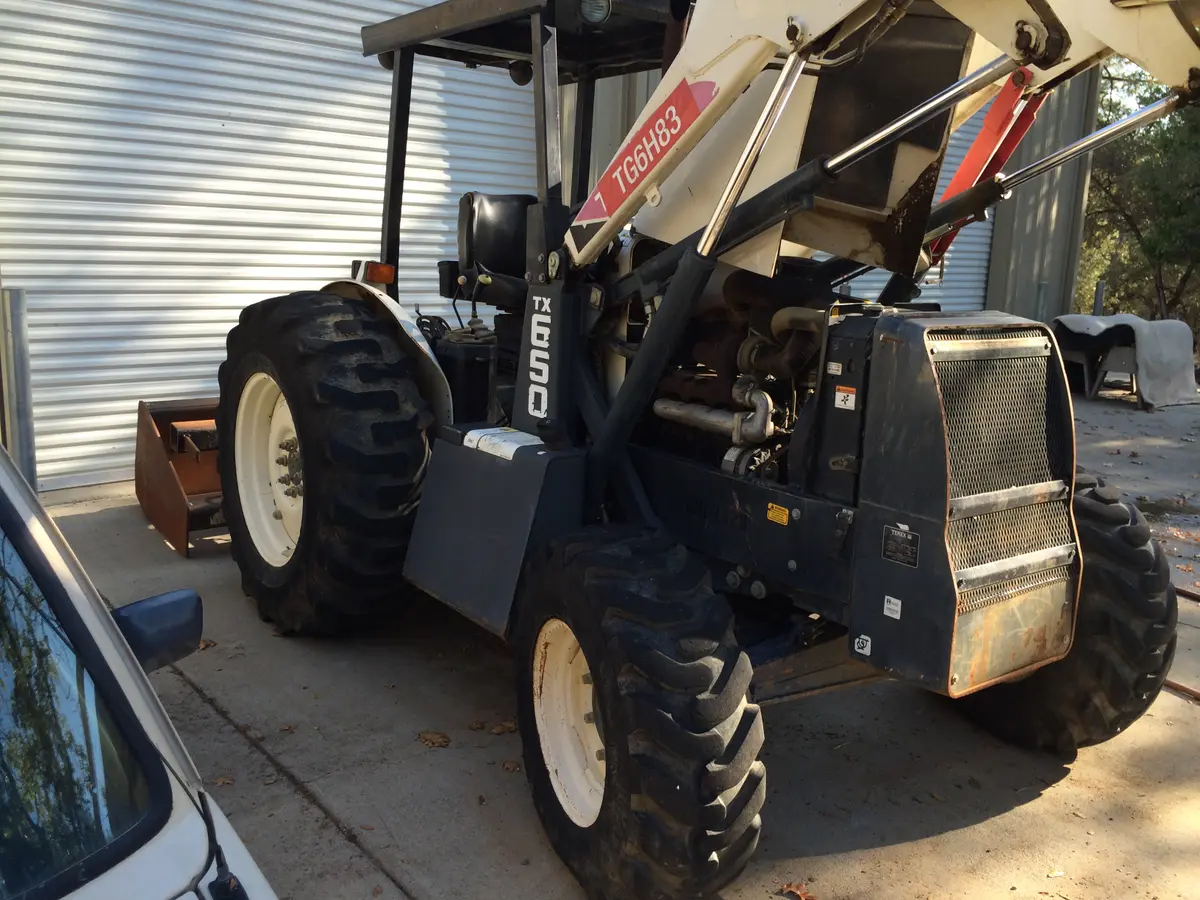

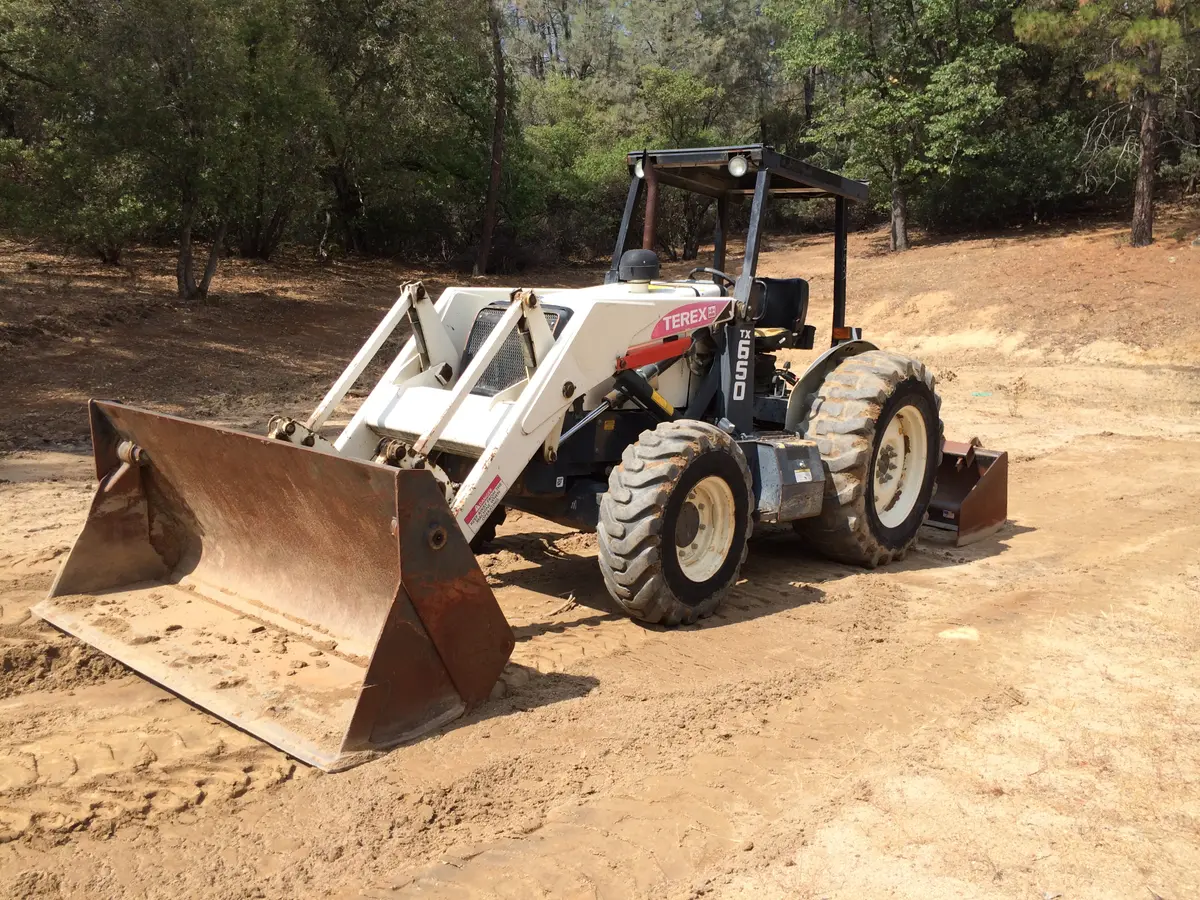

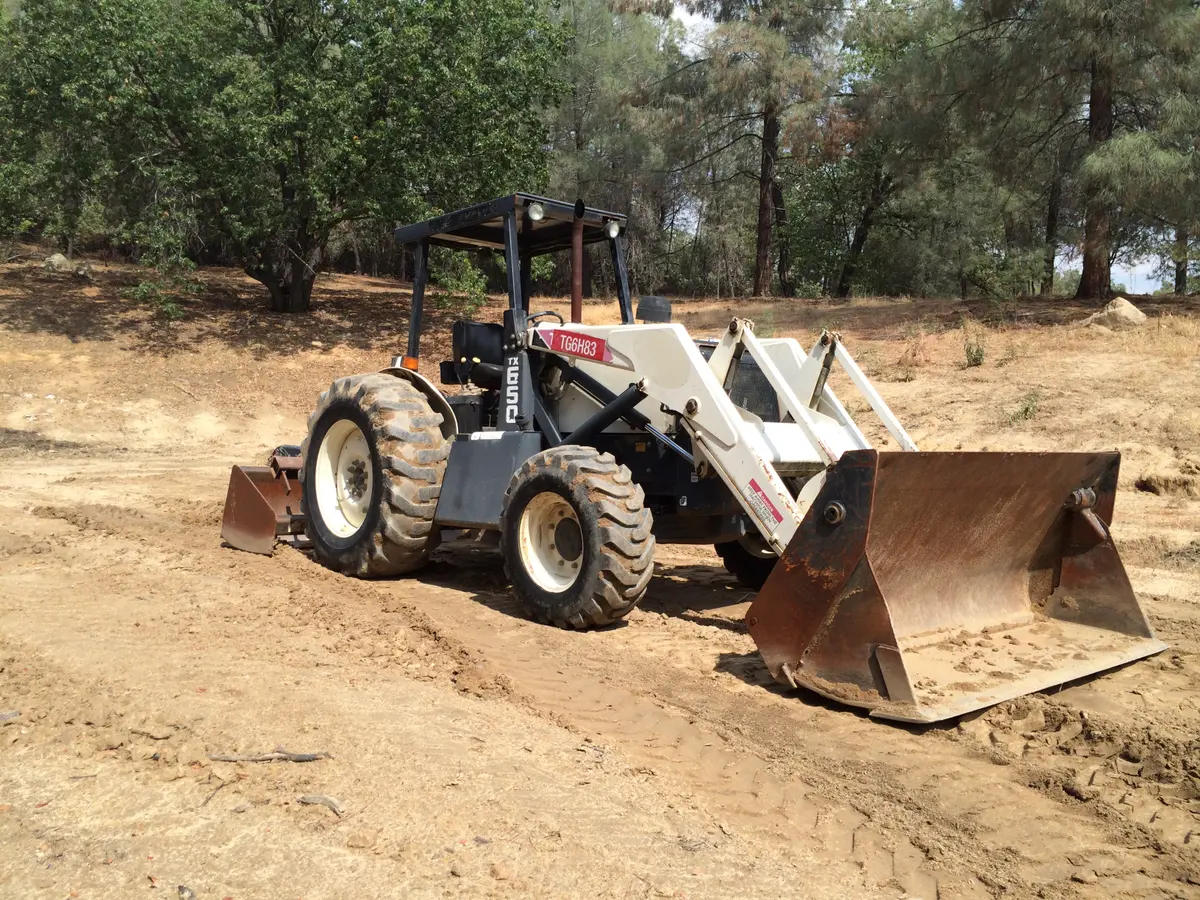

2003 TEREX TX650 SKIP LOADER/LANDSCAPE LOADER MP BUCKET GANNON BOX WITH RIPPERS, PTO, 3900 ORIGINAL HOURS 4X4 PERKINS TURBO DIESEL ENGINE 4X4 FRONT TIRES ARE NEW REAR TIRES 30% JUST FULLY SERVICED AND GREASED SHUTTLE TRANSMISSION CUTTING EDGES IN GOOD SHAPE.
$18,900
Year 03
Make Terex
Model TX650
Net Horsepower 77 HP
Operating Weight 12,914 lbs
Transport Dimensions 237″ L x 85″ W x 96″ H

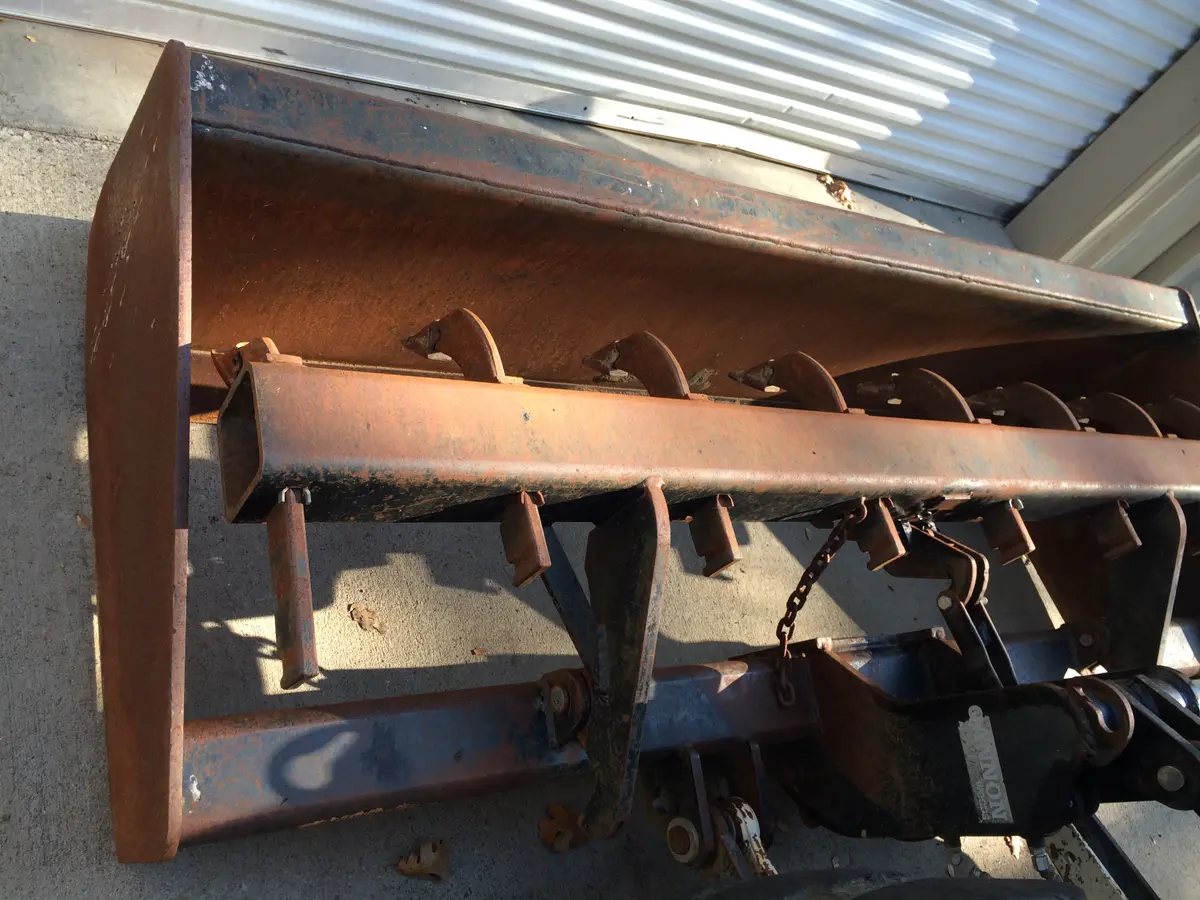

85″ Gannon Box Scraper with Hydraulic Scarifies
Model H914 Box Scraper
Teeth 8

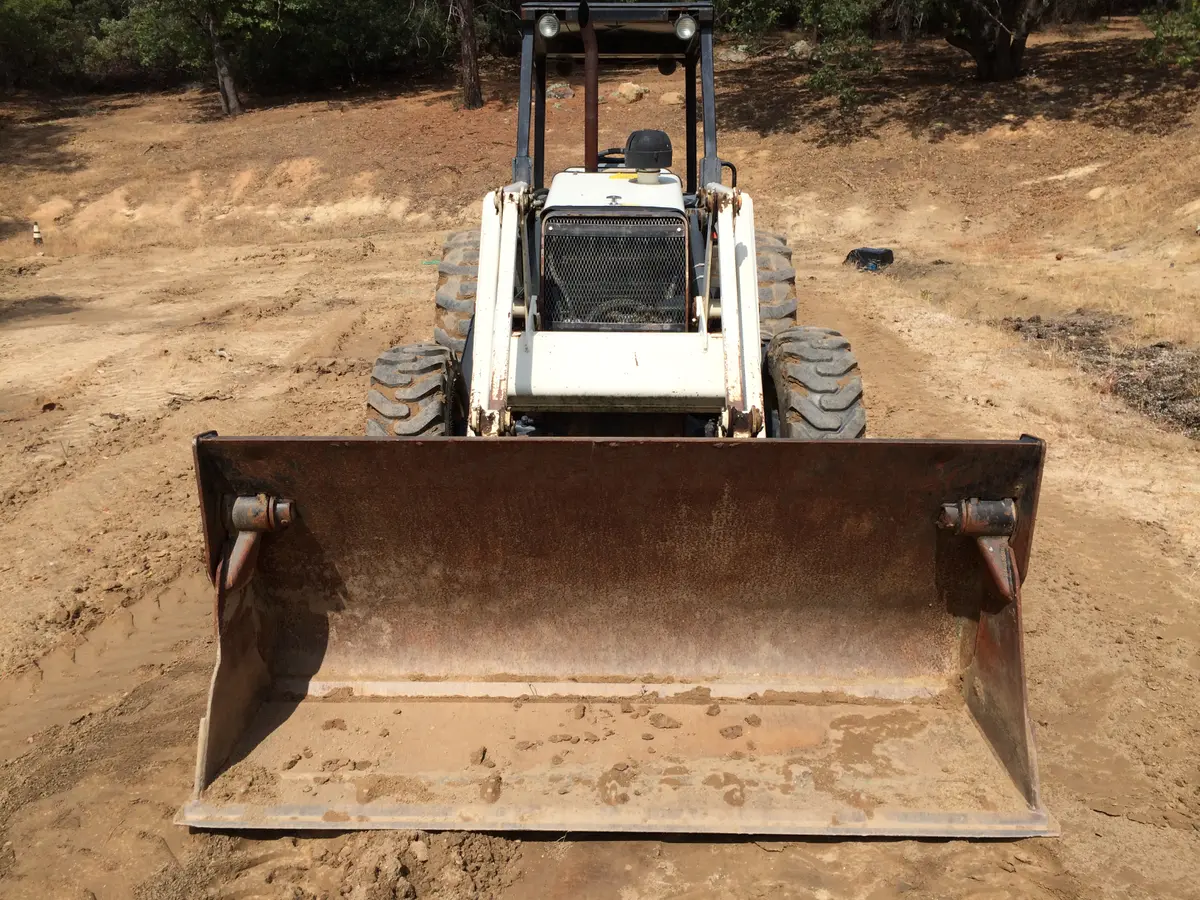

84″ 4 N 1 Bucket
Differential Lock
Four Speed Transmission
Four wheel drive
Two Speed PTO
Breakout Force 8,838 lbs
Lift Capacity (full height): 5,510 lbs
Loader Dump Height 8′ 7″
Reach at Full Height 2′ 4″
Pneumatic, 12.5R18 Front and 16.9R28 Rear

2006 DEERE 210LE SKIP LOADER, 4X4, ONLY 1500 ORIGINAL HOURS, OROPS, ESTICK, NEW REAR TIRES,(NOT IN PICTURE) MP BUCKET,(4 IN ONE) GANNON SCRAPER BOX WITH 3 POINT HITCH, JUST SERVICED AND READY TO GO TO WORK! COME DEMO IT IN OUR YARD.
SELECTED DIMENSIONS
Bucket
G. Dump Clearance at Max Raise 8.4 ft in 2560 mm
Dimensions
A. Length with Bucket on Ground 17.2 ft in 5230 mm
B. Width Over Tires ft in mm
C. Height to Top of Cab 8.1 ft in 2479 mm
D. Wheelbase 6.9 ft in 2116 mm
E. Ground Clearance 0.94 ft in 287 mm
F. Hinge Pin – Max Height 11.4 ft in 3470 mm
H. Reach at Max Lift and Dump 2.9 ft in 875 mm
SPECIFICATION
Engine
Make John Deere
Model 4045D
Net Power 73 hp 54.4 kw
Gross Power 78 hp 58.2 kw
Displacement 276 cu in 4.5 L
Max Torque 220 lb ft 298.3 Nm
Number of Cylinders 4
Torque Rise 26 %
Aspiration Natural
Operational
Operating Weight 9129.3 lb 4141 kg
Fuel Capacity 25.9 gal 98 L
Hydrauilc System Fluid Capacity 14.4 gal 54.5 L
Engine Oil Fluid Capacity 2.2 gal 8.5 L
Cooling System Fluid Capacity 4.2 gal 16 L
Front Axle/Diff Fluid Capacity gal L
Rear Axle/Diff Fluid Capacity 3.4 gal 13 L
Static Tipping Weight lb kg
Turning Radius ft in mm
Operating Voltage V
Alternator Supplied Amperage amps
Rear Axle Oscillation 22 degrees
Tire Size Front 12-16.5 8PR NHS Rear 16.9-24 8PR R4
Transmission
Type synchronized
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 20.5 mph 33 km/h
Max Speed – Reverse 20.5 mph 33 km/h
Hydraulic System
Pump Type Gear
Relief Valve Pressure 2750 psi 18960.6 kPa
Pump Flow Capacity 25 gal/min 94.6 L/min
Raise Time 5.2 sec
Dump Time 1.5 sec
Lower Time 2.4 sec
Bucket
Breakout Force 7900 lb 35.1 kN
Dump Clearance at Max Raise 8.4 ft in 2560 mm
Bucket Width 7.2 ft in 2180 mm
Bucket Capacity – heaped 1 yd3 0.76 m3
Bucket Capacity – struck yd3 m3
Dimensions
Length with Bucket on Ground 17.2 ft in 5230 mm
Width Over Tires ft in mm
Height to Top of Cab 8.1 ft in 2479 mm
Ground Clearance 0.94 ft in 287 mm
Wheelbase 6.9 ft in 2116 mm
Hinge Pin – Max Height 11.4 ft in 3470 mm
Reach at Max Lift and Dump 2.9 ft in 875 mm
