1512 Hours, 4×4, Box Blade, 4 in 1 Bucket

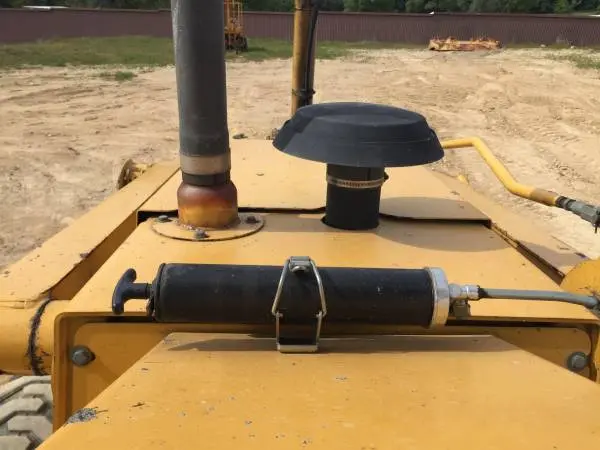

2006 DEERE 210LE SKIP LOADER, 4X4, ONLY 1500 ORIGINAL HOURS, OROPS, ESTICK, NEW REAR TIRES,(NOT IN PICTURE) MP BUCKET,(4 IN ONE) GANNON SCRAPER BOX WITH 3 POINT HITCH, JUST SERVICED AND READY TO GO TO WORK! COME DEMO IT IN OUR YARD.
SELECTED DIMENSIONS
Bucket
G. Dump Clearance at Max Raise 8.4 ft in 2560 mm
Dimensions
A. Length with Bucket on Ground 17.2 ft in 5230 mm
B. Width Over Tires ft in mm
C. Height to Top of Cab 8.1 ft in 2479 mm
D. Wheelbase 6.9 ft in 2116 mm
E. Ground Clearance 0.94 ft in 287 mm
F. Hinge Pin – Max Height 11.4 ft in 3470 mm
H. Reach at Max Lift and Dump 2.9 ft in 875 mm
SPECIFICATION
Engine
Make John Deere
Model 4045D
Net Power 73 hp 54.4 kw
Gross Power 78 hp 58.2 kw
Displacement 276 cu in 4.5 L
Max Torque 220 lb ft 298.3 Nm
Number of Cylinders 4
Torque Rise 26 %
Aspiration Natural
Operational
Operating Weight 9129.3 lb 4141 kg
Fuel Capacity 25.9 gal 98 L
Hydrauilc System Fluid Capacity 14.4 gal 54.5 L
Engine Oil Fluid Capacity 2.2 gal 8.5 L
Cooling System Fluid Capacity 4.2 gal 16 L
Front Axle/Diff Fluid Capacity gal L
Rear Axle/Diff Fluid Capacity 3.4 gal 13 L
Static Tipping Weight lb kg
Turning Radius ft in mm
Operating Voltage V
Alternator Supplied Amperage amps
Rear Axle Oscillation 22 degrees
Tire Size Front 12-16.5 8PR NHS Rear 16.9-24 8PR R4
Transmission
Type synchronized
Number of Forward Gears 4
Number of Reverse Gears 4
Max Speed – Forward 20.5 mph 33 km/h
Max Speed – Reverse 20.5 mph 33 km/h
Hydraulic System
Pump Type Gear
Relief Valve Pressure 2750 psi 18960.6 kPa
Pump Flow Capacity 25 gal/min 94.6 L/min
Raise Time 5.2 sec
Dump Time 1.5 sec
Lower Time 2.4 sec
Bucket
Breakout Force 7900 lb 35.1 kN
Dump Clearance at Max Raise 8.4 ft in 2560 mm
Bucket Width 7.2 ft in 2180 mm
Bucket Capacity – heaped 1 yd3 0.76 m3
Bucket Capacity – struck yd3 m3
Dimensions
Length with Bucket on Ground 17.2 ft in 5230 mm
Width Over Tires ft in mm
Height to Top of Cab 8.1 ft in 2479 mm
Ground Clearance 0.94 ft in 287 mm
Wheelbase 6.9 ft in 2116 mm
Hinge Pin – Max Height 11.4 ft in 3470 mm
Reach at Max Lift and Dump 2.9 ft in 875 mm

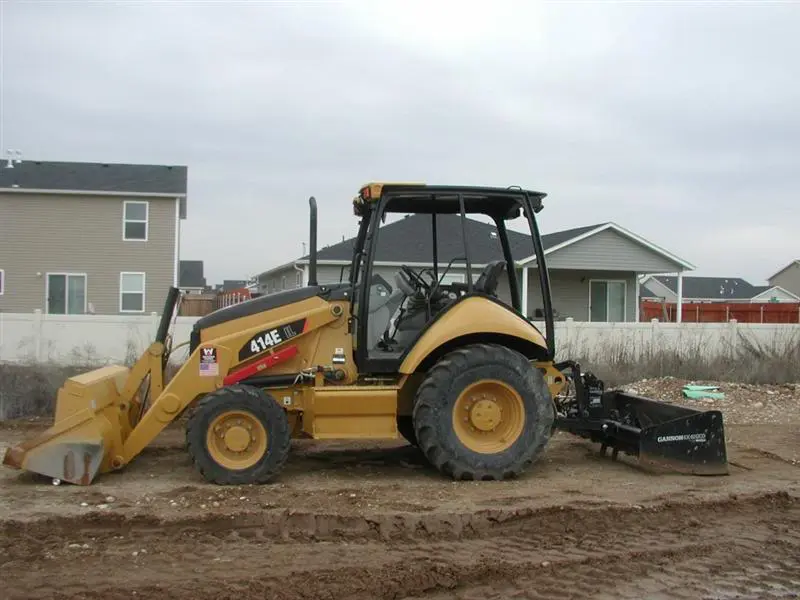

2008 Caterpillar 414E
GANNON BOX WITH RIPPERS, OROPS, 4X4, E-STICK, GOOD TIRES, ENGINE 3054C, ONLY 1700HRS, CAT MAINTAINED, MAINTENANCE RECORDS AVAILABLE.
Hours: 1700
Price: $48000
Location: Sacramento, CA
Engine
Engine Model Cat® 3054C DIT
Gross Power – SAE J1995 69 kW 93 hp
Gross Power – ISO 14396 68 kW 92 hp
Net Power – SAE J1349 66 kW 89 hp
Net Power – ISO 9249 67 kW 90 hp
Net Power – EEC 80/1269 67 kW 90 hp
Bore 105 mm 4.13 in
Stroke 127 mm 5 in
Displacement 4.4 L 268 in3
Net Torque Rise @ 1,400 rpm – 27%
Standard
Net Torque Rise @ 1,400 rpm – 37%
Optional
Net Peak Torque @ 1,400 rpm – 296 N•m 219 lb ft
Standard – SAE J1349
Net Peak Torque @ 1,400 rpm – 386 N•m 285 lb ft
Optional – SAE J1349
• The net power ratings apply at 2,200 rpm when tested under
the specified conditions for the specified standard.
• Net power advertised is the power available at the flywheel
when the engine is equipped with fan, air cleaner, muffler
and alternator.
• Based on standard air conditions of 25° C (77° F) and 99 kPa
(29.32 in) in dry barometer.
• Used 35° API gravity fuel having an LHV of 42 780 kJ/kg
(18,390 BTU/lb) when used at 30° C (89° F) (reference a fuel
density of 838.9 g/L [7.001 lb/gal]).
• No derating required up to 2286 m (7,500 ft).
• Net torque rise meets SAE J1349.
• Cat 3054C DIT engine is U.S. EPA Tier 3 Certified.
Tires
Tubeless, nylon, loader-design tires.
Type Size Ply Rating
4WD Bias
Front 12.5/80 18 12
Rear 19.5 24 12
4WD Bias
Front 12.5/80 18 10
Rear 16.9 24 10
