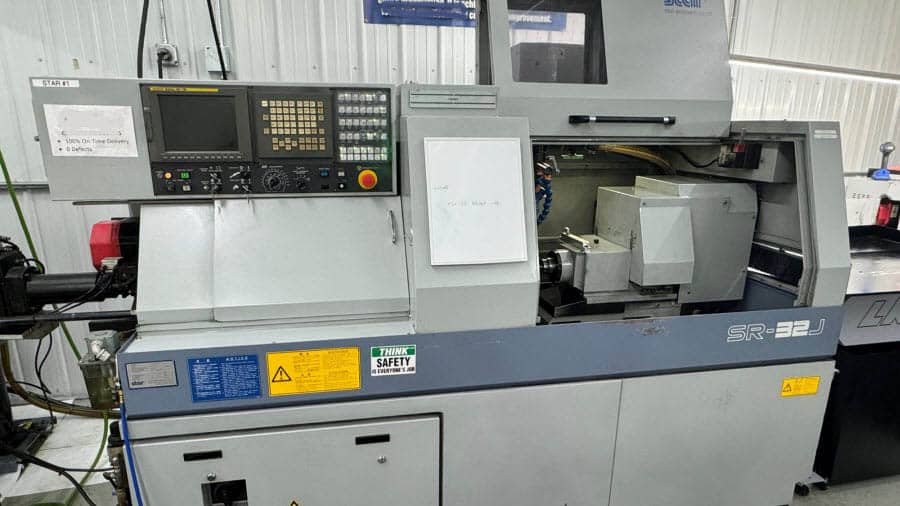

Star SR32J CNC Swiss-Type Lathe

Star SR32J CNC Swiss-Type Lathe Specifications (subject to buyer verification): MACHINING DIAMETER……. 1.25″ MAX DRILLING DIAMETER…. 0.51″ MAX HEADSTOCK STROKE….. 11.03″ MAIN SPINDLE MOTOR……. 10.1 HP MAIN SPINDLE INDEXING…. FULL C-AXIS MAIN SPINDLE SPEED……. 7,000 RPM BACK SPINDLE MOTOR……. 5 HP BACK SPINDLE INDEXING…. FULL C-AXIS BACK SPINDLE SPEED……. 7,000 RPM LIVE TOOL SPEEDS……… 5,000 RPM RAPID TRAVERSE……….. 944.9 IN/MIN. Equipped With (subject to buyer verification): FANUC Series 18-TB CNC CONTROL Low Profile LNS Chip Conveyor Parts Catcher with Exit Conveyor High Pressure System (Oil)

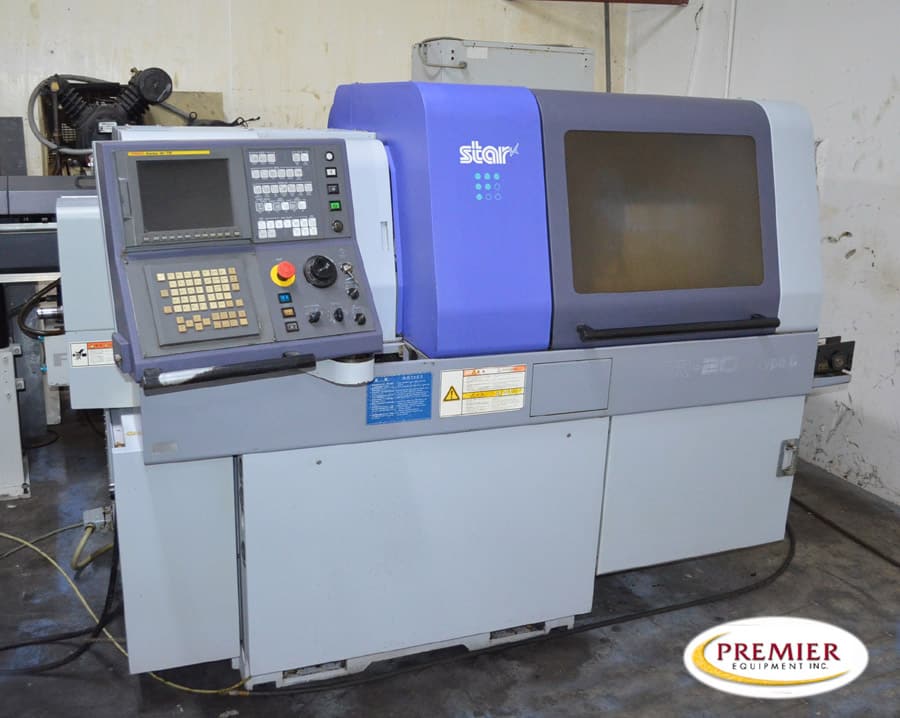

Star SR20J Type C CNC Swiss-Type Lathe Specifications (subject to buyer verification): Max. machining diameterø20mm (.781”) Max. headstock stroke Standard 205mm (8”) Max Headstock Stroke with RMGBUnit 172 mm (6.77”) Tool Number of tools 6 tools (□12mm) 4-spindle sleeve holder Number of tools Front : 4 tools / Rear : 4 tools Max.drilling capability 10mm(25/64in) Max.tapping capability M8×P1.25 2-spindle front sleeve holder Number of tools 2 Max.drilling capability 8mm Max Depth of Hole 100mm Power Driven Attachment Number of tools Cross Milling 3 Tools / Cartride Type: At 2 Position Max.drilling capability 8mm(5/16in) Max Tapping Capability M6 x P1.0 Spindle Speed Max 8000 RPM Motor 1.2 kw (1.5 HP) Rapid Feed Rate 1377 IPM / 35m/min (*X, Y, Z, XB, ZB) 190,000 Deg/min © Main Spindle Indexing Angle C-Axis Control Main Spindle Speed Max 10,000 RPM Main Spindle Motor 3HP (continouous) / 5 HP (15 min/60%ED) Dimensions (W×D×H) 88″ x 47″ x 67″ (2,250×1,200×1,700mm) Weight 2,200kg (4,850 lbs) Backworking Attachment Max.chucking diameter ø20mm(25/32in) Max.length for front ejection 80mm(3-5/32in) Max.work projection length 30mm(1-3/16in) Back 4-Spindle Unit Number of tools 4 tools Max.drilling capability – Stationary tool: ø8mm(5/16in) Max.drilling capability Powe Driven Tool: ø5mm(3/16in) Max.tapping capabilityStationary tool: M8×P1.25 Max.tapping capability Power-driven tool: M4×P0.7 Power Driven Attachment Spindle Speed 8000 RPM Power Driven Attachment Drive Motor .5 kw Sub spindle indexing angle C-axis control Sub spindle speed max.8,000 RPM Sub spindle motor1.5kw(Continuous) / /2.2kw(15min./50%ED) All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity. Equipped With (subject to buyer verification): Fanuc Series 18i-TB CNC Control Parts Catcher with Exit Conveyor Fire System Pressure Switch Edge Technologies FMB Turbo 2-20 / 3800 Barfeed

Star SR20J Type C CNC Swiss-Type Lathe Specifications (subject to buyer verification): Max. machining diameterø20mm (.781”) Max. headstock stroke Standard 205mm (8”) Max Headstock Stroke with RMGBUnit 172 mm (6.77”) Tool Number of tools 6 tools (□12mm) 4-spindle sleeve holder Number of tools Front : 4 tools / Rear : 4 tools Max.drilling capability 10mm(25/64in) Max.tapping capability M8×P1.25 2-spindle front sleeve holder Number of tools 2 Max.drilling capability 8mm Max Depth of Hole 100mm Power Driven Attachment Number of tools Cross Milling 3 Tools / Cartride Type: At 2 Position Max.drilling capability 8mm(5/16in) Max Tapping Capability M6 x P1.0 Spindle Speed Max 8000 RPM Motor 1.2 kw (1.5 HP) Rapid Feed Rate 1377 IPM / 35m/min (*X, Y, Z, XB, ZB) 190,000 Deg/min © Main Spindle Indexing Angle C-Axis Control Main Spindle Speed Max 10,000 RPM Main Spindle Motor 3HP (continouous) / 5 HP (15 min/60%ED) Dimensions (W×D×H) 88″ x 47″ x 67″ (2,250×1,200×1,700mm) Weight 2,200kg (4,850 lbs) Backworking Attachment Max.chucking diameter ø20mm(25/32in) Max.length for front ejection 80mm(3-5/32in) Max.work projection length 30mm(1-3/16in) Back 4-Spindle Unit Number of tools 4 tools Max.drilling capability – Stationary tool: ø8mm(5/16in) Max.drilling capability Powe Driven Tool: ø5mm(3/16in) Max.tapping capabilityStationary tool: M8×P1.25 Max.tapping capability Power-driven tool: M4×P0.7 Power Driven Attachment Spindle Speed 8000 RPM Power Driven Attachment Drive Motor .5 kw Sub spindle indexing angle C-axis control Sub spindle speed max.8,000 RPM Sub spindle motor1.5kw(Continuous) / /2.2kw(15min./50%ED) All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity. Equipped With (subject to buyer verification): Fanuc Series 18i-TB CNC Control Parts Catcher with Exit Conveyor Fire System Pressure Switch Edge Technologies FMB Turbo 2-20 / 3800 Barfeed
