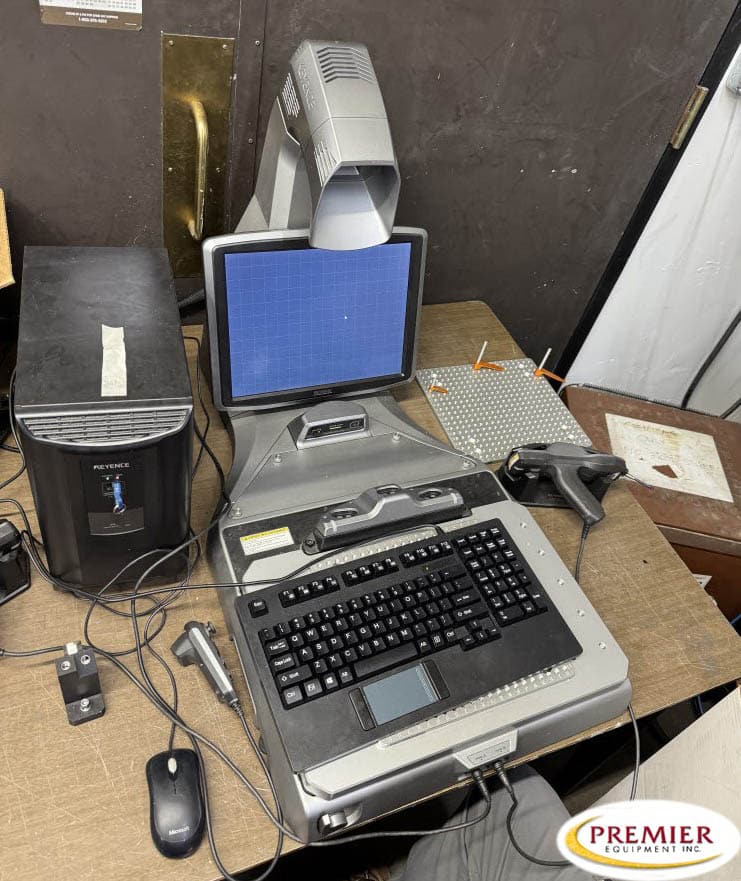

Keyence XM1000 Portable CMM – 2020

Keyence XM1000 Portable CMM – 2020 Specifications (subject to buyer verification): Measuring range: 300 mm × 250 mm × 150 mm 11.81″ × 9.84″ × 5.91″ Min. display unit: Distance 1 µm Angle 0.0001 degrees Measurement accuracy: Repeatability Stage locked: ±3 µm Indication error: Stage locked: ±8 µm*1 Stage: Withstand load – 25 kg Probe: No. of probes: 1 Built-in display: 15″ LCD monitor (1024 × 768) Environmental resistance: Ambient temperature: +10 to +35 °C 50 to 95 °F Relative humidity: 20 to 80 % RH (No condensation) Head: Approx. 28.2 kg (including camera and cable) Console: Approx. 150 g (including cable) Equipped With (subject to buyer verification): Two hand probes probe case two work bed original manual in box

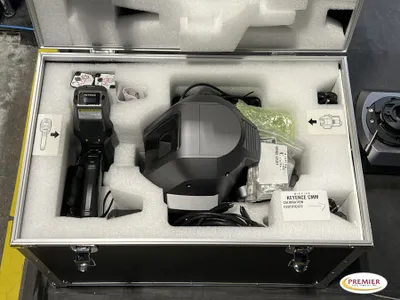

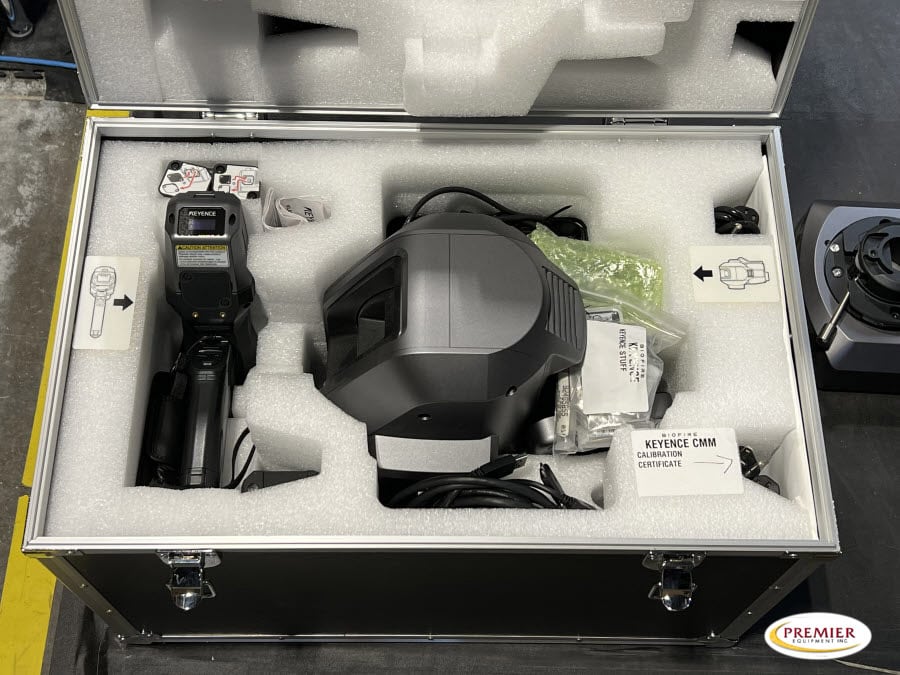

Keyence XM5000 Handheld Probe Coordinate Measuring Machine Specifications (subject to buyer verification): Max Measurement Length WDH: 78.74” x 47.24” x 39.37” (2000 × 1200 × 1000 mm) Indication error accuracy: ±(7 + 9L/1000) μm *1 Repeatability: ±3 μm Minimum display unit Distance: 0.0001 mm 0.000004″ Angle: 0.0001 degrees Camera unit rotation angle Theta rotation: ±40° Tilt rotation: ±25° Weight: 17.64 lb Probe Number of possible connections: 1 Equipped With (subject to buyer verification): CMM Camera, Single Probe XM Support Package Wireless Module 4-Slott Battery Charger M6 Fixture Kit M6 Base Plate 2.5mm Stylus

Keyence XM5000 Handheld Probe Coordinate Measuring Machine Specifications (subject to buyer verification): Max Measurement Length WDH: 78.74” x 47.24” x 39.37” (2000 × 1200 × 1000 mm) Indication error accuracy: ±(7 + 9L/1000) μm *1 Repeatability: ±3 μm Minimum display unit Distance: 0.0001 mm 0.000004″ Angle: 0.0001 degrees Camera unit rotation angle Theta rotation: ±40° Tilt rotation: ±25° Weight: 17.64 lb Probe Number of possible connections: 1 Equipped With (subject to buyer verification): CMM Camera, Single Probe XM Support Package Wireless Module 4-Slott Battery Charger M6 Fixture Kit M6 Base Plate 2.5mm Stylus
