Description: Used Fundex F3500

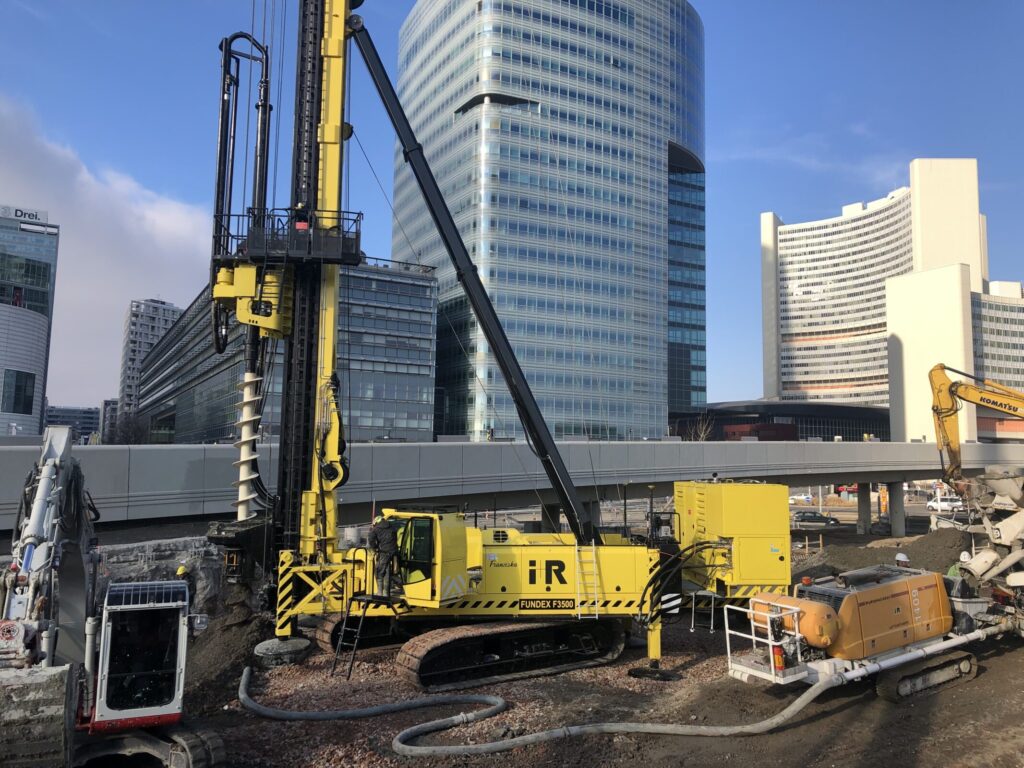

High quality Fundex F3500 drill rig for sale.
With 40 meters leader and 500 kNm of torque this rig is ideal for large CFA and Full Displacement drilling methods.
On top of that rig is equipped with a triple shaft rotary head for deep soil mixing.
Rig is completely overhauled, loke new condition and with very low hours since the overhaul.
See attached document for complete list of items included.

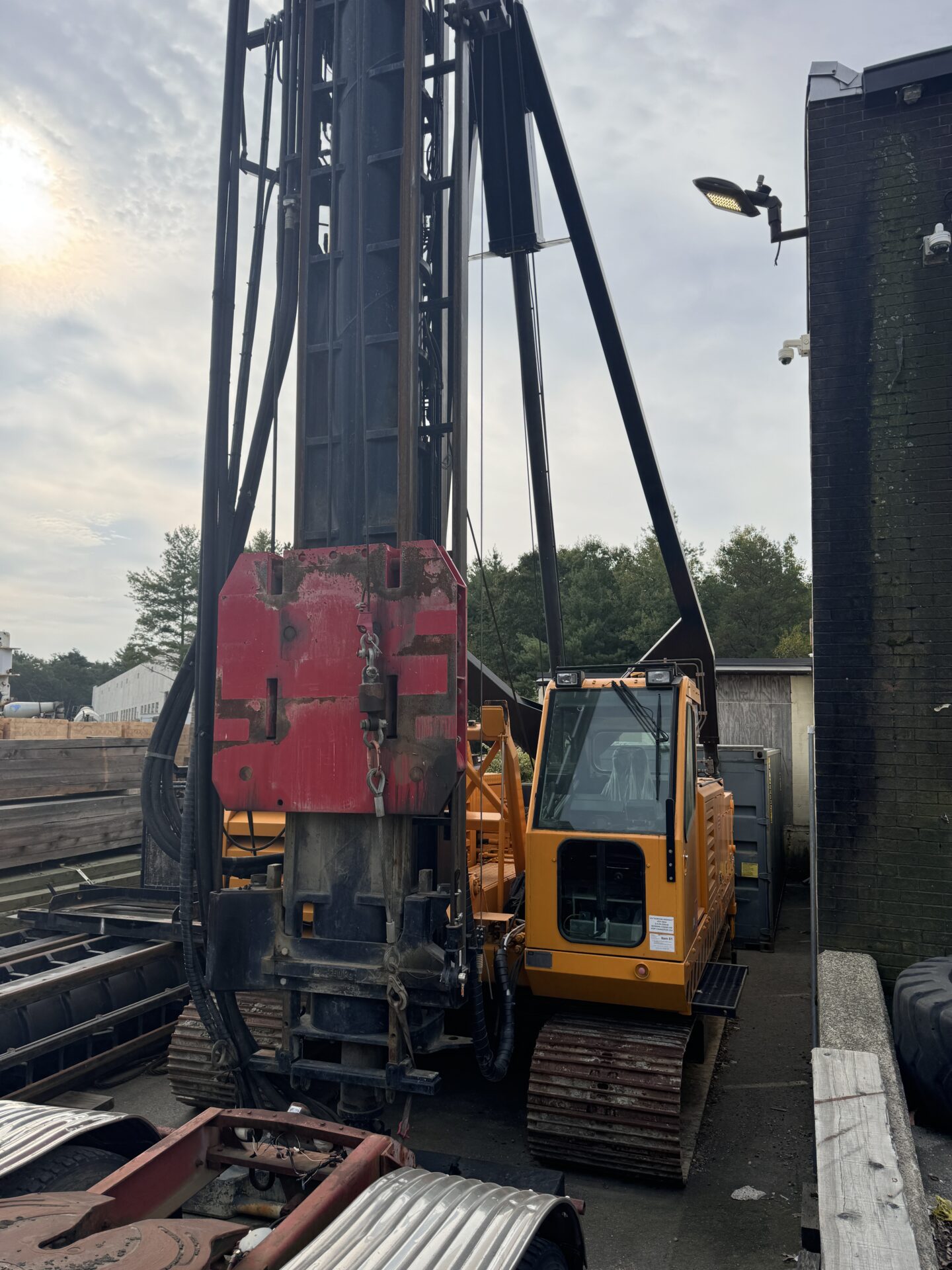

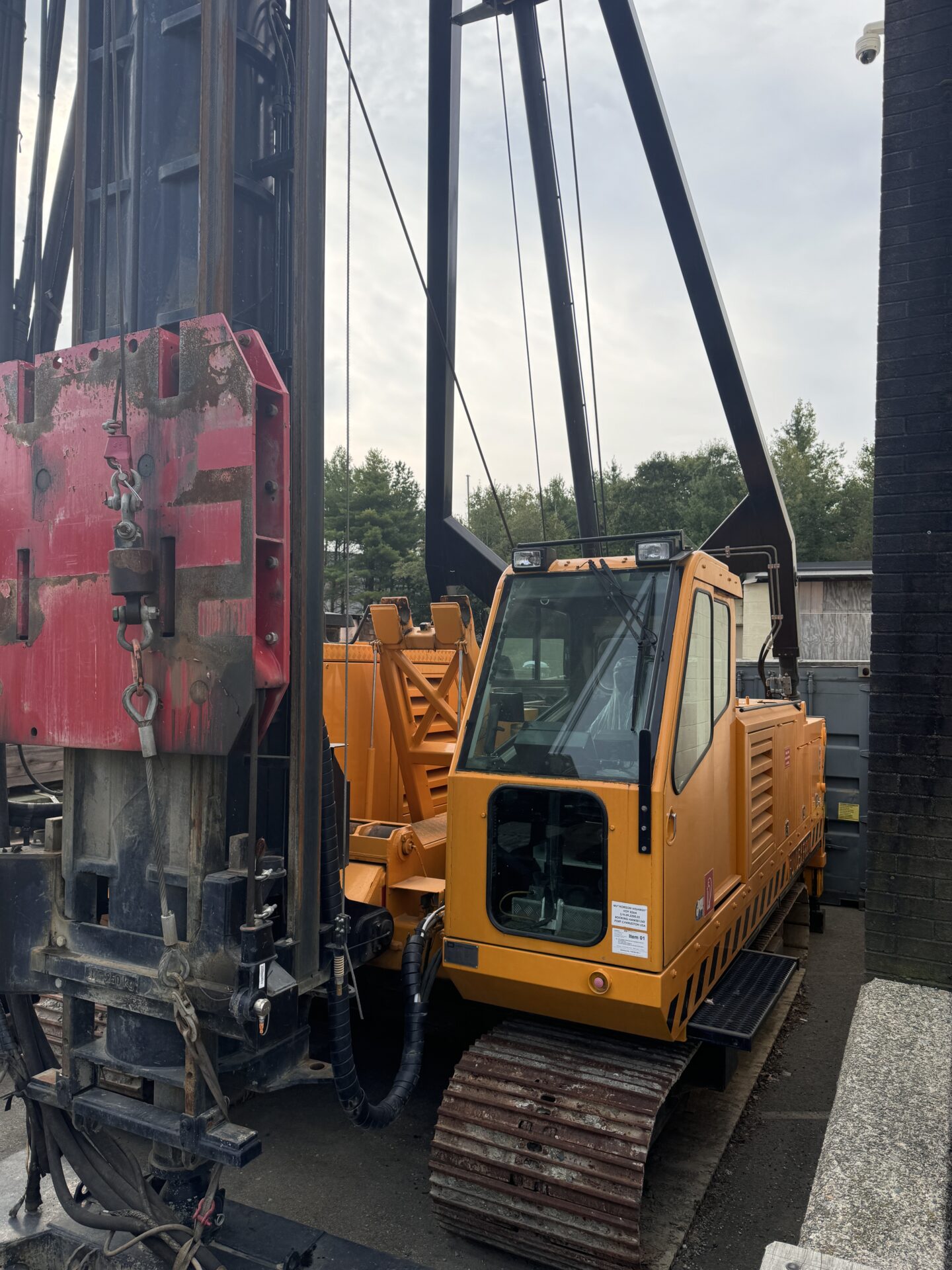

Used Fundex F2200 in excellent condition and low hours. Great machine for Full Displacement Drilling and CFA applications. Easy to move around..

Machine was overhauled and it is only 700 hours since, full engine overhaul

The FUNDEX F3500 is one of the larger models in the range of Fundex Equipment multifunctional foun­dation rigs. The F3500 can be used for various foundation techniques such as double drilling, soil­ mixing, sheet pile push pull system, pile driving and vibratory hammers.

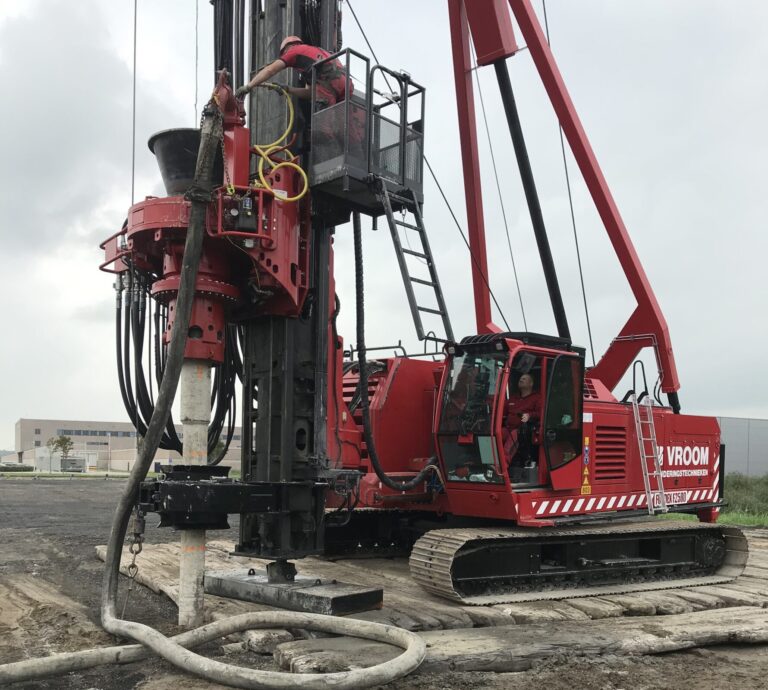

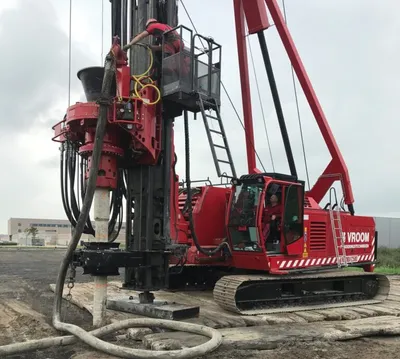

The FUNDEX F2500 is a powerful basic model within the range of Fundex Equipment multifunctional foundation rigs. This versatile rig is designed for various drilling and pile driving techniques, including:

Soil Mixing: Used for blending soil with cement or other materials to enhance its properties.
Sheet Pile Push-Pull System: For installing and extracting sheet piles.
Vibratory Hammers: Employed in pile installation.
Here are some specifications for the FUNDEX F2500:

Max Leader Length: 27 meters.
Max Drilling Depth: 23.5 meters.
Max Drilling Diameter: 1,200 mm.
Max Drilling Torque: 270 kNm.
Max Pull-Up Force: 80 tons.
Max Pull-Down Force: 20 tons.
Engine Power: 405 kW.
