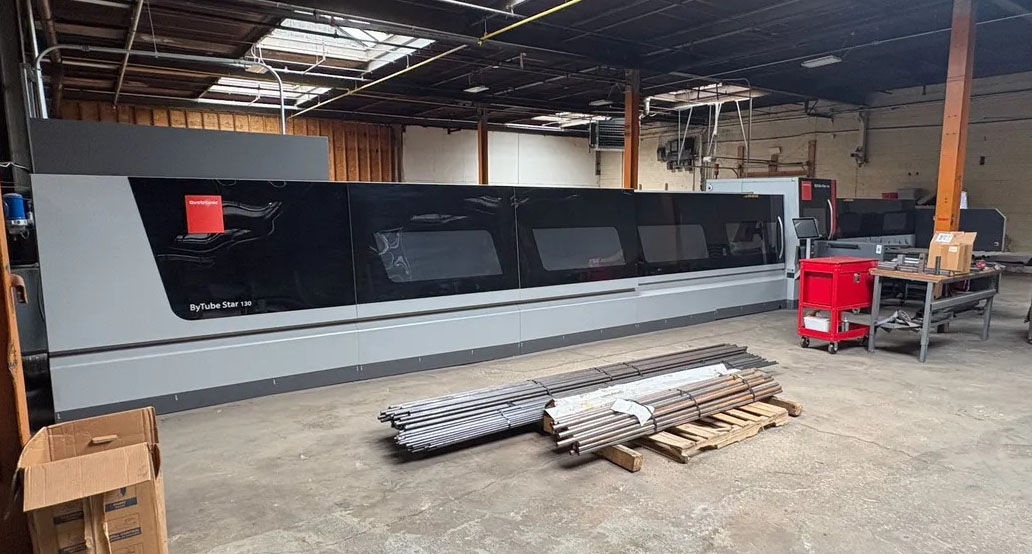

Bystronic ByTube Star 130 Fiber Tube Laser SPECIFICATIONS: Machine Capabilities Loading Capacity of Bundle Loader: 4500 kg Max Tube Weight: 17 kg Z/Y-Axis max. Travel: 108/440mm Z/Y/X-Axis max. Speed: 60/60/200 m/min XC-Axis (Head) max. Travel | Speed: 30mm | 60m/min Max. Rotating Speed of Chucks: 250 U/min Minimum tube length (with automatic loading) 2500 mm Minimum tube length (with manual loading) 140 mm + part length Maximum tube length 6500–8500 mm Maximum tube weight 17 kg/m Profile types O ◻ ▯ ⬭ U C L — Dimensions of round cross-sections (min. – max.) Ø 10–130 mm Dimensions of square cross-sections (min. – max.)* 10 x 10 – 130 x 130 mm Maximum piece length for unloading system 2000 – 4000 – 6100 mm Maximum Cutting Thickness Steel: 15mm Stainless Steel and Aluminum: 8mm Copper and Brass: 6mm Supported Tube Dimensions (Min – Max) Tube Diameter Round Section: 10 – 130mm Tube Dimensions Square Sections: 10 x 10 – 130 x 130mm Tube Dimensions other closed sections: 10 – 130mm Profile Dimensions Angle (L) equal legs: 19 x 19 – 90 x 90mm Profile Dimensions Angle (L) unequal legs: 30 x 20 – 130 x 90mm Profile Dimensions UPN/Channel: 25 x 12 – 127 x 50mm Profile Dimensions UPE: 19 x 19 – 130 x 90mm Profile Dimensions Flat Bars: width 40 – 130mm, thickness 5 – 15mm Special profiles like Window Profiles possible with “Special Profile Package” EQUIPPED WITH: 8.5-meter loading system from Bundle 3kW IPG Laser Source Laserscan – This scans the side of the tube and automatically adjusts hole and feature placements based on bending or twisting of the tube. Optical Weld Seam Detection – This will find the weld seam on the tube to ensure your holes are not cut on the weld seam when it is critical that they are not. Quick Cut – This feature allows the cutting head of the machine to move in the x-axis. Increasing the cutting speed of your machine. It can be run in Quality Mode (cutting head only) or Performance Mode (cutting head and tube moving in sync). Open Sections – This is a software pack that allows you to run open profiles on your machine Scrap and Parts Conveyor Dust Extraction and Filtration System Software update performed in May 2026 **Only 51 Hours**
