TOS WHQ-13 HBM – 2012
TOS WHQ-13 HBM – 2012
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Tos
Model
WHQ-13 HBM
Hours of Usage
-
Year of Manufacture
2012
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Tos
Spindle Diameter
5.1"
Taper
50
Spindle Motor
50 HP
X Axis Travel
197"
Y Axis Travel
118"
Z Axis Travel
39"
W Axis Travel
70"
Indexing
.001 Degree
Atc Stations
40 ATC
Description

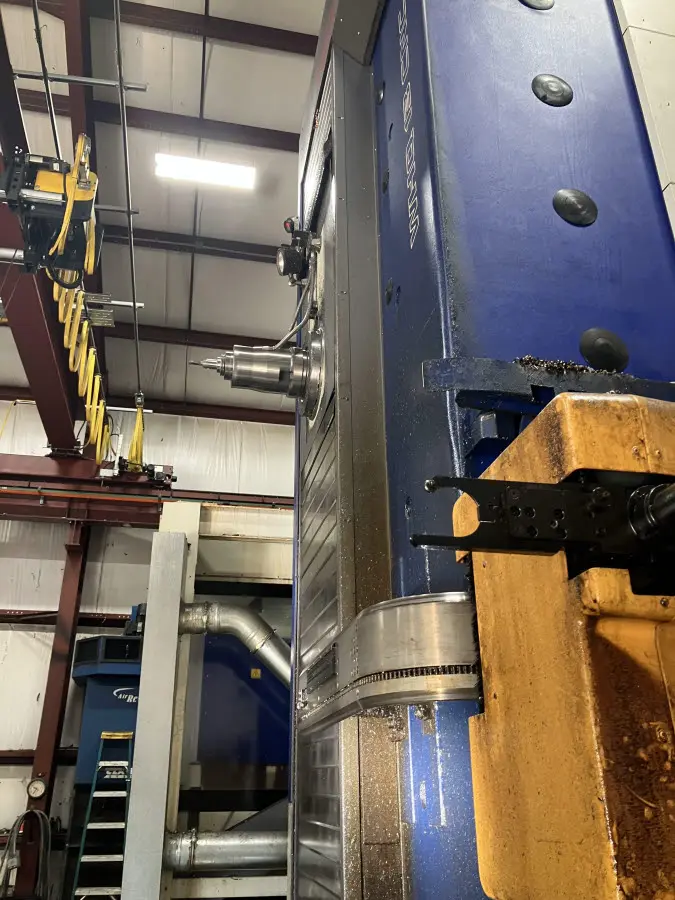

TOS WHQ13 CNC HORIZONTAL BORING MILL WITH HEIDENHAIN i530 CONTROL NEW 2012 Control ……………………..: Heidenhain TNC i530 Spindle Diameter ……………..: 5.1″ Spindle Taper ………………..: #50 Maximum Spindle Speed ………..: 3,000 RPM Spindle Drive Motor …………..: 50 HP Travels X-Axis ……………….: 197″ (5 Meter) Y-Axis (Vertical)………: 118″ (3 Meter) Z-Axis (Spindle) ………: 39″ (1 Meter) W-Axis Column in/out …..: 70″ Table Size …………………..: 71″ x 98″ (Rotary) Maximum Load …………………: 56,000 Lbs. Equipped With: Rotary Table Index: 360,000 Degrees T-Type (Column In/Out) All Hardened Ways Spindle Oil Temp. Compensation Coolant Filter Paper Roll Type Coolant Through Spindle Renishaw Probe Chip Conveyor Auto Lube System Mist Collector Spindle Nose Support 40 ATC Tool Changer Machine Hours: Control on 29,904 Machine on 27,506 Program run 7380 Total Spindle Time 9394
Get in Touch with Seller About This Product
