(SWH Grinding Systems) Mark Model-4880-Double Column CNC Surface Grinder

(SWH Grinding Systems) Mark Model-4880-Double Column CNC Surface Grinder Specifications (subject to buyer verification): Electro-Magnetic Chuck: 23.6” x 39.37” Max Weight on Table (Including Chuck and Workpiece: 9,240 lbs Chuck Weight: 2,775 lbs Spindle Motor: 15HP Center Height: 43” Approx Dia of Wheel: 20” Cross Slideways: Flat Dovetail Type Gibbed Ways Longitudinal Slidewys: Double Vee Ways Cross Movement: Automatic Longitudinal Movement: Hydraulic Vertical Movement: RapidUp/Down Auto Down Feed: AD1 Standard Equipped With (subject to buyer verification): Control Automatic Central Lubrication System All 3 Axes Automatically Operated Electro-Magnetic Chuck 600 x 1000mm x 4 Pieces Computerized Auto Down Feed ADC Auto Dressing & Auto Compensation Spare Flange Spindle Motor Inverter Auto-Paper Strip Filter w/Magnetic Separator

Toyoda GOP32x50 12.6″ x 20″ “PLAIN” CYLINDRICAL GRINDER *** THIS IS A HIGH-PRECISION JAPANESE MADE MACHINE TOOL! *** CAPACITY: MAX. SWING OVER TABLE …………….. 12.6″ DISTANCE BETWEEN CENTERS ………….. 20″ MAX. LOAD BETWEEN CENTERS …………. 330 LBS. TABLE: TABLE SWIVELS, COUNTERCLOCKWISE ……. 12.5 DEG. LONGITUDINAL TABLE TRAVERSE SPEED ….. 2″ TO 157″ IPM MOVEMENT PER TURN OF HANDWHEEL …….. 0.78″ WHEELHEAD: GRINDING WHEEL SIZE ………………. 16″ x 3″ x 5″ WHEEL SPEEDS (2) …………………. 1,570/1,845 RPM TOTAL STROKE …………………….. 7.8″ HANDWHEEL INFEED STROKE …………… 6.3″ AUTOMATIC RAPID INFEED STROKE ……… 1.6″ AUTOMATIC INFEED AT TABLE REVERSALS … 0.0001″ TO .0016″ AUTOMATIC PLUNGE INFEED …………… YES AUTO PLUNGE INFEED W/POSITIVE STOP …. 0 TO .0315″ MOVEMENT PER GRAD. OF HANDWHEEL ……. 0.0001″ MOVEMENT PER TURN OF HANDWHEEL …….. 0.040″ WORKHEAD & TAILSTOCK: WORKHEAD SPINDLE TAPER ……………. #4 MT WORKHEAD, SPINDLE SPEEDS (8) ………. 30 TO 360 RPM SPINDLE BORE …………………….. 1.1″ TAILSTOCK SPINDLE CENTER ………….. #4 MT TAILSTOCK QUILL TRAVEL ……………. 1″ TAILSTOCK, POWER ACTUATED …………. YES APPROX. MACHINE WEIGHT ……………. 5,060 LBS. APPROX. MACHINE DIMENSIONS ………. 84″ x 64″ x 57″H EQUIPPED WITH: TOYODA “STAT” HYDROSTATIC WHEELHEAD BEARINGS GRINDING WHEEL, 16″ x 3″W x 5″B FULLY AUTOMATIC GRINDING CYCLE FEATURING: HYDRAULIC TABLE TRAVERSE AUTOMATIC INFEED AUTOMATIC PLUNGE INFEED POWER RAPID WHEELHEAD ADVANCE & RETRACTION SPARKOUT TIMER ADJUSTABLE TABLE TARRY EXTERNAL HYDRAULIC SYSTEM DUAL LIVE/DEAD WORKHEAD SPINDLE TAILSTOCK, HYDRAULIC POWER ACTUATED EXTERNAL COOLANT TANK, WITH MAGNETIC SEPARATOR ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE) MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

Toyoda GOP32x50 12.6″ x 20″ “PLAIN” CYLINDRICAL GRINDER *** THIS IS A HIGH-PRECISION JAPANESE MADE MACHINE TOOL! *** CAPACITY: MAX. SWING OVER TABLE …………….. 12.6″ DISTANCE BETWEEN CENTERS ………….. 20″ MAX. LOAD BETWEEN CENTERS …………. 330 LBS. TABLE: TABLE SWIVELS, COUNTERCLOCKWISE ……. 12.5 DEG. LONGITUDINAL TABLE TRAVERSE SPEED ….. 2″ TO 157″ IPM MOVEMENT PER TURN OF HANDWHEEL …….. 0.78″ WHEELHEAD: GRINDING WHEEL SIZE ………………. 16″ x 3″ x 5″ WHEEL SPEEDS (2) …………………. 1,570/1,845 RPM TOTAL STROKE …………………….. 7.8″ HANDWHEEL INFEED STROKE …………… 6.3″ AUTOMATIC RAPID INFEED STROKE ……… 1.6″ AUTOMATIC INFEED AT TABLE REVERSALS … 0.0001″ TO .0016″ AUTOMATIC PLUNGE INFEED …………… YES AUTO PLUNGE INFEED W/POSITIVE STOP …. 0 TO .0315″ MOVEMENT PER GRAD. OF HANDWHEEL ……. 0.0001″ MOVEMENT PER TURN OF HANDWHEEL …….. 0.040″ WORKHEAD & TAILSTOCK: WORKHEAD SPINDLE TAPER ……………. #4 MT WORKHEAD, SPINDLE SPEEDS (8) ………. 30 TO 360 RPM SPINDLE BORE …………………….. 1.1″ TAILSTOCK SPINDLE CENTER ………….. #4 MT TAILSTOCK QUILL TRAVEL ……………. 1″ TAILSTOCK, POWER ACTUATED …………. YES APPROX. MACHINE WEIGHT ……………. 5,060 LBS. APPROX. MACHINE DIMENSIONS ………. 84″ x 64″ x 57″H EQUIPPED WITH: TOYODA “STAT” HYDROSTATIC WHEELHEAD BEARINGS GRINDING WHEEL, 16″ x 3″W x 5″B FULLY AUTOMATIC GRINDING CYCLE FEATURING: HYDRAULIC TABLE TRAVERSE AUTOMATIC INFEED AUTOMATIC PLUNGE INFEED POWER RAPID WHEELHEAD ADVANCE & RETRACTION SPARKOUT TIMER ADJUSTABLE TABLE TARRY EXTERNAL HYDRAULIC SYSTEM DUAL LIVE/DEAD WORKHEAD SPINDLE TAILSTOCK, HYDRAULIC POWER ACTUATED EXTERNAL COOLANT TANK, WITH MAGNETIC SEPARATOR ELECTRICAL SYSTEM CONNECTED ON MACHINE (NOT SEPARATE) MOTORS ARE FOR 3/60/220-440 VOLT ELECTRICS MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS

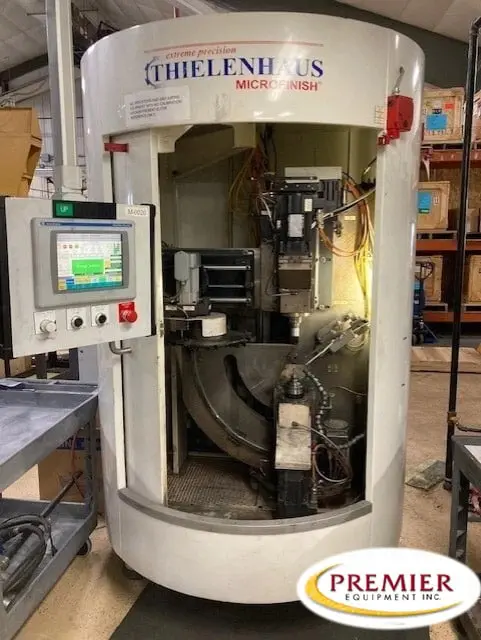

Thielenhaus Microfinish spherical grinder Capacity: 4” dia. Electrics: 440/3/60. Weight: 4500 Machine dimensions 70” Length 80” width 92” height. 480 Volt Allen-Bradley control measuring device and dressing Lots of tooling All Available Manuals

Thielenhaus Microfinish spherical grinder Capacity: 4” dia. Electrics: 440/3/60. Weight: 4500 Machine dimensions 70” Length 80” width 92” height. 480 Volt Allen-Bradley control measuring device and dressing Lots of tooling All Available Manuals
