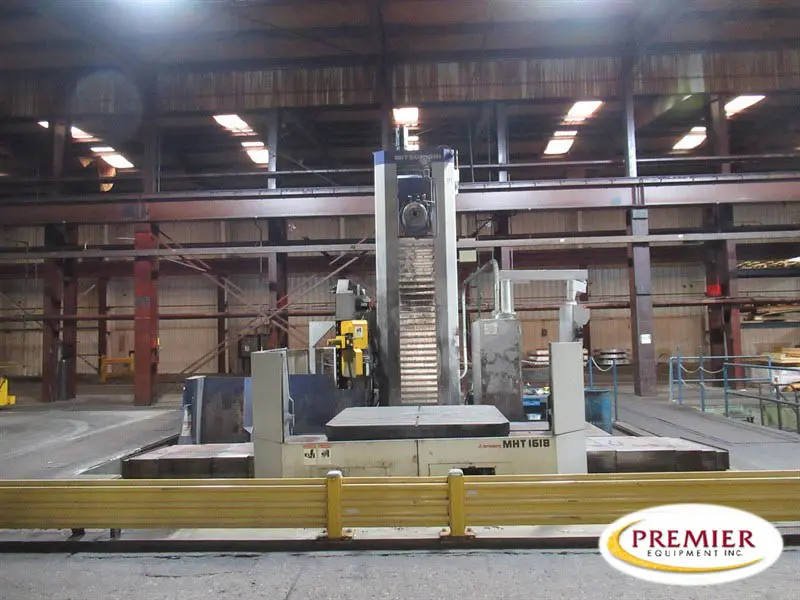

MITSUBISHI M-HT 13/1618 CNC HBM – 2008 (Sold)
MITSUBISHI M-HT 13/1618 CNC HBM – 2008 (Sold)
Category
Boring Mills
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Mitsubishi
Model
M-HT 13/1618
Hours of Usage
-
Year of Manufacture
2008
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Used Cnc Brands
Mitsubishi
Spindle Speed
4000 RPM Spindle Taper 50 Main Motor 50 HP Automatic Tool Changer 80 ATC Tool Diameter 6″, 9.4″ Tool Length 19.7″ Tool Weight 66 LBS Machine Weight 72,000 LBS Equipped with 200 TOTAL PAIRS OF TOOL OFFSETS 48 PAIRS OF ADDITIONAL WORKPIECE CO-ORDINATE SYSTEM CHIP CONVEYOR COOLANT THRU THE SPINDLE EASY CENTERING FUNCTION FANUC 18IM CNC CONTROL FULL WAY COVERS G-COMMAND MIRROR IMAGE: G50.1, G51.1 MP SCALES FOR X, Y, Z AND B AXES PARAMETER CO-ORDINATE SYSTEM ROTATION: G68,G69 PROGRAMMABLE PARAMTER INPUT RENISHAW PROBE SKIP FUNCTION G31 SPINDLE HEAD COOLING UNIT SYNCHRONOUS TAPPING
Weight
66 LBS Machine Weight 72,000 LBS
Control
FANUC 18IM CNC CONTROL FULL WAY COVERS G-COMMAND MIRROR IMAGE: G50.1
Status
Sold
Description
MITSUBISHI MHT 13/1618 CNC HORIZONTAL BORING MILL Specs Table Size 63.1″ X 71″ Table Load Capacity 17,600 LBS. Spindle Diameter 5.1″ X – Axis Travel 118″ Y – Axis Travel 98.4″ Z – Axis Travel 51″ W – Axis Travel 19″ B – Axis Indexing .001 DEGREE Rapid Traverse X, Y, Z, W 472,472,472, 236 IPM0 Spindle Speed 4000 RPM Spindle Taper 50 Main Motor 50 HP Automatic Tool Changer 80 ATC Tool Diameter 6″, 9.4″ Tool Length 19.7″ Tool Weight 66 LBS Machine Weight 72,000 LBS Equipped with 200 TOTAL PAIRS OF TOOL OFFSETS 48 PAIRS OF ADDITIONAL WORKPIECE CO-ORDINATE SYSTEM CHIP CONVEYOR COOLANT THRU THE SPINDLE EASY CENTERING FUNCTION FANUC 18IM CNC CONTROL FULL WAY COVERS G-COMMAND MIRROR IMAGE: G50.1, G51.1 MP SCALES FOR X, Y, Z AND B AXES PARAMETER CO-ORDINATE SYSTEM ROTATION: G68,G69 PROGRAMMABLE PARAMTER INPUT RENISHAW PROBE SKIP FUNCTION G31 SPINDLE HEAD COOLING UNIT SYNCHRONOUS TAPPING
Get in Touch with Seller About This Product
