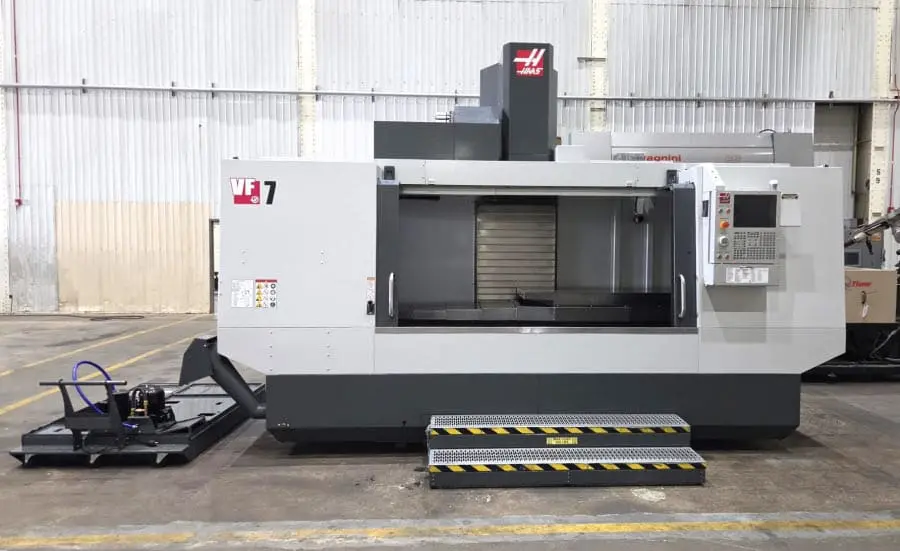

Haas VF-7/40 – 2021 (Sold)
Product Image
Product Image
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Haas
Model
VF-7/40
Hours of Usage
-
Year of Manufacture
2021
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Y Axis Travel
32"
Z Axis Travel
30"
X Axis Travel
84"
Control
Haas
Used Cnc Brands
Haas
Spindle Speed
10,000 RPM
Taper
40
X-Axis Travel
84″
Y-Axis Travel
32″ Z-AXIS TRAVEL 30″
Spindle Nose
TO TABLE 4″-34″ MAX. CUTTING FEEDS 500 IPM RAPIDS ON X, Y, & Z AXIS 600 IPM

Description

Haas VF7/40 CNC Mill SPECIFICATIONS: X-AXIS TRAVEL 84″ Y-AXIS TRAVEL 32″ Z-AXIS TRAVEL 30″ SPINDLE NOSE TO TABLE 4″-34″ MAX. CUTTING FEEDS 500 IPM RAPIDS ON X, Y, & Z AXIS 600 IPM SPINDLE: SPINDLE MOTOR, 2-SPEED GEARBOX 20 HP (OPTION) MAX. SPINDLE SPEED 10,000 RPM (OPTION) MAX TORQUE W/OPT GEARBOX 250 FT-LBF @ 450 RPM DRIVE SYSTEM INLINE DIRECT-DRIVE SPINDLE TAPER CT-40 TABLE: TABLE SIZE 84″ X 28″ MAX WEIGHT ON TABLE 4000 LBS. NUMBER OF STANDARD T-SLOTS 5 T-SLOT WIDTH 0.626″ X 0.630″ T-SLOT CENTER DISTANCE 4.92″ AUTOMATIC TOOL CHANGER: TYPE SIDE-MOUNTED ATC CAPACITY 30 + 1 MAX TOOL DIA. ADJACENT FULL 2.5″ MAX TOOL DIA, LARGE, ADJACENT EMPTY 5.0″ MAX TOOL DIA, EXTRA LARGE, ADJ EMPTY 6.0″ MAX TOOL LENGTH 16″ MAX TOOL WEIGHT 12 LBS. SHIPPING DIMENSIONS: DOMESTIC PALLET 214″ X 102″ X 128.5″ APPROX. WEIGHT 25,600 LBS. Equipped With: HAAS NEXTGEN CNC CONTROL REMOTE JOG HANDLE WITH TOUCH SCREEN WIFI CONNECTION 4TH-AXIS READY 10,000 RPM 20 HP 2-SPEED GEARED HEAD SPINDLE OPTIONS 30-POSITION SIDE-MOUNTED AUTOMATIC TOOL CHANGER CAT 40 SPINDLE TAPE BRUSHLESS 4TH AXIS DRIVE RENISHAW PROBING SYSTEM WITH PARTS PROBE AND TOOL SETTER HIGH SPEED MACHINING RIGID TAPPING CHIP AUGER PROGRAMMABLE COOLANT 300 PSI THRU SPINDLE COOLANT COOLANT TANK & PUMPS HAAS WINDOW BLAST
