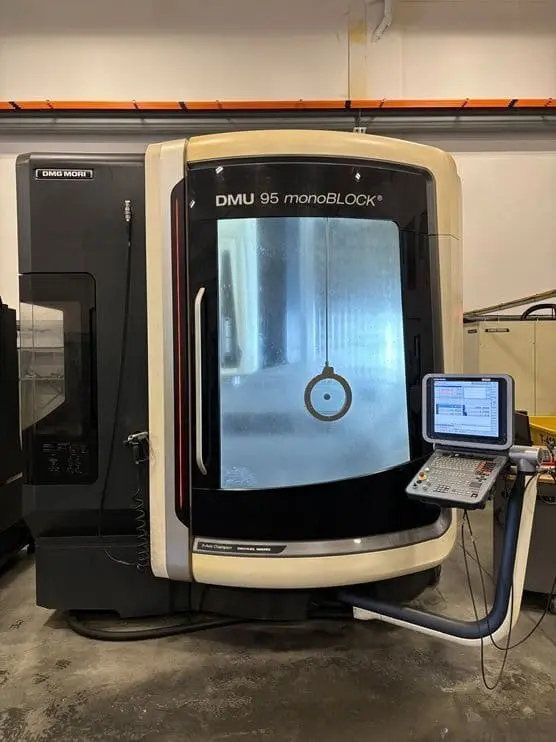

DMG Mori DMU95 monoBLOCK – 2018
DMG Mori DMU95 monoBLOCK – 2018
Category
Machining Centers
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
DMU95
Hours of Usage
-
Year of Manufacture
2018
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Control
Heidenhain
Y Axis Travel
33"
Z Axis Travel
26"
Through Spindle Coolant
Yes
Used Cnc Brands
DMG Mori, Mori Seiki
X Axis Travel
36"
Spindle Speed
20,000 RPM
Taper
40
5 Axis
Yes
X-Axis Travel
37.4”
Description
DMG MORI DMU 95 MONOBLOCK Specifications (subject to buyer verification): Number of Tables/Pallets: 1 Table Size: 39.3” x 29.5” Weight on Table: 2,200 lbs Integrated NC Rotary Table Size: 33.4” Main Spindle Horsepower: 46.9HP Main Spindle Speeds: 20,000 RPM Maximum Workpiece Diameter & Height: 40.9” x 23.2” Main Spindle Taper: HSK A63 X-Axis Travel: 37.4” Y-Axis Travel: 33.5” Z-Axis Travel: 25.6” A-Axis Travel: +/- 120 Degrees C-Axis Travel Table Indexing: 360 Degrees Rapid Traverse Rate X, Y and Z: 1,576 in/min Cutting Feed Rate: 1,576 in/min Automatic Tool Changer: 60 Tool Diameter: 3.14”, 6.3” Tool Length: 16.5” Tool Weight: 17.6 lbs Machine Weight: 39,462 lbs Equipped With (subject to buyer verification): Heidenhain TNC 640 3D CNC Control Mdynamics Package MPC Machine Protection Control Safety Package for Power Failure Spray Pistol with Pump Rotating Clearview Window Coolant Ring Jet 3D Quickset Chip Conveyor Infrared Measuring Probing Renishaw SK Blum Laser Tool Length Measurement Production Package 40 Bar 23L/min 500L tank coolant Thru Spindle and Filtration Hand-Held Remote Pulse Generator Inner Cooled Ball Screws Optimal 3 Point Support System 3D Simultaneous Graphics Dynamic Collision Monitoring Simultaneous 5-Axis Milling B-Axis Four (4) Colour Signal Light Transformer
Get in Touch with Seller About This Product
