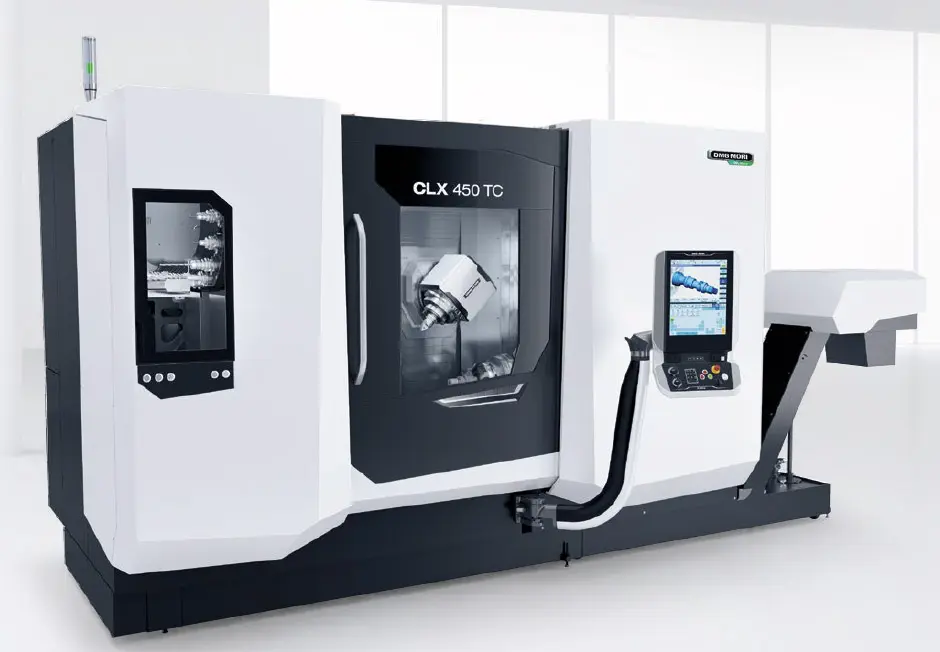

DMG Mori CLX450TC – 2025 (Sold)
Product Image
Product Image
Category
CNC lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
DMG MORI
Model
CLX450TC
Hours of Usage
-
Year of Manufacture
2025
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Specifications

Machine Type
DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used) Specifications (subject to buyer verification): Working area Swing diameter 500 mm 19.6 in Max. turning diameter 400 mm 15.7 in Max. turning length 1100 mm 43.3 in Center distance for tailstock machine 1472,5 mm 57.9 in Spindle distance for counter spindle machine 1435 mm 56.4 in Spindle 1 Main spindle, left Spindle head (short taper) A2-8 Chuck diameter 210-325 mm 8.2-12.7 in Max. bar diameter 65 mm 2.5 in Spindle bore diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools
Chuck Size
10"
Machining Length
43"
Used Cnc Brands
Mori Seiki
Bar Capacity
2.6"
Machining Diameter
15.7"
Y Axis
Yes
Live Tooling
Yes
Control
Siemens
Spindle Bore
diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools

Description

DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used) Specifications (subject to buyer verification): Working area Swing diameter 500 mm 19.6 in Max. turning diameter 400 mm 15.7 in Max. turning length 1100 mm 43.3 in Center distance for tailstock machine 1472,5 mm 57.9 in Spindle distance for counter spindle machine 1435 mm 56.4 in Spindle 1 Main spindle, left Spindle head (short taper) A2-8 Chuck diameter 210-325 mm 8.2-12.7 in Max. bar diameter 65 mm 2.5 in Spindle bore diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools

DMG Mori CLX 450 TC CNC Multi-Axis Lathe (New, Never Used) Specifications (subject to buyer verification): Working area Swing diameter 500 mm 19.6 in Max. turning diameter 400 mm 15.7 in Max. turning length 1100 mm 43.3 in Center distance for tailstock machine 1472,5 mm 57.9 in Spindle distance for counter spindle machine 1435 mm 56.4 in Spindle 1 Main spindle, left Spindle head (short taper) A2-8 Chuck diameter 210-325 mm 8.2-12.7 in Max. bar diameter 65 mm 2.5 in Spindle bore diameter 87 mm 3.4 in Draw tube inner diameter 67 mm 2.6 in Diameter in front bearing 130 mm 5.1 in Drive power, S1-100%d.c. / S3-40%d.c. 14/17 kW 18.7/22.7 hp Max. Speed 5000 rpm Power knee 485 rpm Torque, S1-100%d.c. / S3-40%d.c. 275/345 Nm 202/254 lb*ft Drive type, number of ranges AC/1 Design ISM 65 C-axis resolution 0.001 degrees Slide 1, top Slide traverse X1 (below center) 750 mm 29.5 in Slide traverse Y1 ±100 mm ±3.9 in Slide traverse Z1 1100 mm 43.3 in Turning-/milling spindle Tool holder HSK-T 63 Max. Speed 12000 rpm Tool magazine Magazine type chain Max. tool places 60 Equipped With (subject to buyer verification): Celos X with Siemens Sinumerik One Counter Spindle ISM 65, A2-8” Chain Magazine for 60 Tools
