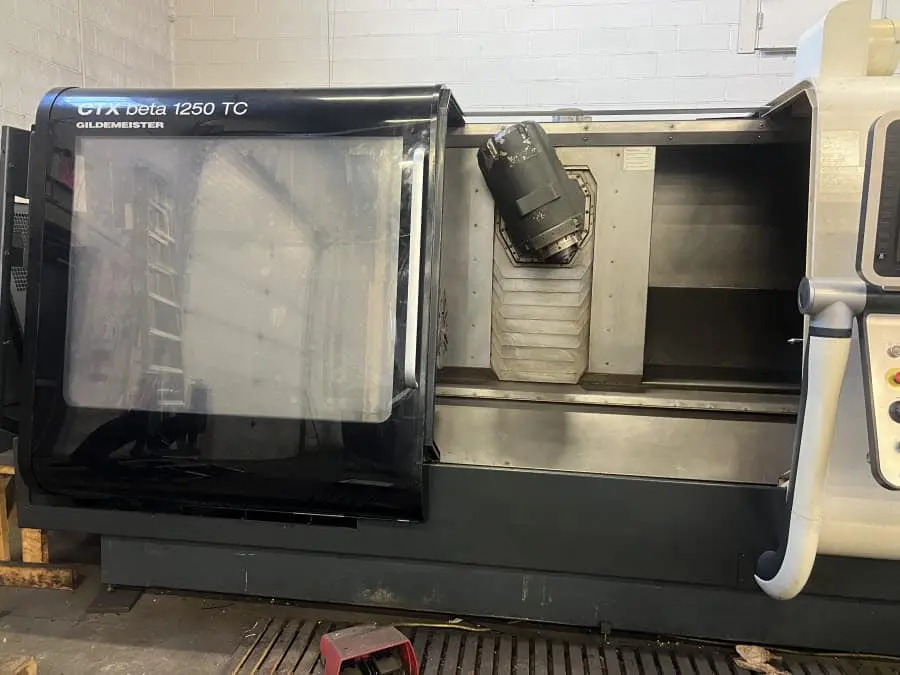

DMG Gildemeister CTX beta 1250TC Multi-Axis CNC Turning Center

DMG Gildemeister CTX beta 1250TC Multi-Axis CNC Turning Center Specifications (subject to buyer verification): Working area Swing diametre 500 mm 19.68 in Turning diametre max 390 mm 15.35 in Turning length max 1250 mm 49.21 in Distance between centres in machine with tailstock 1250 mm 49.21 in Main Spindle Bar diametre max 65 mm 2.55 in Spindle nose diametre (flat flange) 170h5 mm 6.69h5 in Spindle bore diametre 87 mm 3.42 in Draw bar diametre (internal) 68 mm 2.67 in Drive rating, max. 100/40% DC 25/34 kW 33/45 hp Speed range 5000 min-¹ 5,000 rpm Power knee 850 min-¹ 850 rpm Torque, max. 100/40% DC 280/380 Nm 206.51/280.27 lb*ft Motor version ISM76 ISM76 Speed of C-axis 200 rpm C-axis Torque 280 Nm 206.51 lb*ft Angular value, min. 0,001° 0.001° Slide 1 – upper slide traverse X1 450 (-10) mm 17.71 (-0.39) in slide traverseY1 ±100 mm ± 3.93in slide traverse Z1 1300 mm 51.18 in rapid traverse X/Y/Z 30/30/30 m/min 98.42/98.42/98.42 ft/min thrust S6-40% X/Y/Z 10.8/5.6/7.4 kN 2376/1232/1628 lbf resolution X/Y/Z 0,001 mm 0.0039 in Turning-milling spindle tool type standard CAPTO C6 speed range, max. 12000 min-¹ 12000 rpm drive power, max. 100/40% DC 13,2/22 kW 17.69/29.49 hp spindle torque, max. 100/40% DC 60/100 Nm 44.25/73.75 lb*ft kind of drive/no. of range AC/1 AC/1 type ISM ISM angular value, min. 0,001° 0,001° locking moment 1000 Nm 737.56 lb*ft B-axis CNC Positioning angle (continuously) ±110° speed range B1 36000°/min torque B-axis, 100/40% ED 344/614 Nm 253.72/452.86 lb*ft Angular value, min. 0,001° locking value moment (pneumatical brake) 2800 Nm 2065 lb*ft Tool disc magazine no. of tool stations 24 tool dia./tool length max. 80/300 mm 3.14/11.81 in tool weight max. 7 kg 15.4 lb Tailstock, hydraulically programmable traverse path 1200 mm 47.24 in thrust force 1400 daN 3147 lbf live center attachment MT 5 drive type hydraulic rapid traverse Z 3 m/min 9.8 ft/min Weights and dimensions machine dimensions LxBxH (without cooling unit) 5671x2721x2067 mm 223.26×107.12×81.37 in machine weight inclusive contol cabinet 7950 kg 17526 lb Noise emission values workplace based constant noise pressure level, 80 dB(A) measured with machine switched-on according to DIN45635 and ISO 3740-1980 Equipped With (subject to buyer verification): Siemens Sinumerik 840D ERGOline CNC Control – 33.51/45.57 hp / 5000 RPM – C-axis and spindlebrake (hydr.) – Y-axis ± 100 mm (3.93 in) – B-axis ±110° with pneumatic locking – Tools magazine disc with 1×24 positions – Automatic tailstock, hydraulic positionable, – Absolute direct gauging system in the X, Y, Z linear axes – Coolant pump 6 bar; 20l/min – Hinged type chip conveyor, discharge height 1200 mm (47.24 in) – Cooling system for spindle motor, turning/milling spindle, – USB interface, Ethernet interface – Tool breakage monitoring – Turn/mill spindle and tool magazine with tool reception Capto C6 – Hydraulic hollow clamping attachment dia. 77 mm (3.03 inch) – Interface 1000 PSI ChipBlaster – Chip Blaster JV-40 High Pressure Coolant Unit – Connection piece for oil mist -SMW Autoblok Chuck
