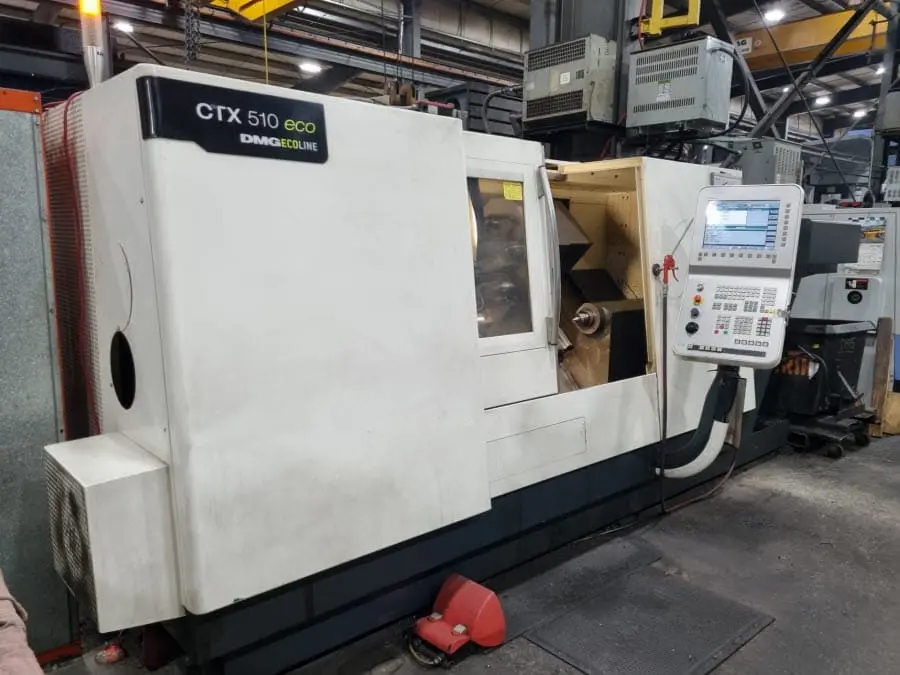

DMG Gildemeister CTX-510 eco – 2012
DMG Gildemeister CTX-510 eco – 2012
Category
CNC lathes
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Gildemeister
Model
DMG Gildemeister
Hours of Usage
-
Year of Manufacture
2012
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
DMG Gildemeister CTX510 eco Multi-Axis CNC Turning Center
Machining Length
40"
Used Cnc Brands
DMG DECKEL
Chuck Size
15"
Machining Diameter
18.5"
Control
Siemens
Bar Capacity
2.9"
Live Tooling
Yes
Swing Over Bed
: 26.77” Swing over
Spindle Nose
(plain flange) 220 h5 mm
Description
DMG Gildemeister CTX510 eco Multi-Axis CNC Turning Center DMG Gildemeister CTX510 eco Multi-Axis CNC Turning Center Specifications (subject to buyer verification): Working area No. of Axes: 3 Max swing over bed: 26.77” Swing over X-slide: 18.3” Max. turning diameter: 18.3” Max. turning length: 39.37” Bar capacity: 2.9” Transverse stroke (X): 11.81” Longitudinal stroke (Z): 41.34” Feed drive Rapid traverse X/Z axes 1181 IPM Headstock Spindle nose (plain flange) 220 h5 mm Spindle bore diameter 4.02” Main drive AC main drive power (100% ED) 30 HP Torque at 600 rpm (100% ED) 365 lbf ft Speed range 20 – 3250 rpm Tool turret Number of tool stations 12 Driven Tool Stations 6 Spindle Motor 12 HP Speed 4000 RPM Tailstock Tailstock travel, automatic 33.46” Tailstock quill stroke 5.9” Quill diameter 4.72” Quill shaft 5 MT Weights Net weight of the machine 16500 lb Dimensions Machine with chip conveyor L x D x H 212” x 129” x 90” Equipped With (subject to buyer verification): Siemens 810D Milling All Available Tooling and Manuals
Get in Touch with Seller About This Product
