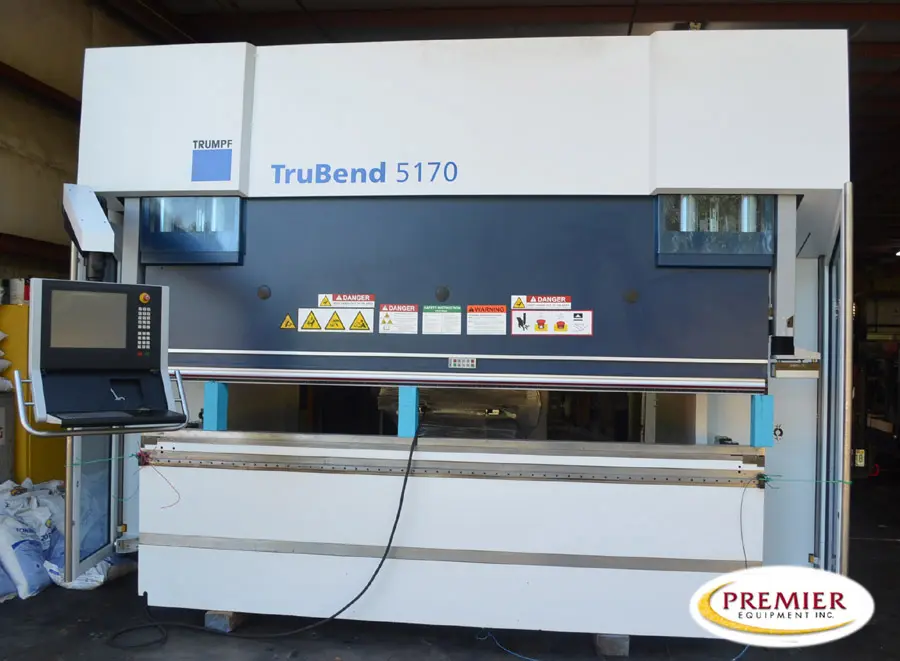

**2012 Trumpf TruBend 5170 CNC Press Brake Top-level bending: even complex parts produced fast and accurately – with short setup times for maximum efficiency The TruBend Series 5000 TRUMPF’s most successful bending machine worldwide. This means from programming, to setup, to bending, production productivity will be unmatched. Innovative features such as the lower tool displacement and the 6-axis backgauge provide you with complete production freedom. The operator’s work is made easier by numerous innovations such as the control concept, which is revolutionary in its simplicity and intuitive use, as well as new solutions in the field of ergonomics. Specifications (subject to buyer verification): Press force: approx.. 187 US Tons (1700 kN) Stoke: 17.51” Brake Time: 95 ms Bending length: 127″ Width between columns: 11.41″ Usable open height: 24.21″ Throat depth: 16.53″ User interface: Touchpoint TruBend Dimensions, weights Length: 156.6″ Width: 74.8″ Height: 118.1″ Weight: 26,901 lbs Equipped With (subject to buyer verification): TruBend Control Extended Opening Height and 17.5” Stroke 6 Axis Back Guage Upper Hydraulic Tool Clamping Lower Hydraulic Tool Clamping CNC Crowning Pneumatic Die Positioning Work Area Lighting Multifunctional Footswitch Bend Guard Safety System Cabinet Air Conditioning and Oil Cooler **This machine was Refurbished by Trumpf in Approx. 2024 / Sold Refurbished by Trumpf in 2026

**2012 Trumpf TruBend 5170 CNC Press Brake Top-level bending: even complex parts produced fast and accurately – with short setup times for maximum efficiency The TruBend Series 5000 TRUMPF’s most successful bending machine worldwide. This means from programming, to setup, to bending, production productivity will be unmatched. Innovative features such as the lower tool displacement and the 6-axis backgauge provide you with complete production freedom. The operator’s work is made easier by numerous innovations such as the control concept, which is revolutionary in its simplicity and intuitive use, as well as new solutions in the field of ergonomics. Specifications (subject to buyer verification): Press force: approx.. 187 US Tons (1700 kN) Stoke: 17.51” Brake Time: 95 ms Bending length: 127″ Width between columns: 11.41″ Usable open height: 24.21″ Throat depth: 16.53″ User interface: Touchpoint TruBend Dimensions, weights Length: 156.6″ Width: 74.8″ Height: 118.1″ Weight: 26,901 lbs Equipped With (subject to buyer verification): TruBend Control Extended Opening Height and 17.5” Stroke 6 Axis Back Guage Upper Hydraulic Tool Clamping Lower Hydraulic Tool Clamping CNC Crowning Pneumatic Die Positioning Work Area Lighting Multifunctional Footswitch Bend Guard Safety System Cabinet Air Conditioning and Oil Cooler **This machine was Refurbished by Trumpf in Approx. 2024 / Sold Refurbished by Trumpf in 2026

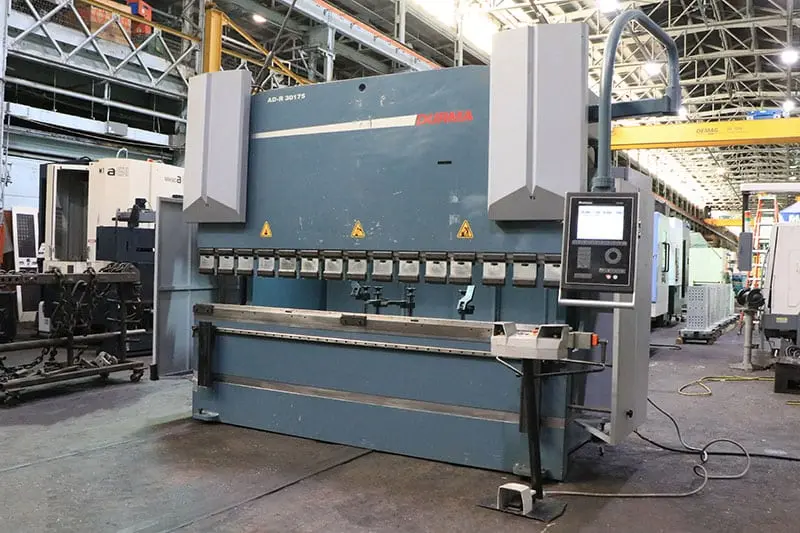

DURMA AD-R 30175 10′ x 192.5 TON CNC HYDRAULIC PRESS BRAKE – 2014 Capacity …………………… 192.5 Ton Overall Length of Bed & Ram ….. 10′ Distance Between Housings ……. 8’6″ Stroke (Adjustable) …………. 10.4″ Open Height ………………… 21″ Throat Depth ……………….. 16″ Speeds …………………….. 283 IPM – Approach 24 IPM – Press 236 IPM – Return Motor ……………………… 25 HP Voltage ..(currently 460)…….. 230 / 460 / 3 Ph EQUIPPED WITH: – Delem DA-56s 3-Axis CNC Back Gauge (X, Y1, Y2) – Manual R Axis – Manual Crowning – 4 Adjustable Fingers on Back Gauge – Lower Die Rail – Full Complement of Sectional Ram Clamps – Dual Palm Button or Electric Foot Switch Operation – All Manuals Weight: 25,353 Lbs. Dimensions: 14′ L-R x 8’4″ F-B x 9′ H

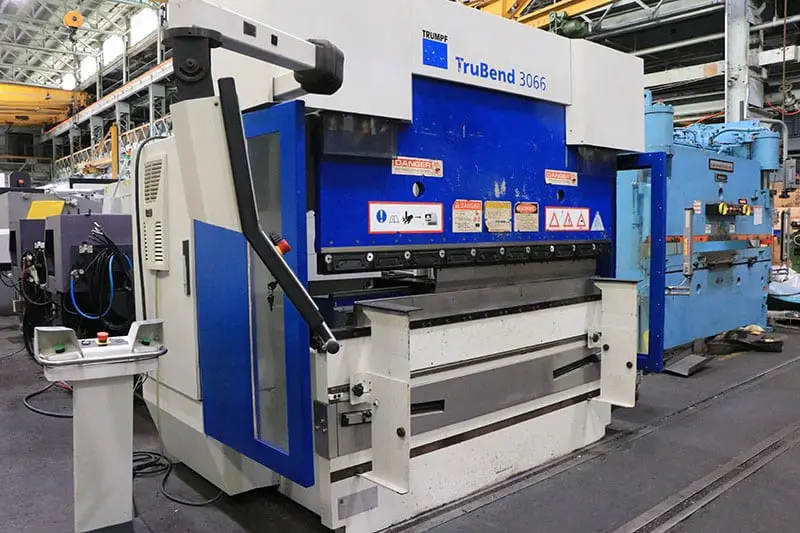

TRUMPF TRUBEND 3066 73 TON X 80″ HYDRAULIC PRESS BRAKE – 2006 TONNAGE ……………………. 73 BED LENGTH .. ………………. 80″ DISTANCE BETWEEN HOUSINGS ……. 69″ LENGTH BETWEEN THE HOUSINGS ….. 93″ STROKE …………………….. 7.87″ OPEN HEIGHT ………………… 14″ CLOSED HEIGHT ………………. 5.9″ Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC. Y-AXIS OPERATIONAL SPEED MAX …. 15 MM /SEC. PRESS SPEEDS: RAPID ADVANCE ….. 472 IPM BENDING ……….. 35 IPM RETURN ………… 472 IPM MAIN MOTOR HP ………………. 10 MAX OPERATING PRESSURE ……… 4,466 PSI MOTOR SPECS ………………… 3 PH / 460 V APPROX. WEIGHT: 12,500 LBS. APRROX DIMENSIONS: 102″ X 69″ X 92″ H EQUIPPED WITH: – PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL – DELEM DA-65TW GRAPHIC CONTROL – TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2) – MISC. TOOLING
