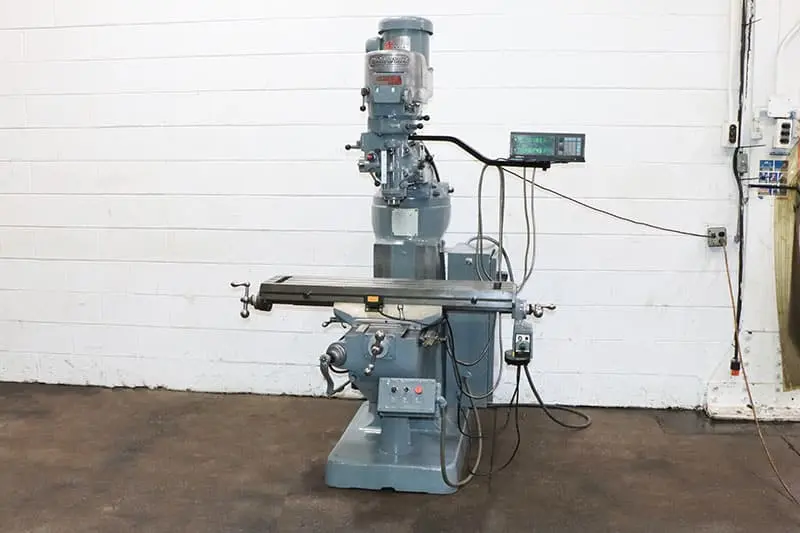

BRIDGEPORT SERIES 1 MILL – 1981 (Sold)
BRIDGEPORT SERIES 1 MILL – 1981 (Sold)
Category
Milling Machines
Condition
Used
Location
990 Sunshine Lane Altamonte Springs, FL 32714
Brand
Bridgeport
Model
SERIES 1
Hours of Usage
-
Year of Manufacture
1981
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller
Specifications
Machine Type
1981 BRIDGEPORT Series I VERTICAL MILLING MACHINE SPECIFICATIONS: TABLE SIZE ………………………… 9″ X 48″ NUMBER OF T-SLOTS ………………….. 3 LONGITUDINAL TABLE TRAVEL …………… 36″ CROSS TRAVEL ………………………. 12″ QUILL TRAVEL ………………………. 5″ KNEE TRAVEL ……………………….. 16″ RAM TRAVEL ………………………… 12″ MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2″ / 2-1/2″ MAX/MIN DISTANCE, CENTERLINE OF SPINDLE. TP FACE OF COLUMN ………………. 18-3/4″ / 6-3/4″ HEAD TILT, LEFT & RIGHT …………….. 90 DEGREES HEAD TILT, FRONT & REAR …………….. 45 DEGREES INFINITELY VARIABLE SPEED RANGE ……… 60-4,200 RPM SPINDLE TAPER ……………………… R-8 MAX COLLET CAPACITY ………………… 3/4″ QUILL TRAVEL ………………………. 5″ QUILL FEEDS …………………… 0.0015″, 0.003″, 0.006″ APPROXIMATE WEIGHT …………………. 2,000 LBS EQUIPPED WITH: SONY TWO AXIS DIGITAL READOUT POWER FEED FOR LONGITUDINAL TRAVEL BIJUR ONE-SHOT LUBRICATION SYSTEM BRIDGEPORT SERIES I MILLING HEAD 2 HORSE POWER SPINDLE MOTOR
Used Cnc Brands
Bridgeport
Spindle Nose
TO TABLE . 18-1/2″ / 2-1/2″ MAX/MIN DISTANCE, CENTERLINE OF
Spindle Motor
1981 BRIDGEPORT Series I VERTICAL
Weight
…………………. 2,000 LBS
Status
Sold
Description
1981 BRIDGEPORT Series I VERTICAL MILLING MACHINE SPECIFICATIONS: TABLE SIZE ………………………… 9″ X 48″ NUMBER OF T-SLOTS ………………….. 3 LONGITUDINAL TABLE TRAVEL …………… 36″ CROSS TRAVEL ………………………. 12″ QUILL TRAVEL ………………………. 5″ KNEE TRAVEL ……………………….. 16″ RAM TRAVEL ………………………… 12″ MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2″ / 2-1/2″ MAX/MIN DISTANCE, CENTERLINE OF SPINDLE. TP FACE OF COLUMN ………………. 18-3/4″ / 6-3/4″ HEAD TILT, LEFT & RIGHT …………….. 90 DEGREES HEAD TILT, FRONT & REAR …………….. 45 DEGREES INFINITELY VARIABLE SPEED RANGE ……… 60-4,200 RPM SPINDLE TAPER ……………………… R-8 MAX COLLET CAPACITY ………………… 3/4″ QUILL TRAVEL ………………………. 5″ QUILL FEEDS …………………… 0.0015″, 0.003″, 0.006″ APPROXIMATE WEIGHT …………………. 2,000 LBS EQUIPPED WITH: SONY TWO AXIS DIGITAL READOUT POWER FEED FOR LONGITUDINAL TRAVEL BIJUR ONE-SHOT LUBRICATION SYSTEM BRIDGEPORT SERIES I MILLING HEAD 2 HORSE POWER SPINDLE MOTOR 1981 BRIDGEPORT Series I VERTICAL MILLING MACHINE SPECIFICATIONS: TABLE SIZE ………………………… 9″ X 48″ NUMBER OF T-SLOTS ………………….. 3 LONGITUDINAL TABLE TRAVEL …………… 36″ CROSS TRAVEL ………………………. 12″ QUILL TRAVEL ………………………. 5″ KNEE TRAVEL ……………………….. 16″ RAM TRAVEL ………………………… 12″ MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2″ / 2-1/2″ MAX/MIN DISTANCE, CENTERLINE OF SPINDLE. TP FACE OF COLUMN ………………. 18-3/4″ / 6-3/4″ HEAD TILT, LEFT & RIGHT …………….. 90 DEGREES HEAD TILT, FRONT & REAR …………….. 45 DEGREES INFINITELY VARIABLE SPEED RANGE ……… 60-4,200 RPM SPINDLE TAPER ……………………… R-8 MAX COLLET CAPACITY ………………… 3/4″ QUILL TRAVEL ………………………. 5″ QUILL FEEDS …………………… 0.0015″, 0.003″, 0.006″ APPROXIMATE WEIGHT …………………. 2,000 LBS EQUIPPED WITH: SONY TWO AXIS DIGITAL READOUT POWER FEED FOR LONGITUDINAL TRAVEL BIJUR ONE-SHOT LUBRICATION SYSTEM BRIDGEPORT SERIES I MILLING HEAD 2 HORSE POWER SPINDLE MOTOR
