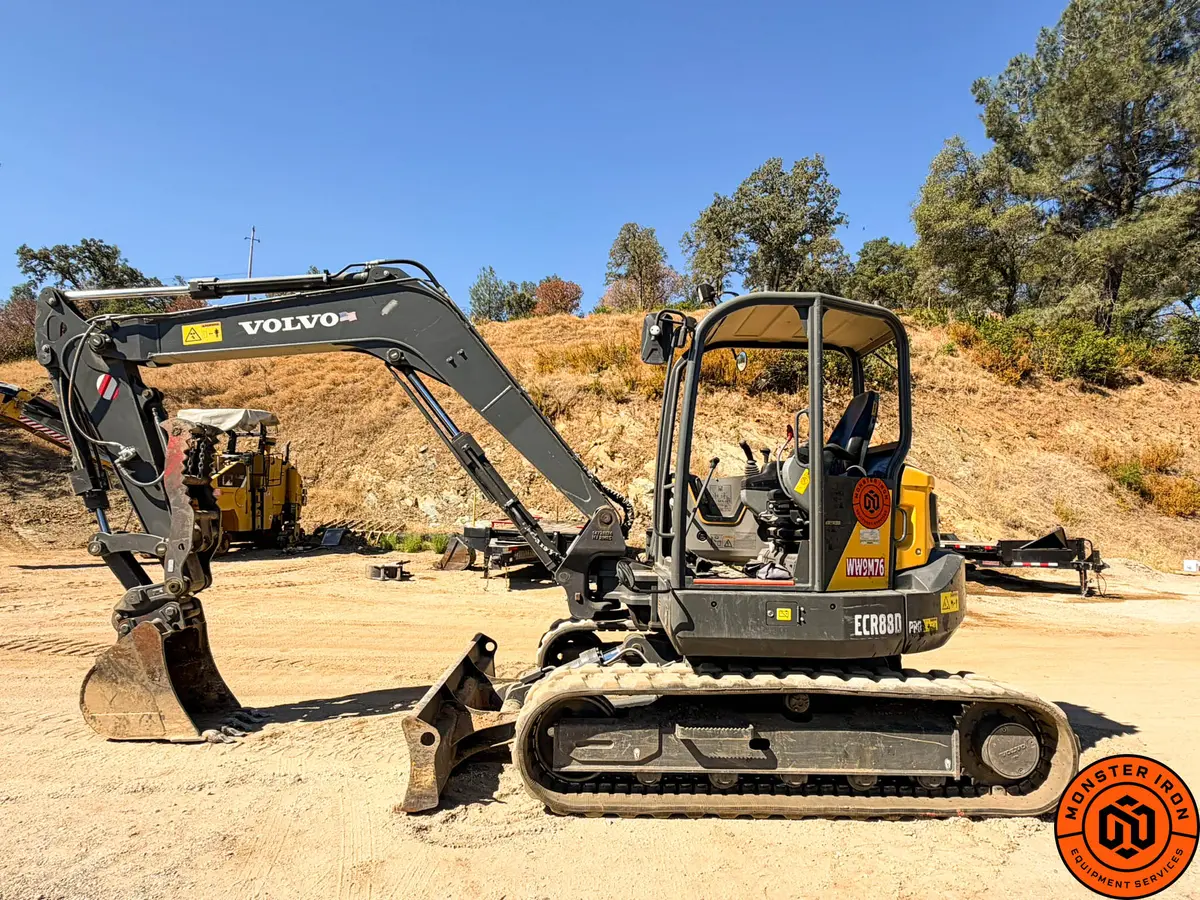

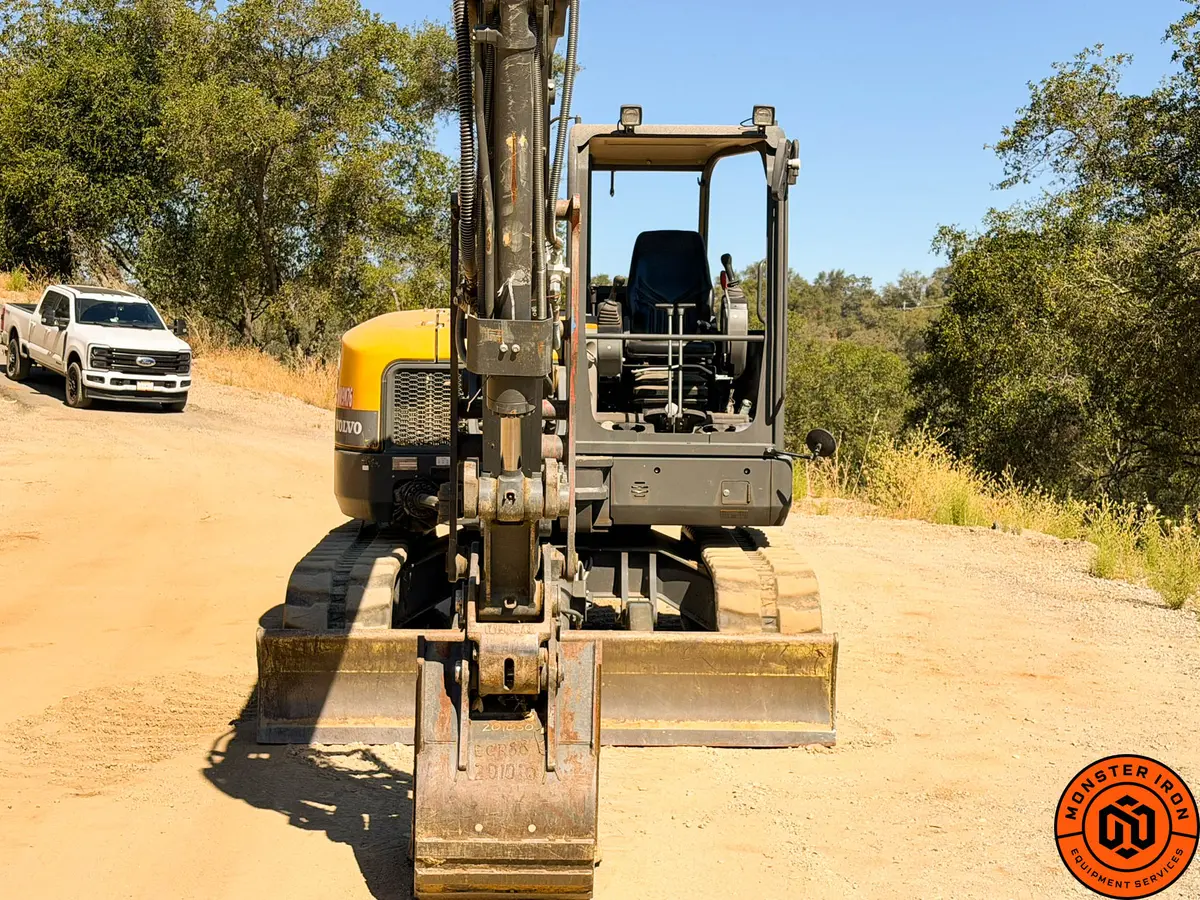

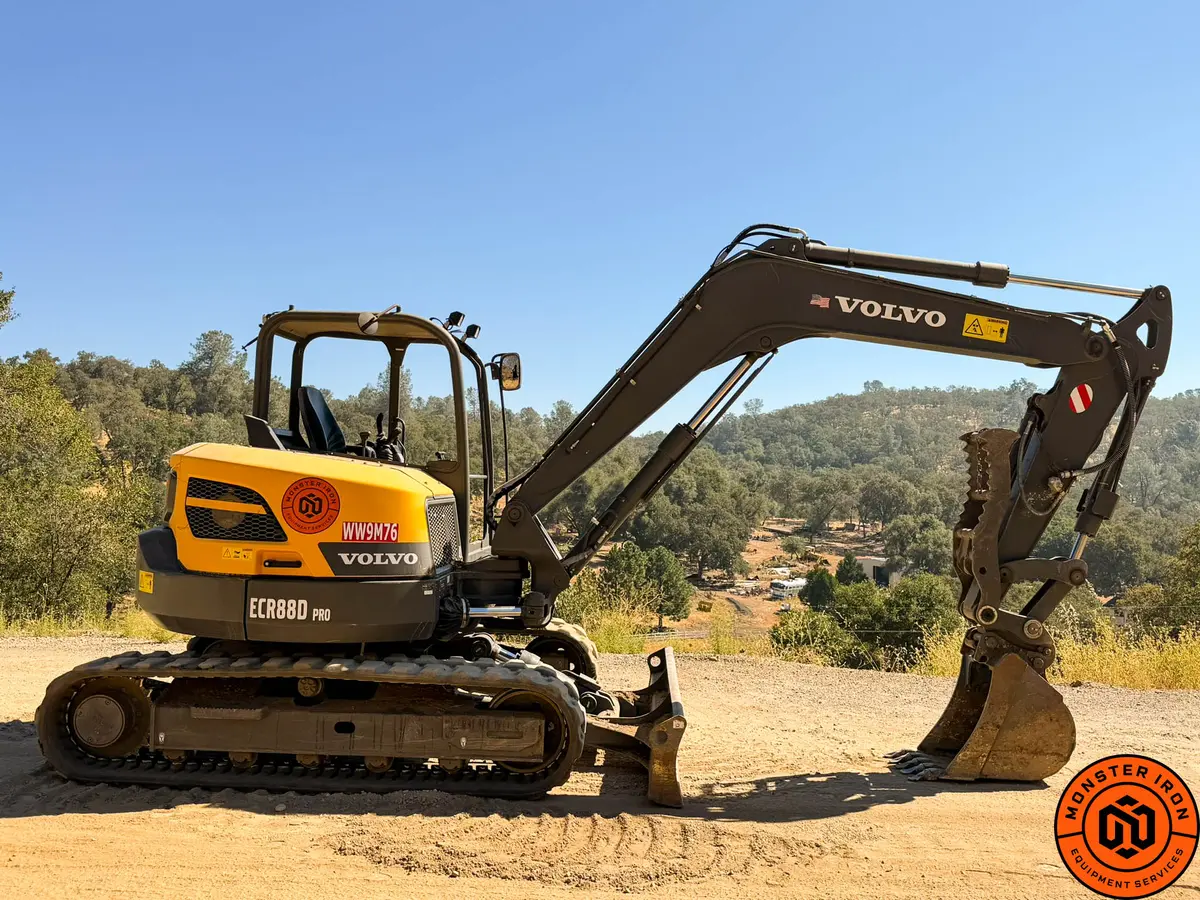

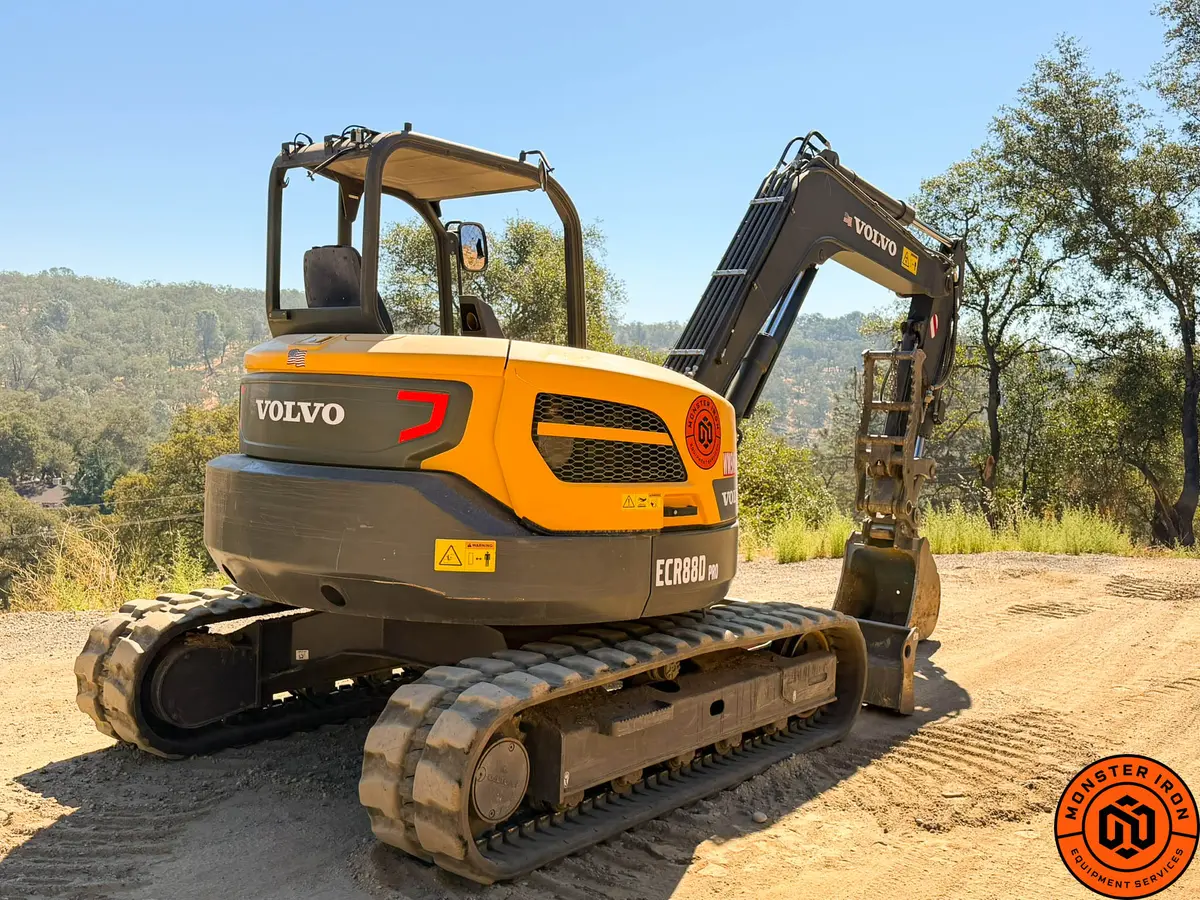

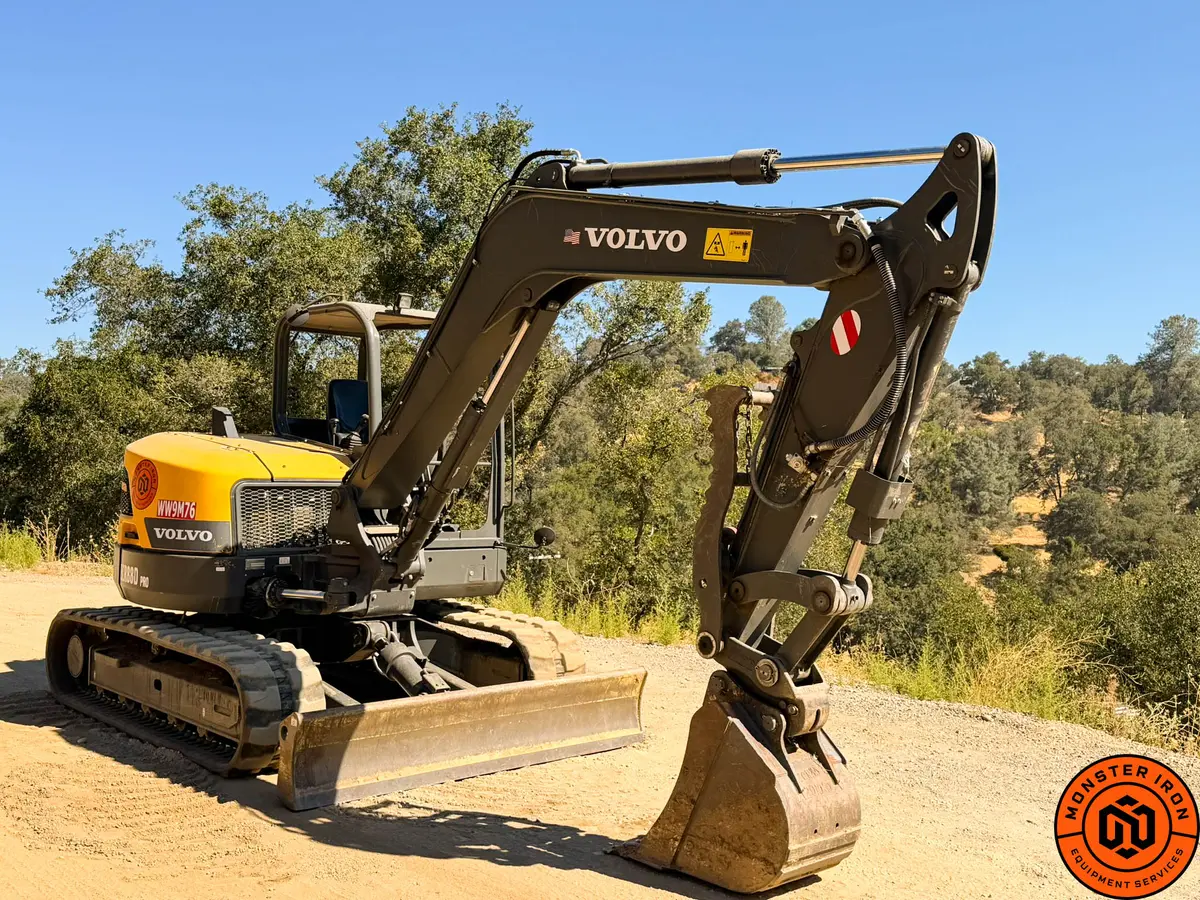

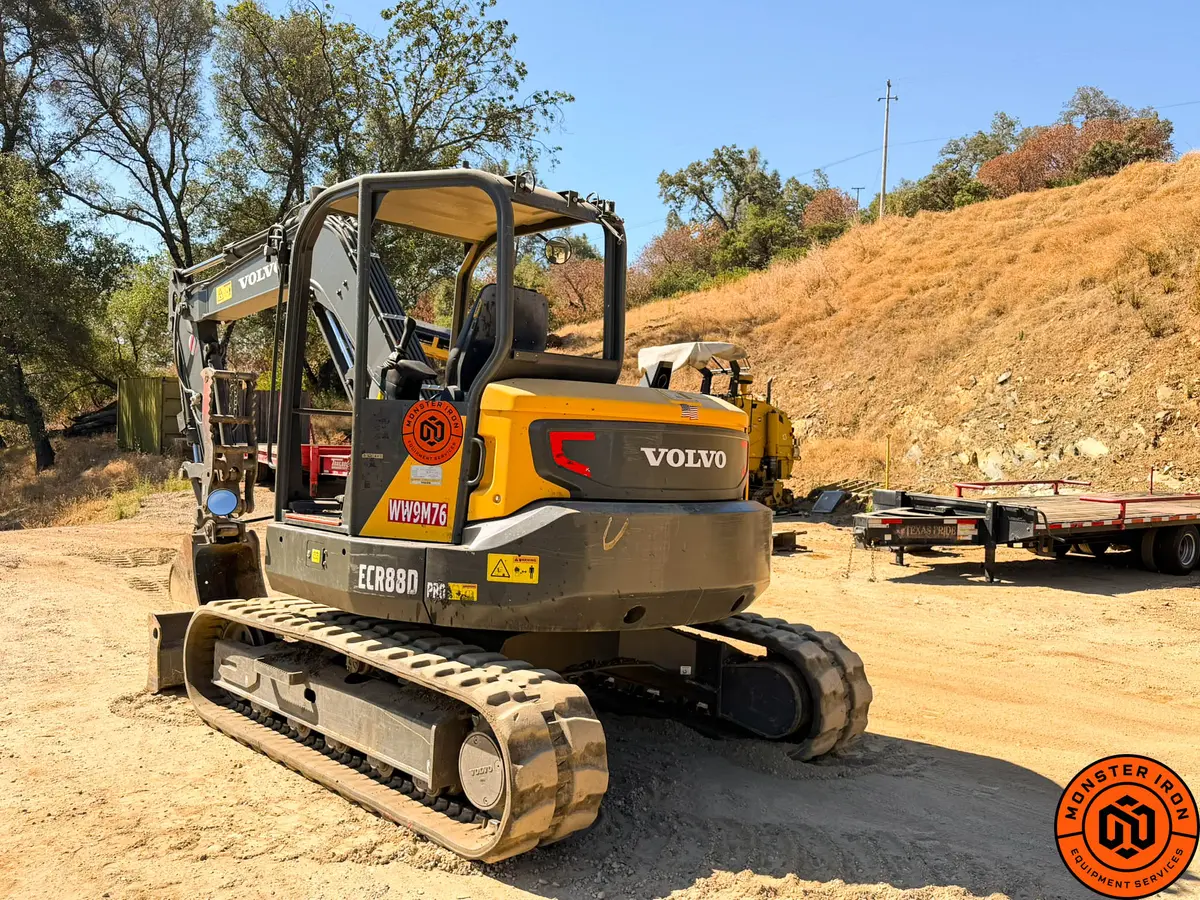

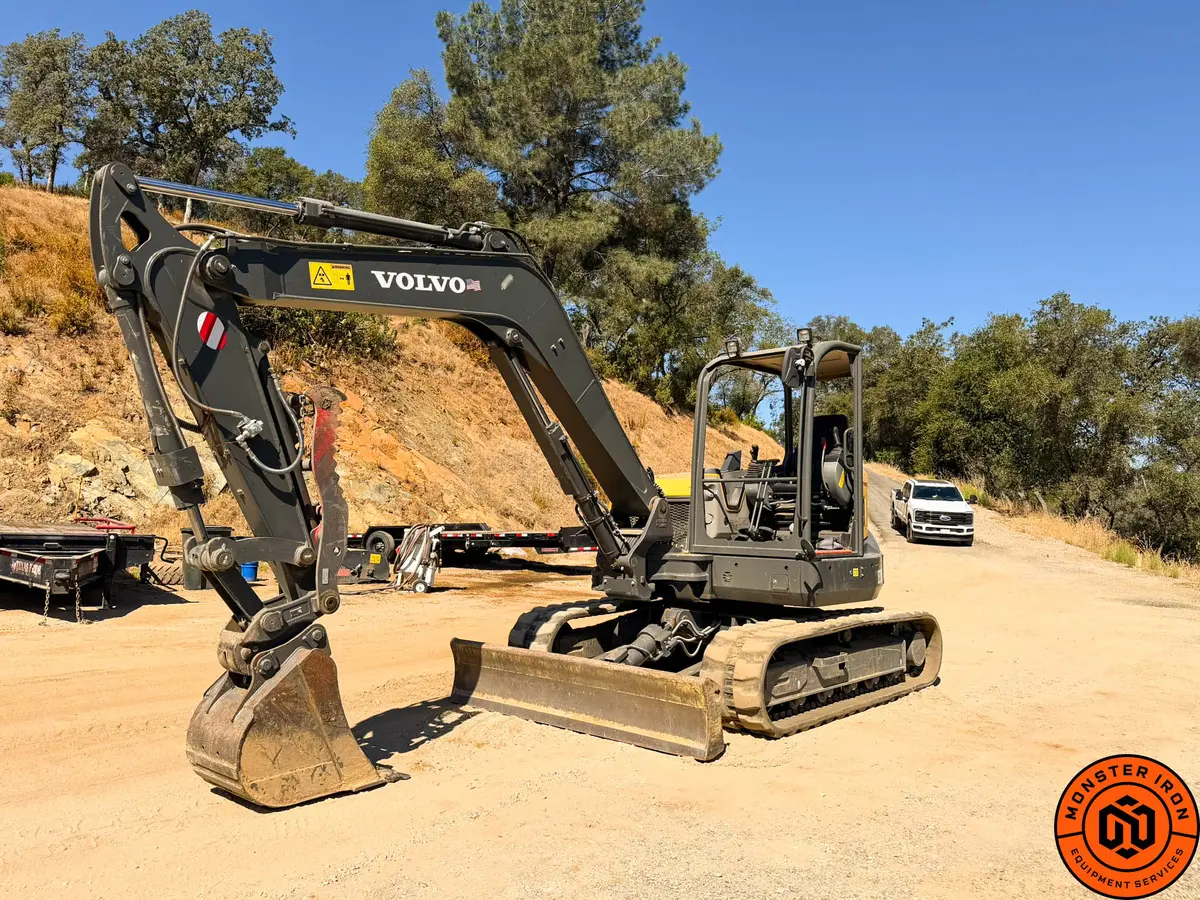

2020 VOLVO ECR88D EXCAVATOR

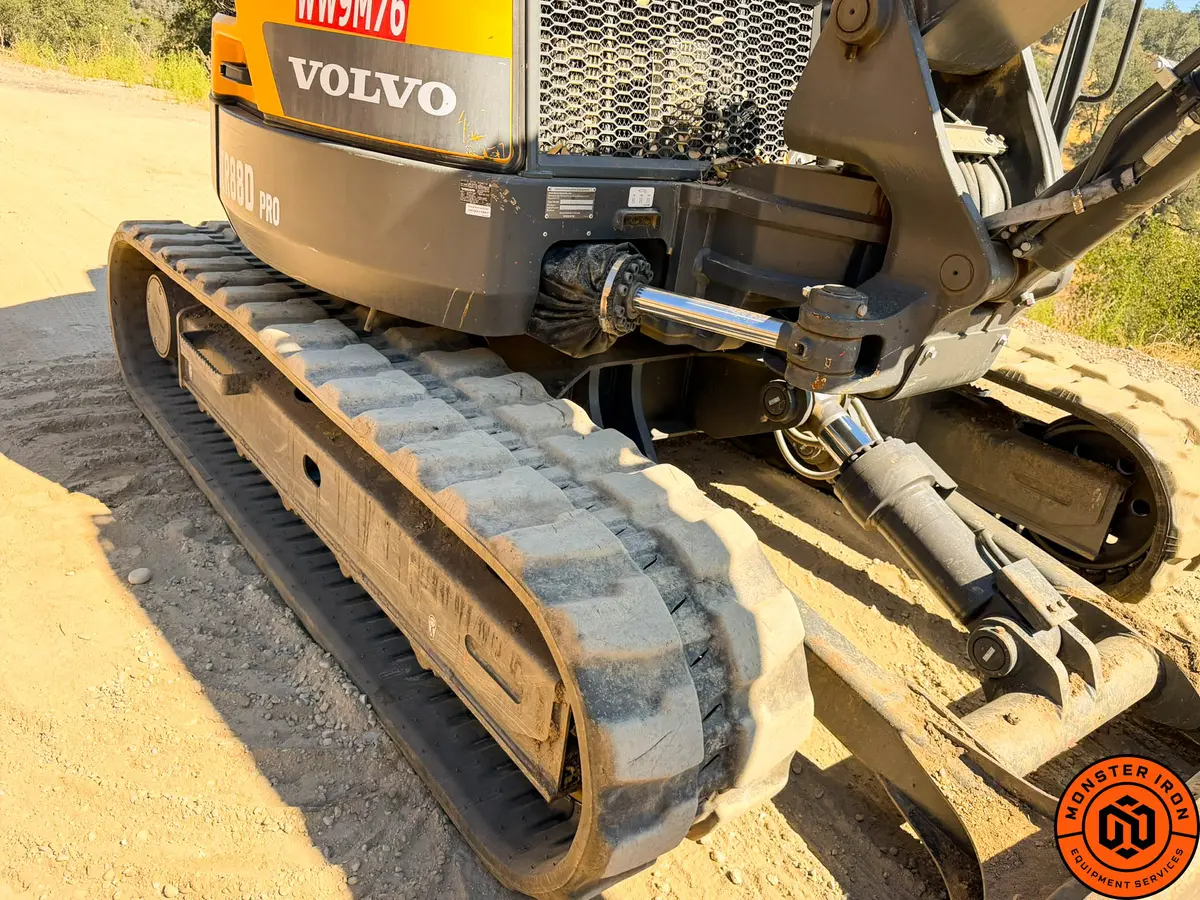

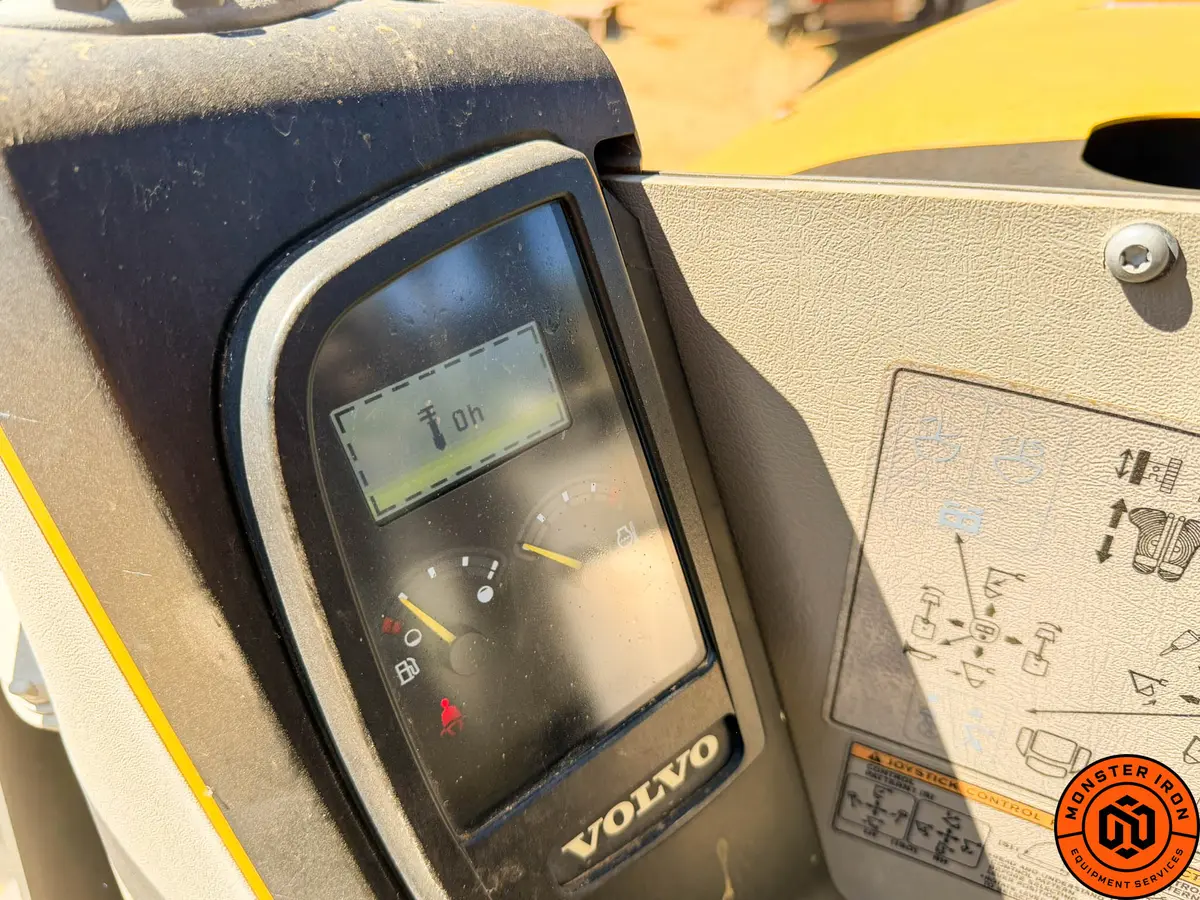

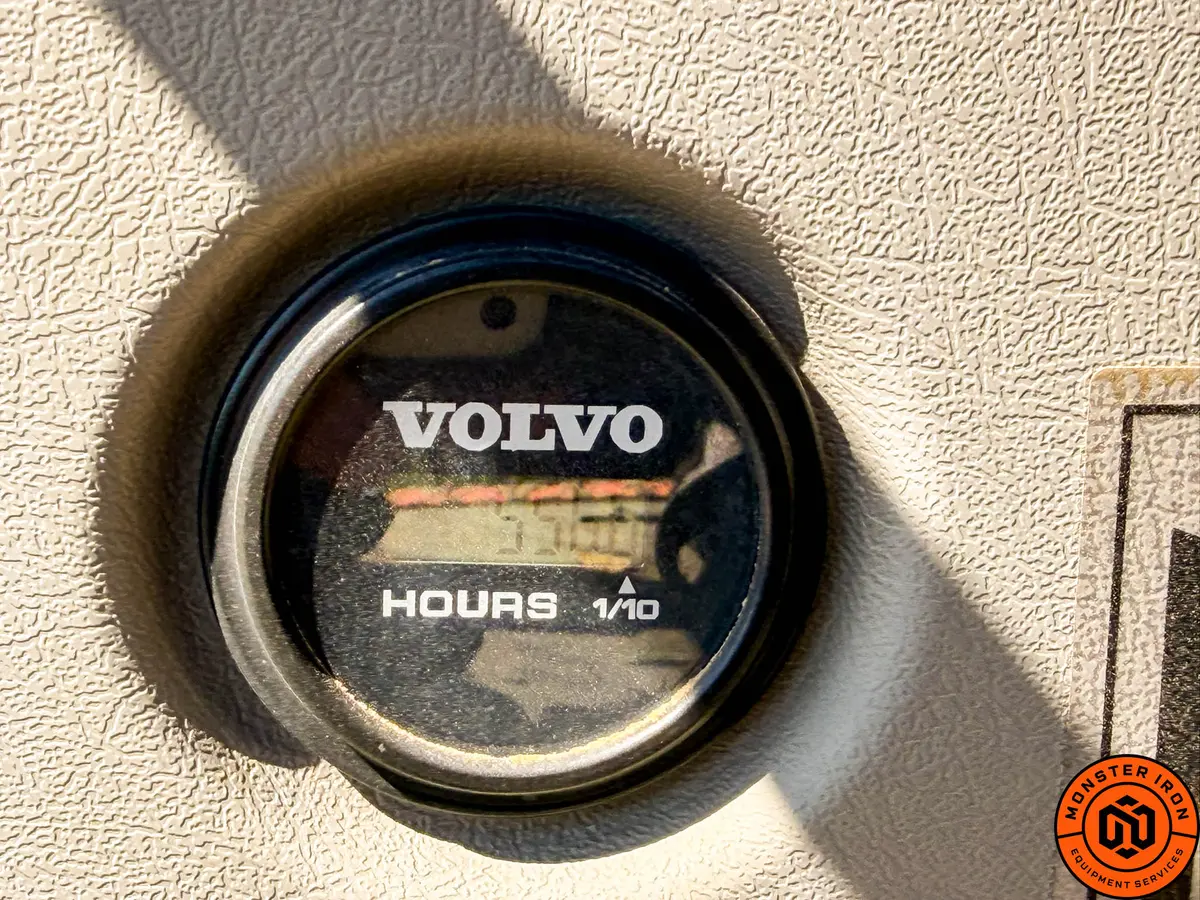

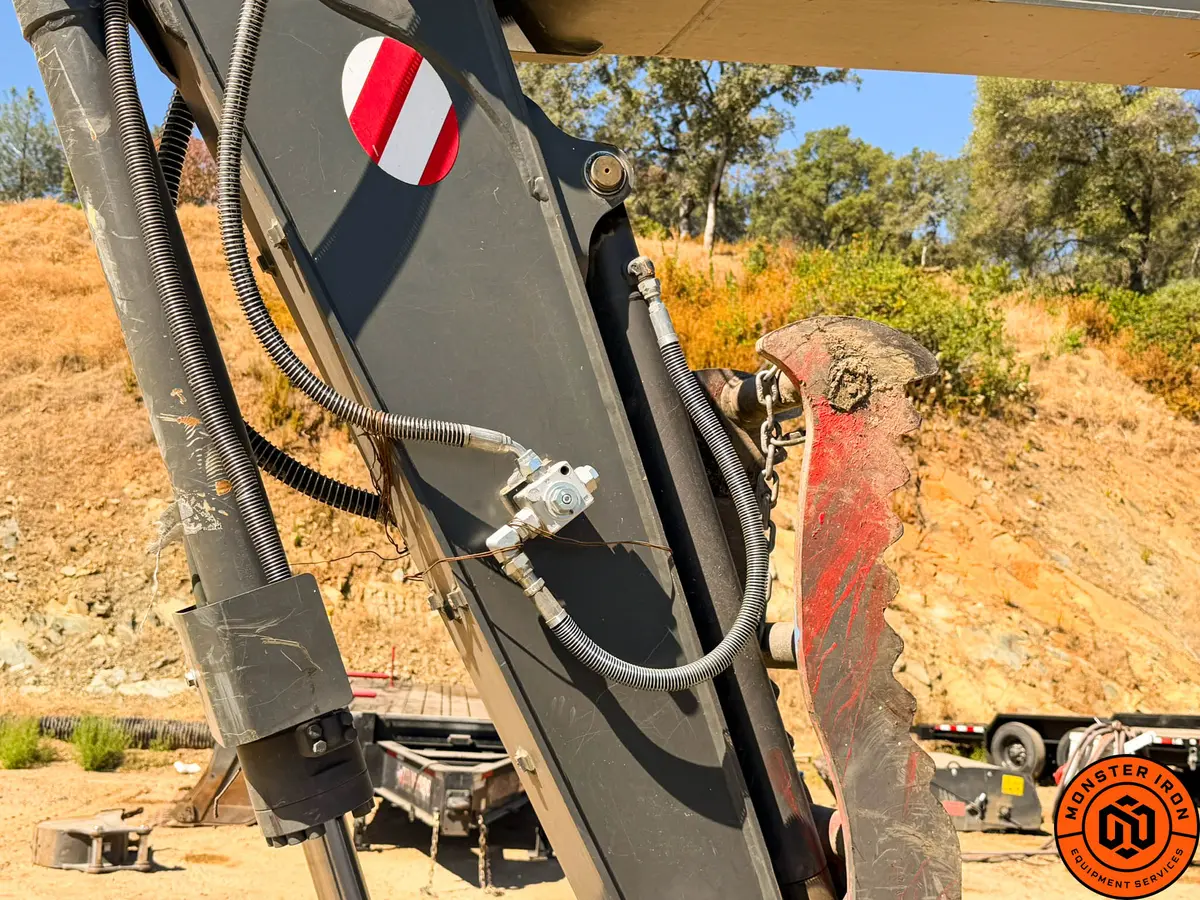

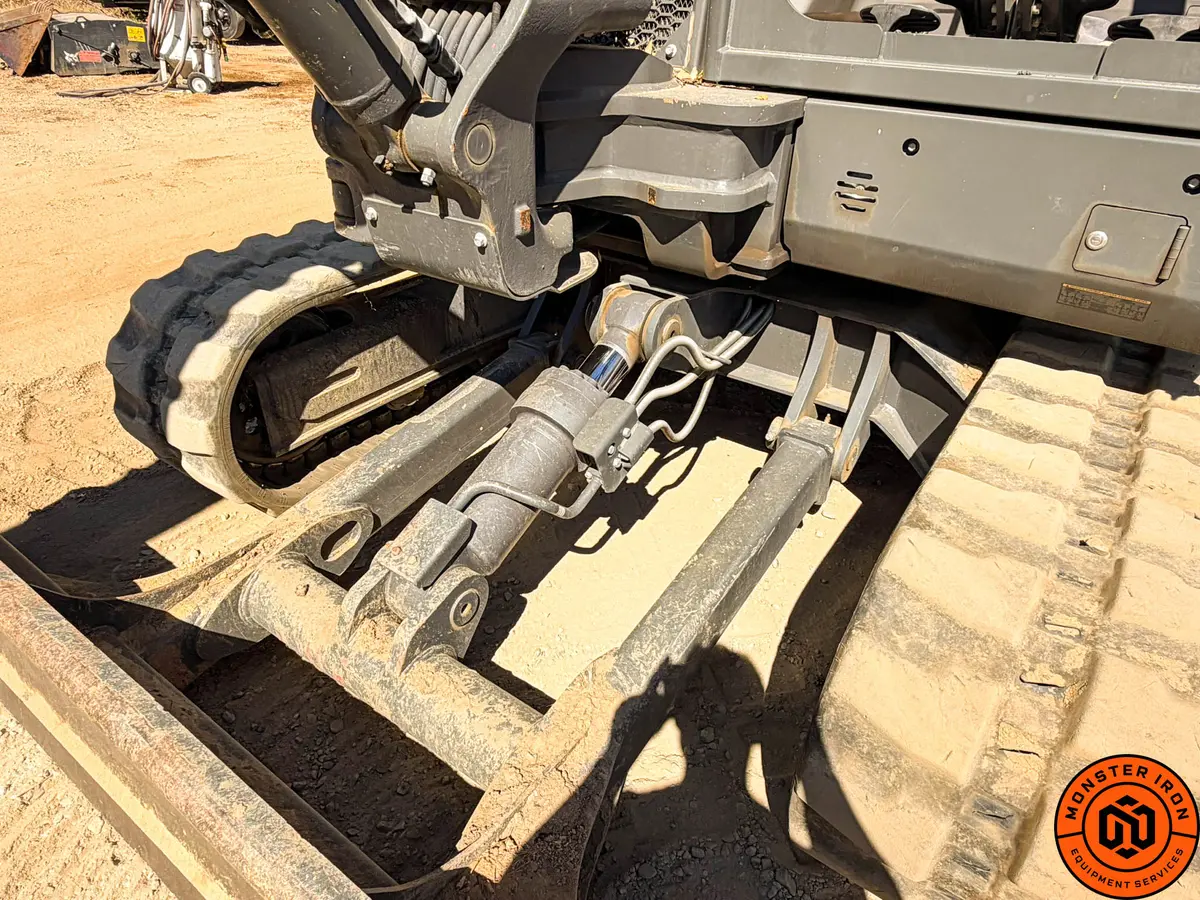

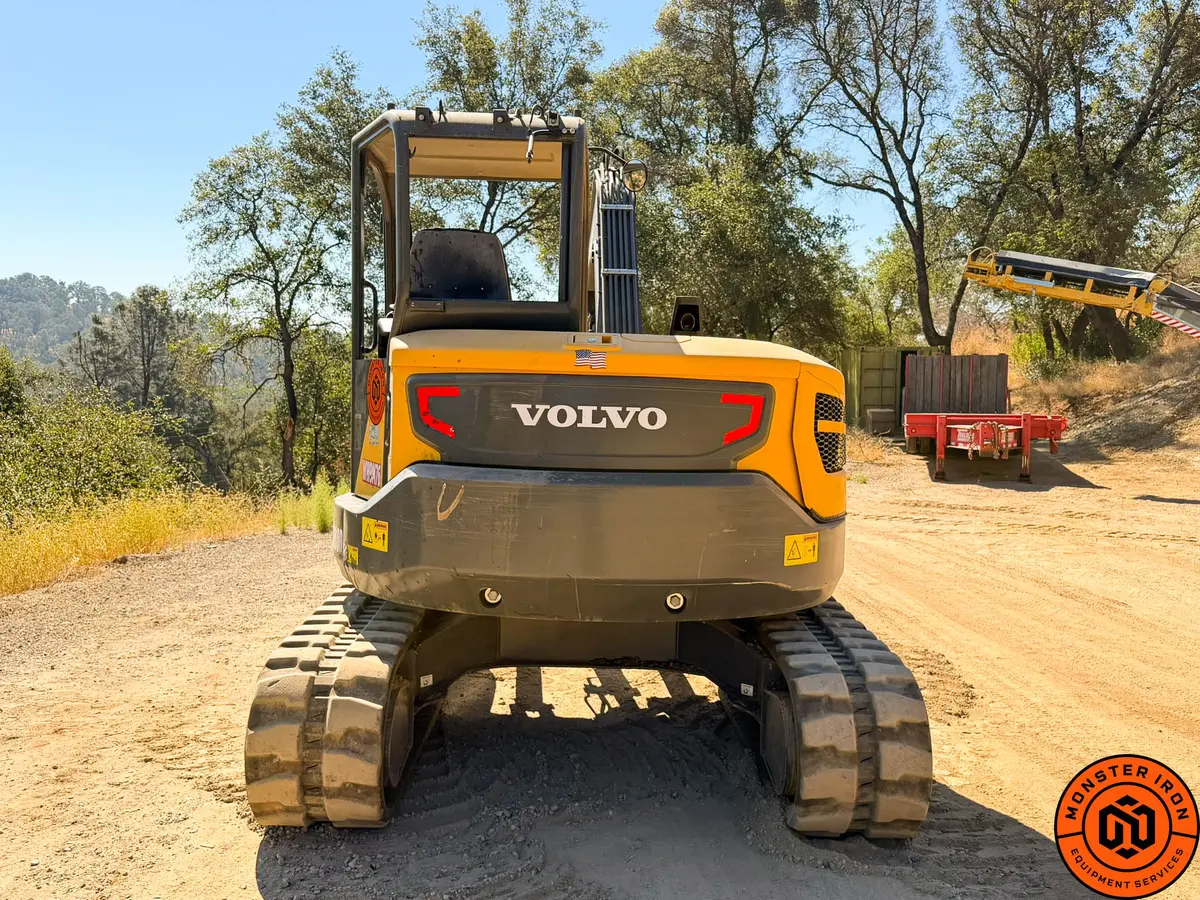

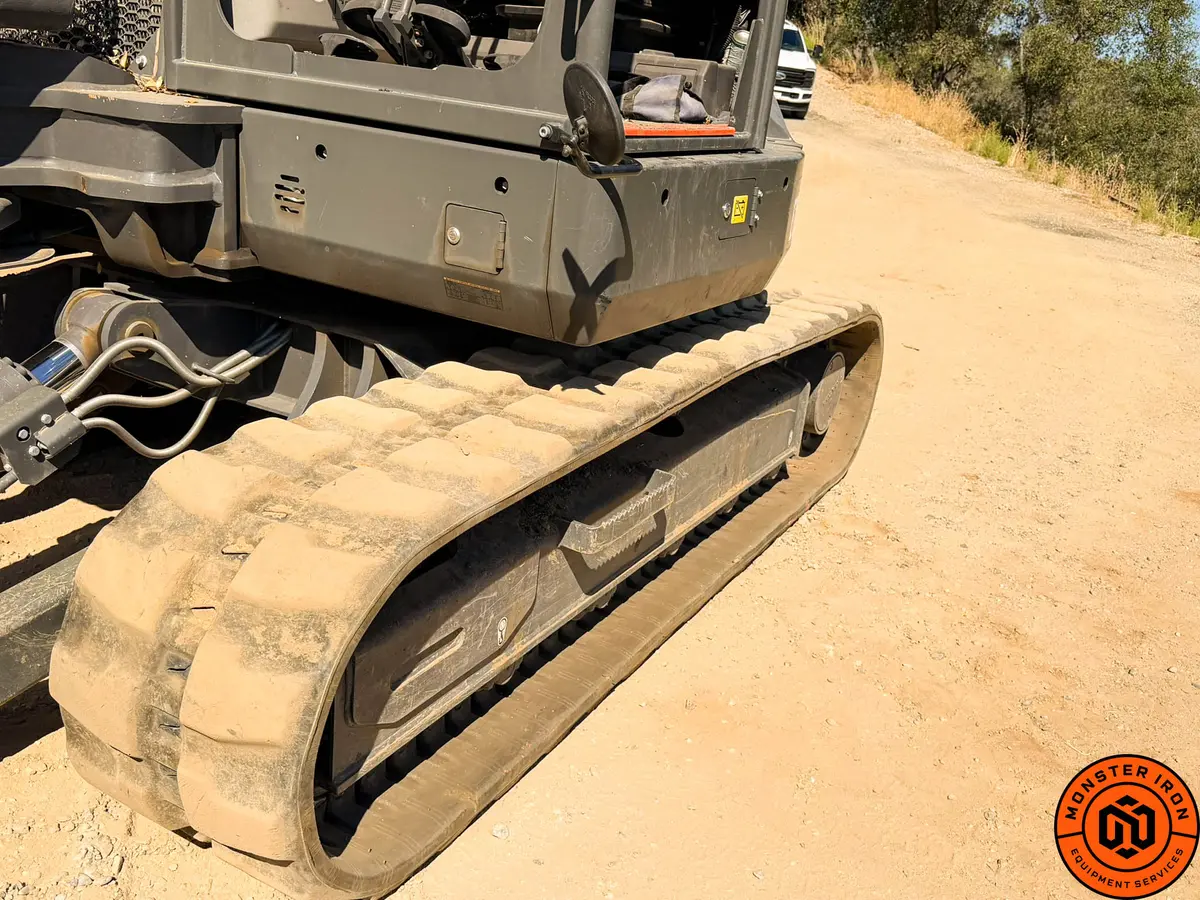

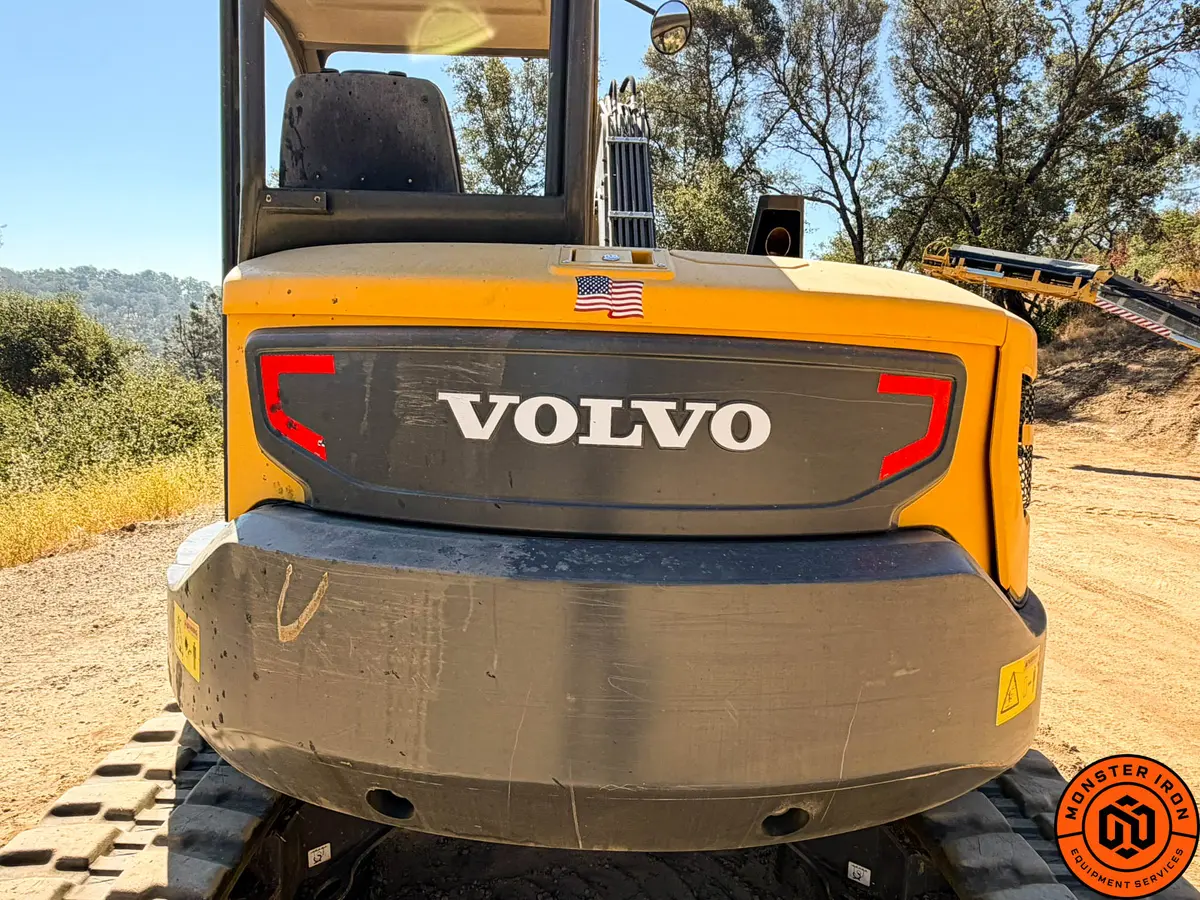

2020 VOLVO ECR88 EXCAVAVATOR WITH 550HRS. UNIT IS EQUIPPED WITH A TIER 4 FINAL ENGINE, HYDRAULIC COUPLER, HYDRAULIC THUMB, KNOCK-DOWN BLADE, RUBBER TRACKS, AND A SWING BOOM. THIS IS A ONE-OWNER MACHINE. VERY CLEAN AND TIGHT.
Volvo ECR88D Excavator Specifications

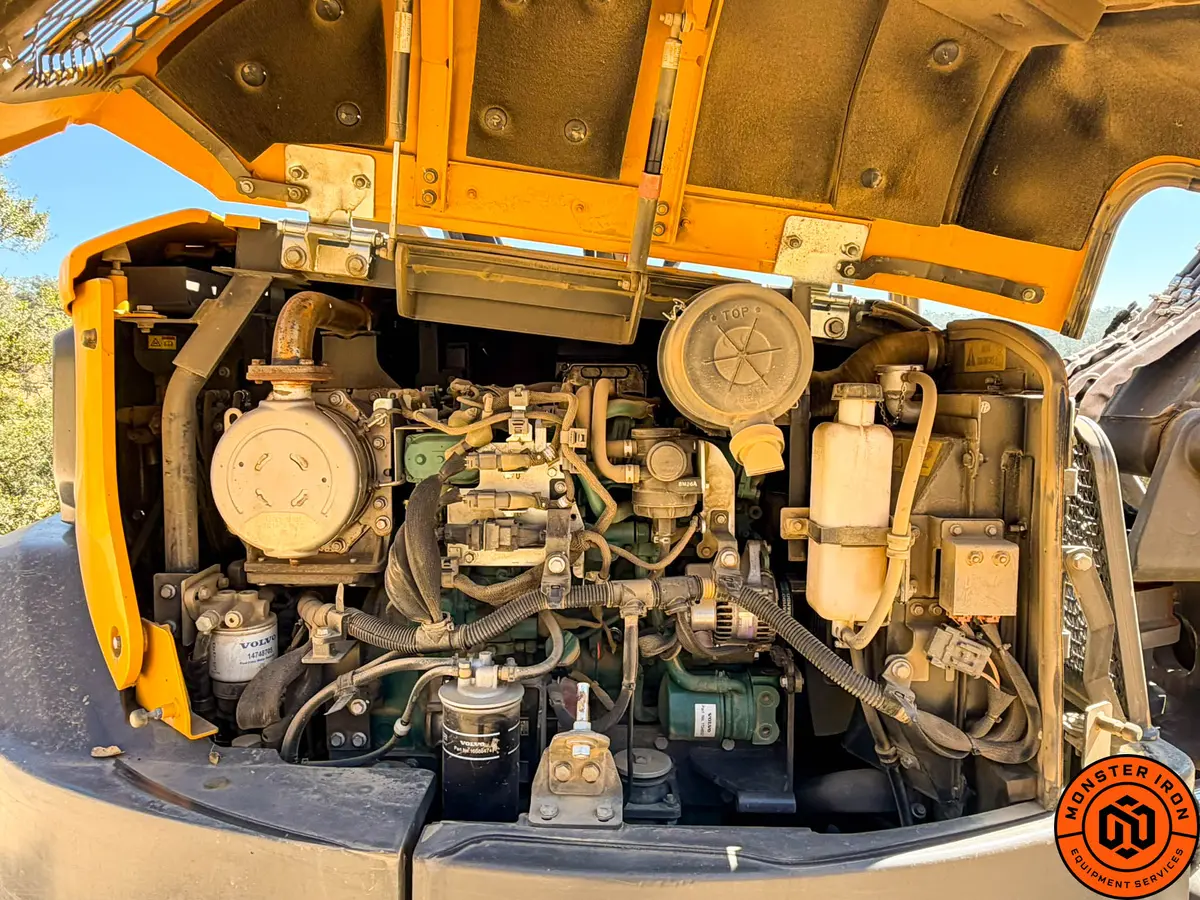

Engine
Specification
Value
Notes
Engine Model
Volvo D2.6H
Tier 4f / Stage V compliant diesel
Net Power
41 kW / 55 hp
ISO 9249 / SAE J1349
Gross Power
42.4 kW / 57 hp
SAE J1995
Max Torque
220 Nm / 162 ft-lbf
At 1,300 rpm
Displacement
2.62 L / 160 in³
4 cylinder
Bore x Stroke
87 × 110 mm / 3.4 × 4.3 in
Hydraulic System
System Type
Open-center, negative hydraulic system
Main Pump
Variable-displacement pump
Maximum Flow
2 × 68 + 54 L/min / 2 × 18 + 14 gal/min
Pilot Pump Flow
13 L/min / 3.4 gal/min
Implement Relief Pressure
29.4 MPa / 4,264 psi
Travel Relief Pressure
29.4 MPa / 4,264 psi
Swing Relief Pressure
24.5 MPa / 3,553 psi
Pilot Relief Pressure
3.4 MPa / 493 psi
Swing and Travel
Swing Speed
8.3 rpm
Swing Torque
22.9 kNm / 16,890 ft-lbf
Travel Speed Low
2.6 km/h / 1.6 mph
Travel Speed High
5.2 km/h / 3.2 mph
Max Drawbar Pull
65 kN / 14,613 lbf
Gradeability
35°
Service Refill Capacities
Fuel Tank
110 L / 29 gal
Hydraulic System Total
140 L / 37 gal
Hydraulic Tank
84 L / 22 gal
Engine Oil
10.2 L / 2.7 gal
Engine Coolant
9.3 L / 2.5 gal
Travel Reduction Unit
2 × 1.6 L / 2 × 0.4 gal
Undercarriage
Frame
Robust X-shaped frame
Sealed and greased track chains
Track Shoes
2 × 39
Link Pitch
154 mm / 6.1 in
Steel Shoe Width
450 / 600 mm — 17.7 / 23.6 in
Rubber Shoe Width
450 mm / 17.7 in
Bottom / Top Rollers
2 × 5 / 2 × 1
Weights and Ground Pressure
Machine Class
8.6–10.0 t / 19,010–22,050 lb
Operating Weight Range
8,752–9,376 kg / 19,300–20,671 lb
Varies by arm, track and counterweight
Counterweight Options
1,400 / 1,610 kg — 3,086 / 3,549 lb
Ground Pressure Range
30.7–41.4 kPa / 4.45–6.0 psi
Varies by configuration
Main Dimensions
Boom Length
3.55 m / 11 ft 8 in
Arm Options
1.7 m / 5 ft 7 in or 2.1 m / 6 ft 11 in
Overall Width
2,300 / 2,450 mm — 7 ft 7 in / 8 ft 0 in
Cab Height
2,715 mm / 8 ft 11 in
Tail Swing Radius
1,290 mm / 4 ft 3 in
Track Length
2,830 mm / 9 ft 3 in
Track Gauge
1,850 mm / 6 ft 1 in
Ground Clearance
405 mm / 1 ft 4 in
Without shoe grouser
Overall Length
6,370 / 6,420 mm — 20 ft 11 in / 21 ft 1 in
1.7 m / 2.1 m arm
Dozer Blade
Blade Height
470 mm / 1 ft 7 in
Blade Width
2,300 mm / 7 ft 7 in
Lifting Height
518 mm / 1 ft 8 in
Digging Depth
433 mm / 1 ft 5 in
Blade Float
Optional
Working Ranges
Max Digging Reach
6,970 / 7,350 mm — 22 ft 10 in / 24 ft 1 in
1.7 m / 2.1 m arm
Max Digging Depth
4,130 / 4,530 mm — 13 ft 7 in / 14 ft 10 in
1.7 m / 2.1 m arm
Max Cutting Height
6,790 / 7,050 mm — 22 ft 3 in / 23 ft 2 in
1.7 m / 2.1 m arm
Max Dumping Height
4,960 / 5,220 mm — 16 ft 3 in / 17 ft 2 in
1.7 m / 2.1 m arm
Min Front Swing Radius
2,560 / 2,640 mm — 8 ft 5 in / 8 ft 8 in
1.7 m / 2.1 m arm
Digging Forces
Bucket Breakout Force
Up to 57.2 kN / 12,860 lb
ISO 6015, direct-fit bucket
Arm Tearout Force
Up to 39.8 kN / 8,950 lb
ISO 6015
Bucket Rotation Angle
190°
Cab and Sound
Cab Sound Level
74 dB(A)
ISO 6396
External Sound Level
98 dB(A)
ISO 6395 / EU Noise Directive
A/C Refrigerant
R134a
If equipped
Features and Benefits
Compact Radius Excavator Performance
Volvo ECR88D compact excavator delivers strong performance in the 8.6–10.0 metric ton class.
Short tail swing design helps the machine work efficiently in confined areas.
Heavy counterweight and strong undercarriage improve stability and lifting performance.
Hydraulics and Attachment Versatility
Open-center hydraulic system is matched to the engine and components for smooth control and fast response.
Optional auxiliary hydraulics support a wide range of attachments.
Available hydraulic piping supports breaker, shear, slope, rotator, grapple and quick coupler applications.
Fuel Efficiency and Engine Management
Volvo Tier 4f / Stage V engine is designed for strong output with low fuel consumption.
ECO mode helps provide working performance while saving fuel.
Auto idle reduces engine speed when controls are inactive.
Optional auto engine shutdown helps lower fuel costs, noise and maintenance.

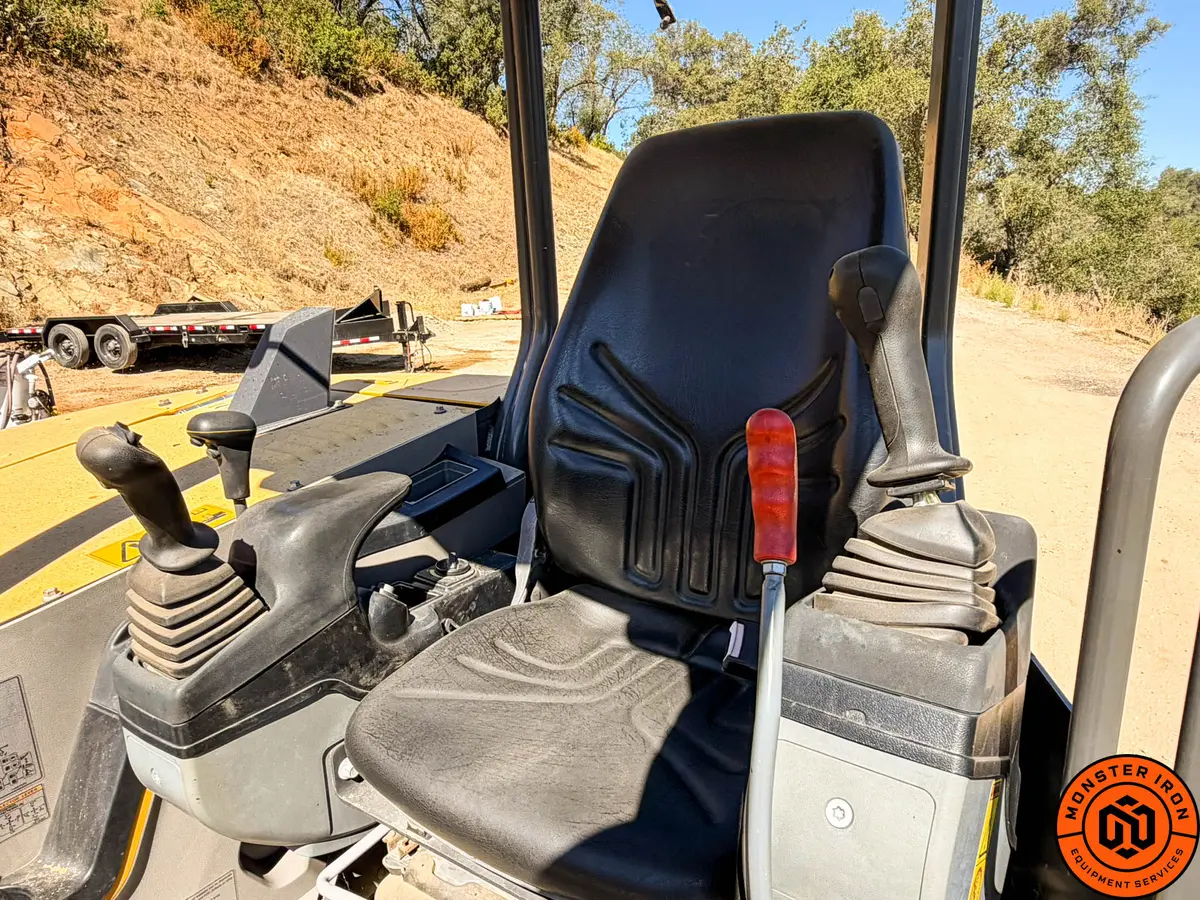

Operator Comfort and Visibility
Purpose-designed Volvo cab provides excellent all-around visibility with slim cab pillars and large windows.
Low in-cab sound level supports comfortable operation.
Available cab, Care Cab, heater, air conditioning, upgraded seats and radio options.
Durability and Serviceability

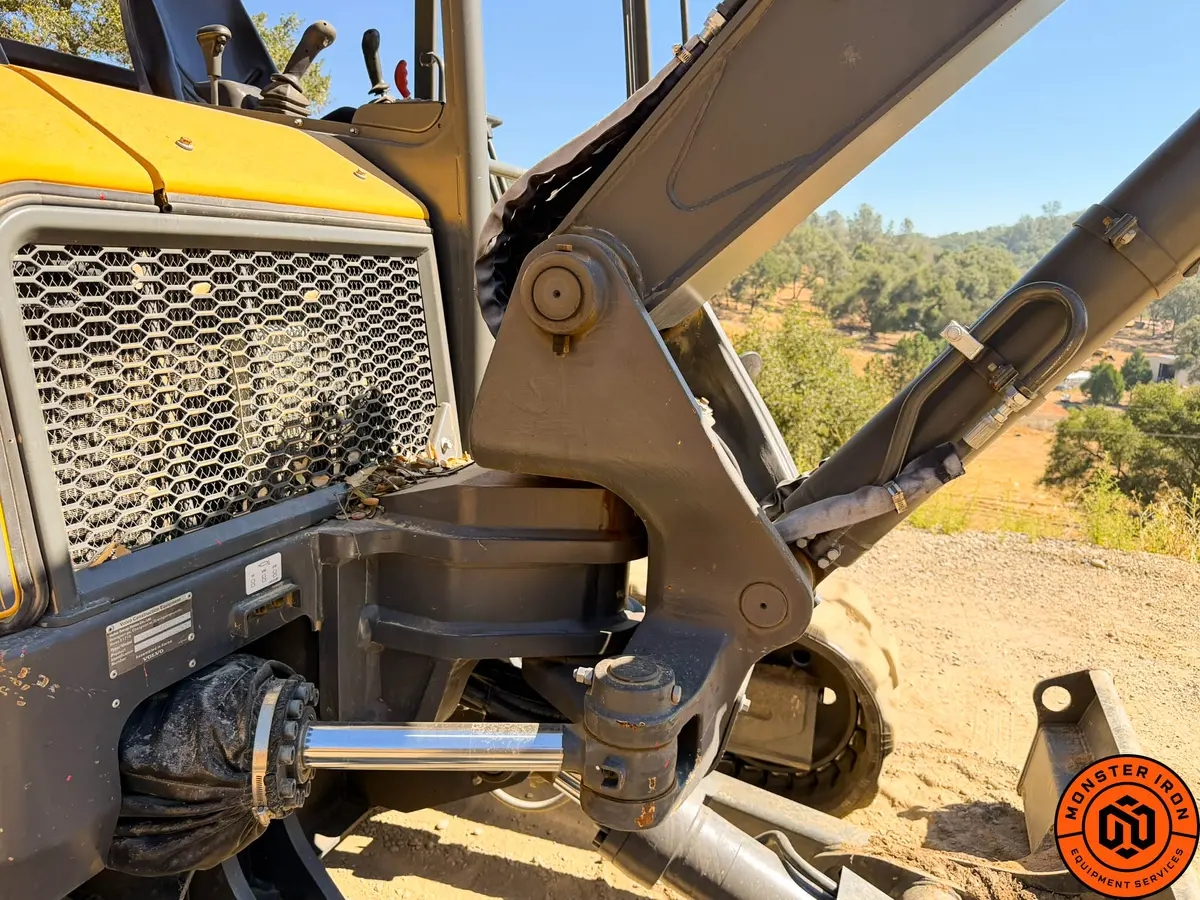

Single pivot pin design increases support between the main frame and front equipment.
Durable X-shaped undercarriage improves stability and machine life.
Ground-level service access and grouped filters make regular maintenance easier.
MATRIS and VCADS Pro support machine monitoring, diagnostics and programming.
Specifications are based on Volvo Construction Equipment product guide Ref. No. 20062440_A, English-22, dated 2023.12. Equipment specifications and options may vary by machine configuration and market.
