Description

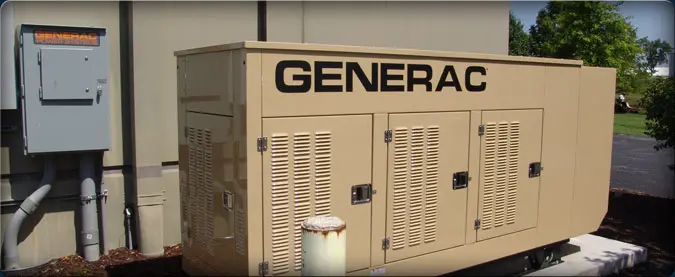

BRAND NEW 150KW GENERAC QT15068C, FULL WARRENTY, AUTHORIZED DEALER
BRAND NEW 150KW QT15068C(SCAQMD COMPLIANT), FULL MANUFACTERER WARRANTY, AVAILABLE IN SINGLE OR THREE PHASE.
SPECS:
Manufacturer: Generac
Model #: QT13068XVAY
Color: Grey
Enclosure: Aluminum
Engine Make: Generac
Transfer Switch Included?: No
Price (All Voltages): $28,938.00
Output
Rated Power: 150 kW
Phase: 3
Frequency: 60 Hz
Voltage: 120/208
Voltage: 120/240
Voltage: 277/480
Rated Amps (208-Volt): 520
Rated Amps (240-Volt): 451
Rated Amps (480-Volt): 225
Rotor Poles: NA
Mainline Circuit Breaker (208-Volt): 600 Amps
Mainline Circuit Breaker (240-Volt): 500 Amps
Mainline Circuit Breaker (480-Volt): 250 Amps
Motor/Performance
Engine Type: V 10-Cylinder
Intake Method: Carburetor
Cylinder Block: NA
HP/L: 254/6.8
Number of Cylinders: 10
Compression Ratio: 9:1
Lubrication Method: Pressurized
Valve Arrangement: Overhead
Engine Cooling: Liquid
Engine rpm: 3600
Fan Type: Belt Driven
Governor System: Electronic
Ignition System: Electronic
Starter Voltage (DC): 12
Battery Required (Volts/Cold-Cranking Amps): 12/525
Startup Delay (After Power Interruption): Programmable
Engine Warm-Up Duration: 5 Seconds
Engine Cool-Down Period: 1 Minute
Fuel Type: Liquid Propane(LP)
Fuel Consumption (@ Exercise): 1.7 Gallons/Hour
Fuel Consumption (@ 25% Load): 6.09 Gallons/Hour
Fuel Consumption (@ 50% Load): 11.72 Gallons/Hour
Fuel Consumption (@ 75% Load): 16.33 Gallons/Hour
Fuel Consumption (@ Full Load): 22.57 Gallons/Hour
Fuel Consumption (@ Exercise): 63 Cubic Feet/Hour
Fuel Consumption (@ 25% Load): 224 Cubic Feet/Hour
Fuel Consumption (@ 50% Load): 431 Cubic Feet/Hour
Fuel Consumption (@ 75% Load): 600 Cubic Feet/Hour
Fuel Consumption (@ Full Load): 830 Cubic Feet/Hour
Convenience Features
Automatic Voltage Regulation: Yes
Low-Voltage Protection: Yes
High-Voltage Protection: Yes
Low-Oil Shutdown: Yes
Overspeed Shutdown: Yes
High-Temperature Shutdown: Yes
Starter-Overcrank Protection: Yes
Low-Battery Protection: Yes
Built-In Battery Charging Capability: Yes
UL Listed: Yes
External-Fault Capability: Yes
Internal-Fault Protection: Yes
Incorrect-Wiring Protection: Yes
Mainline Circuit-Breaker Protection: Yes
Safety Fusing: Yes
Measurables
Weight: 2492 lbs
Dimensions (Inches): 115.2L x 36.8W x 78.9H
Decibels (@ Exercise – 7 Meters): 66
Decibels (@ Full Load – 7 Meters): 79
Compliance: 50-State US
Additional Features
Class-H insulated alternator can withstand temperatures to 150 degrees
All QT-series generators designed and manufactured to work seamlessly with Generac transfer switches
V-10 engine (6.8 liters, carbureted)
Easy-access housing maintenance friendly
High-temperature shutdown
Protected by mainline circuit breaker and safety fuse
