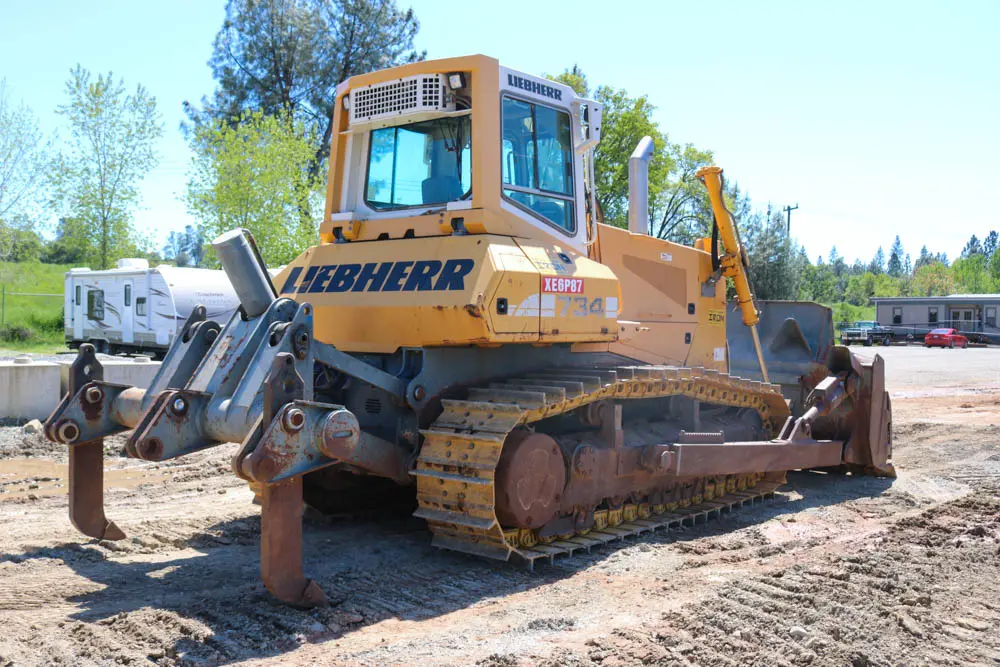

2009 LIEBHERR 734XL DOZER
Category
Dozers
Condition
Used
Location
4024 Throwita Way, Placerville, CA 95667
Brand
LIEBHERR
Model
734XL
Hours of Usage
-
Year of Manufacture
2009
View More Details
Interested in this product?
Contact the seller for price and availability.
Send Message to the Seller

Description

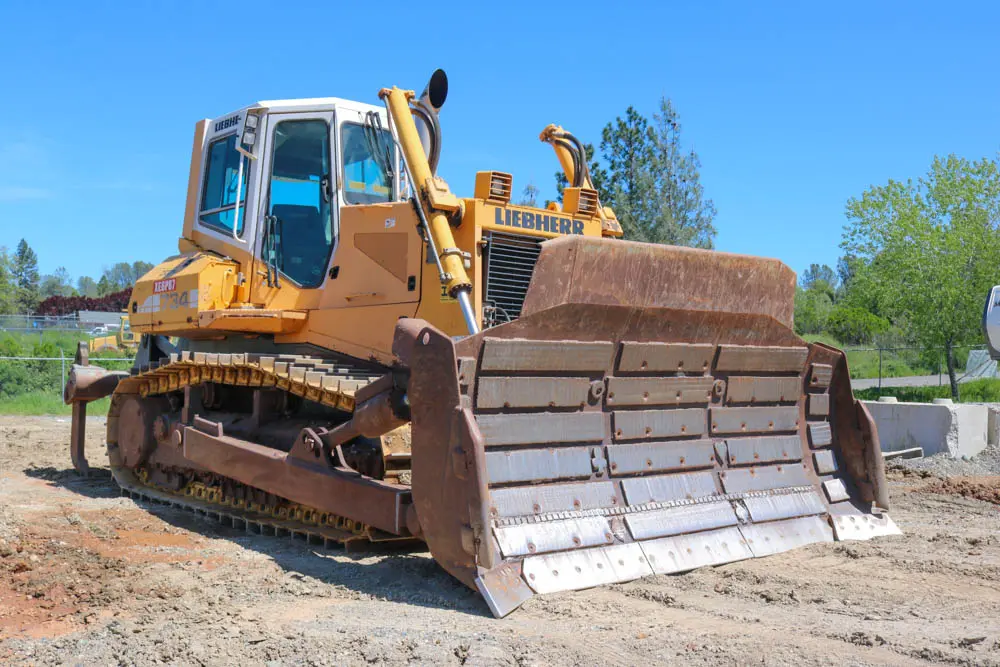

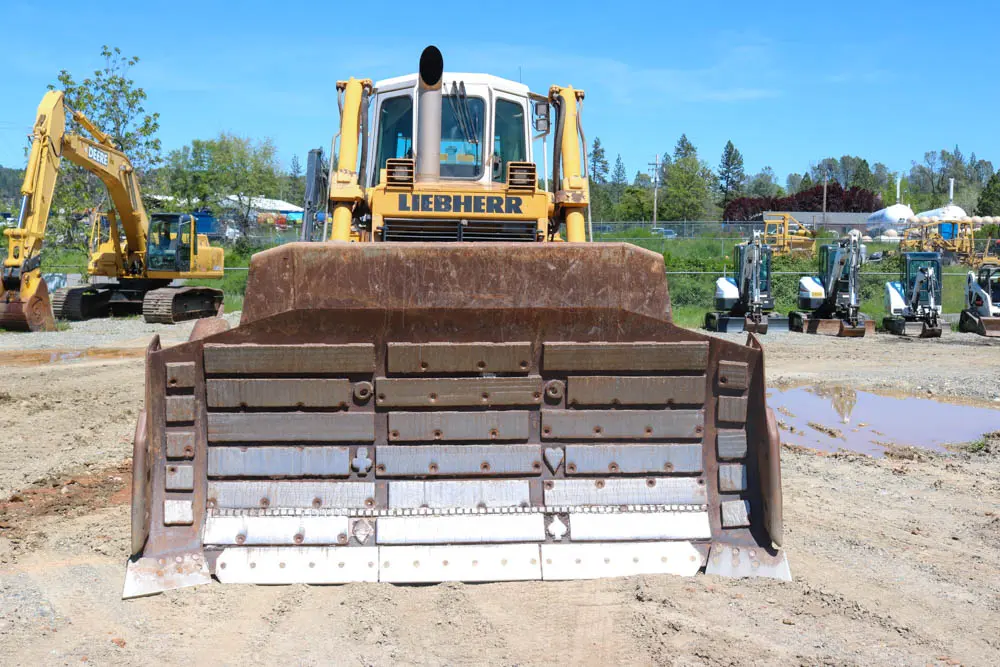

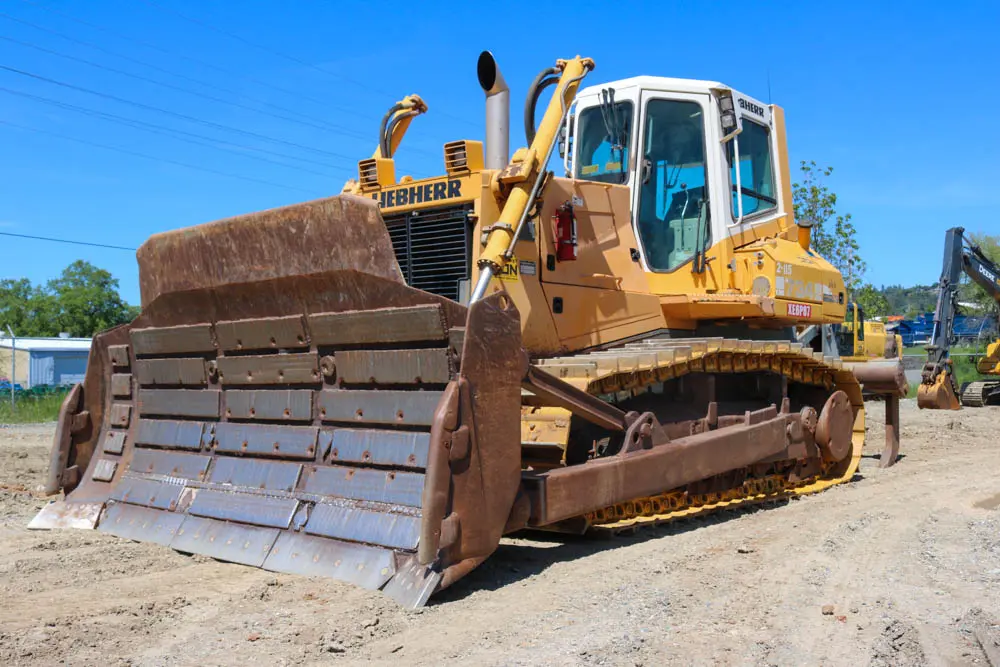

2009 LIEBHERR 734XL DOZER- $79,900

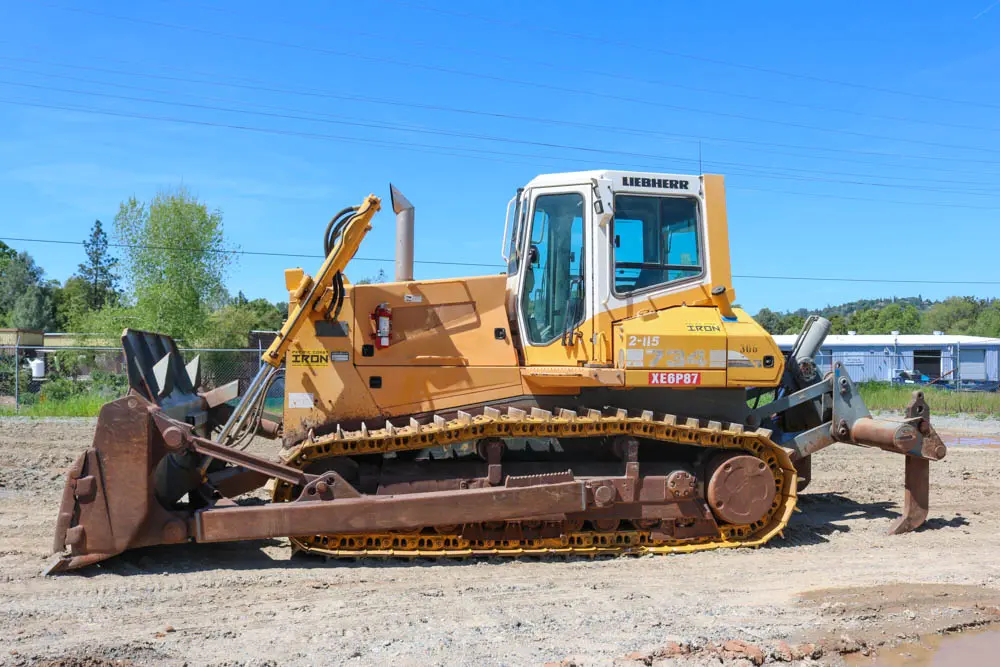

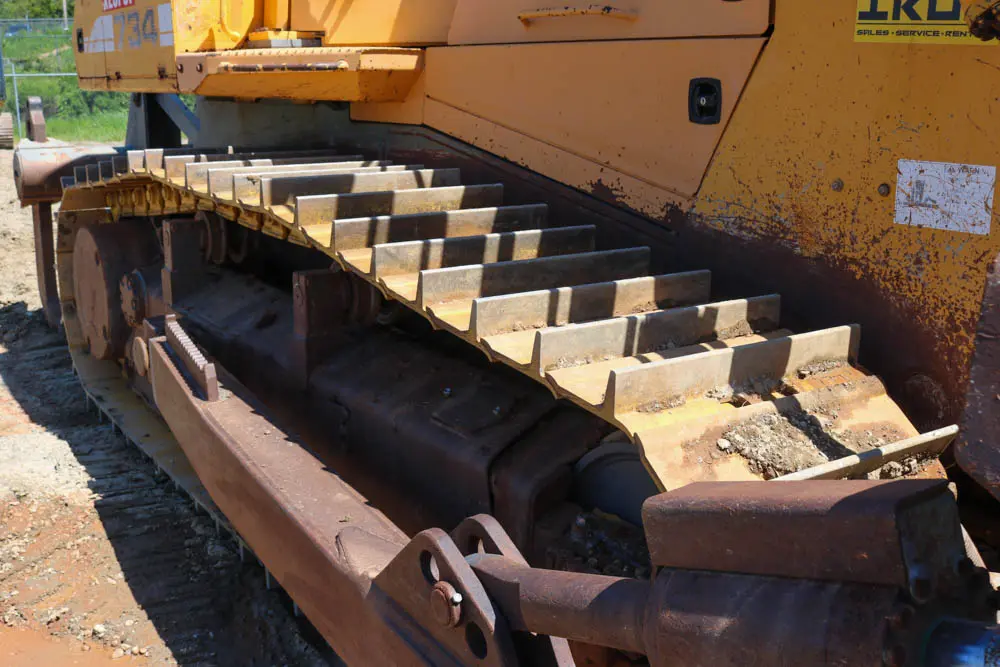

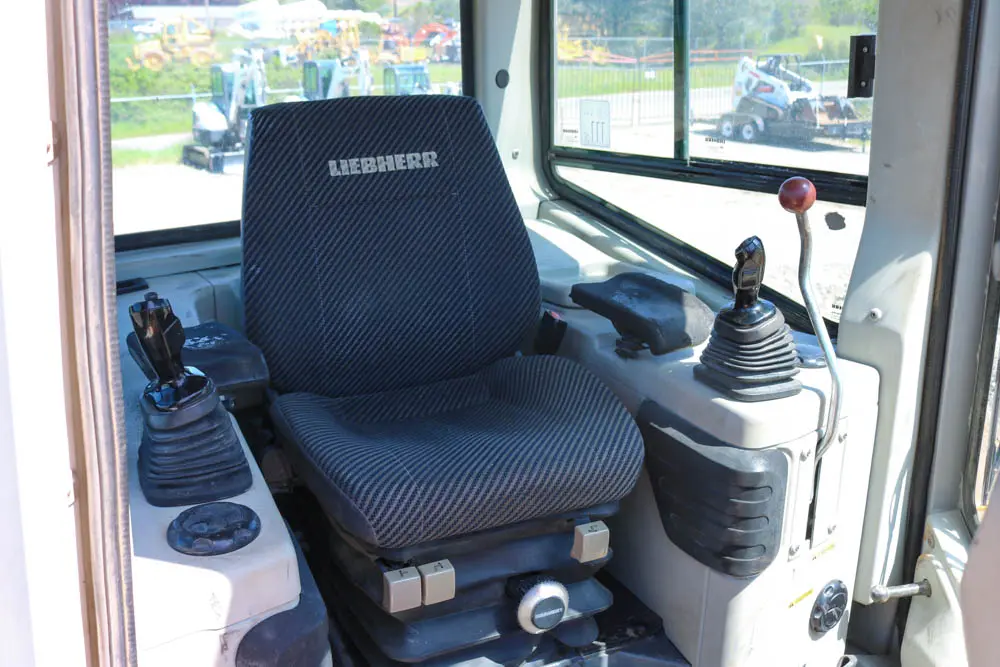

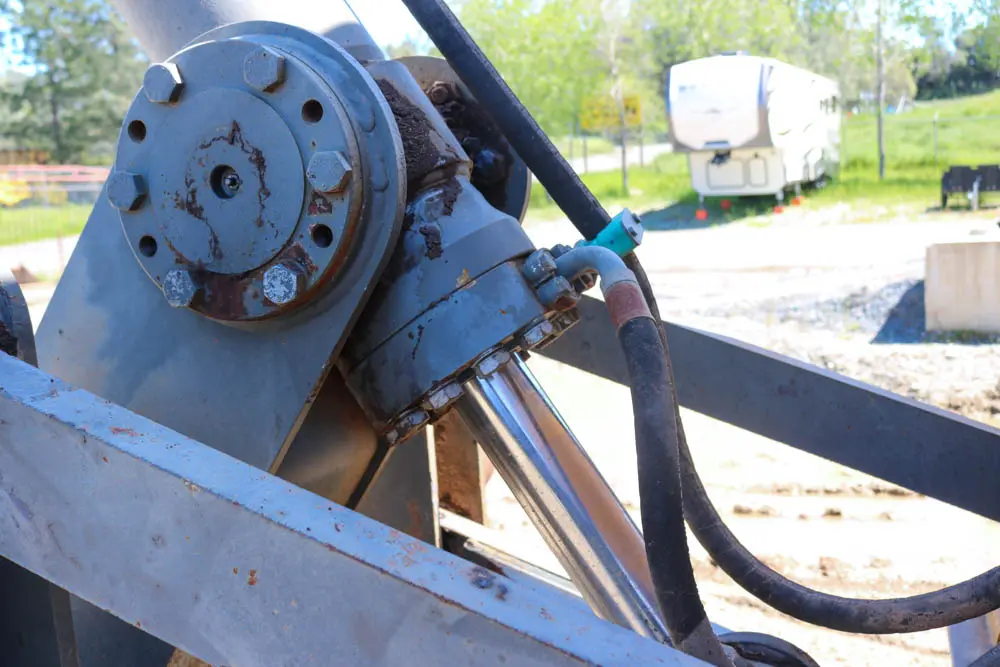

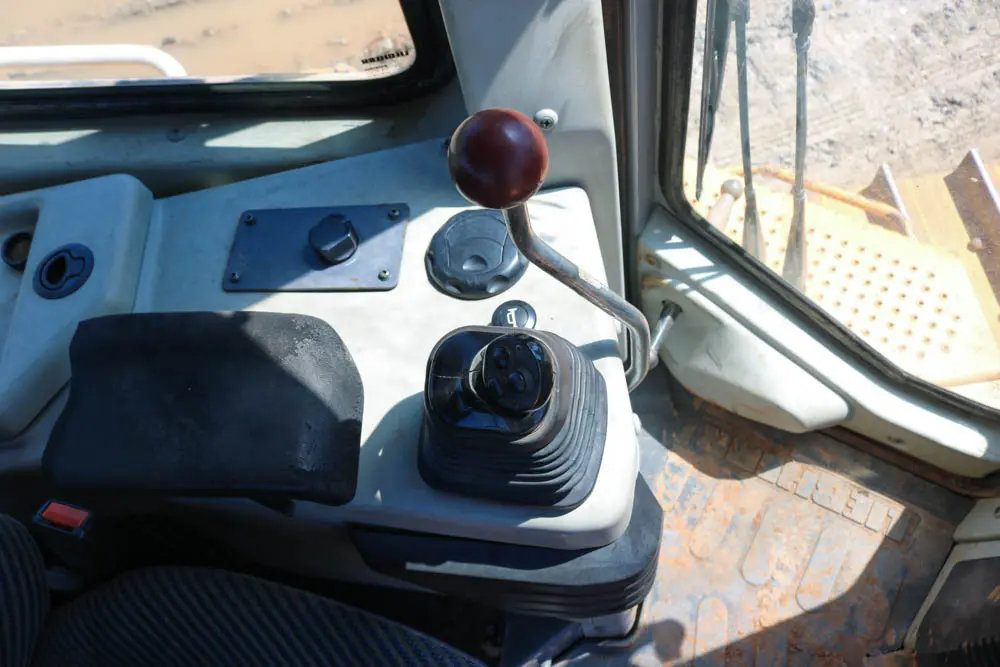

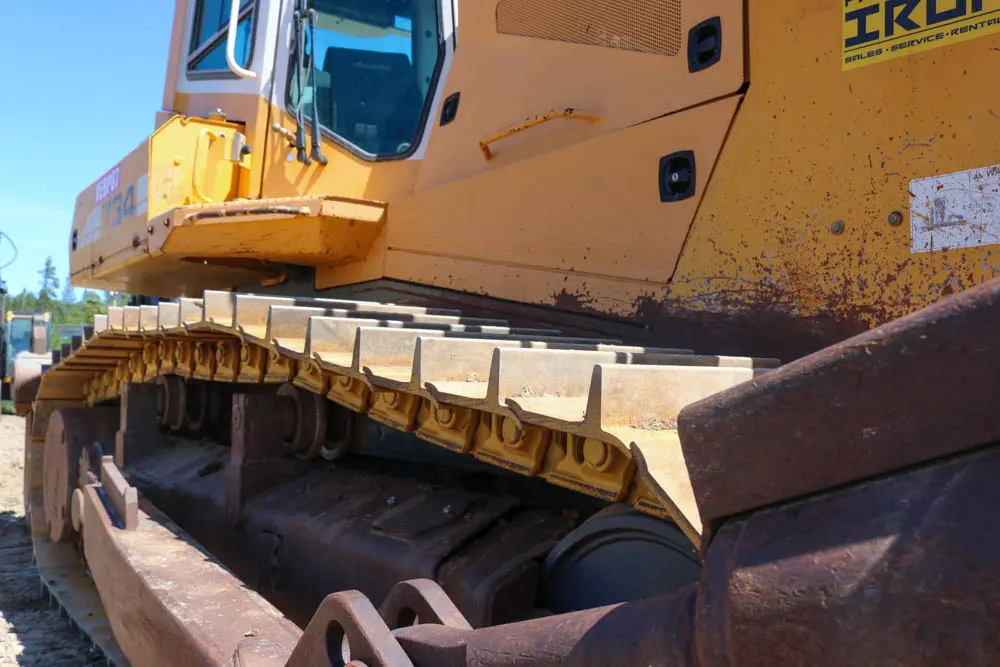

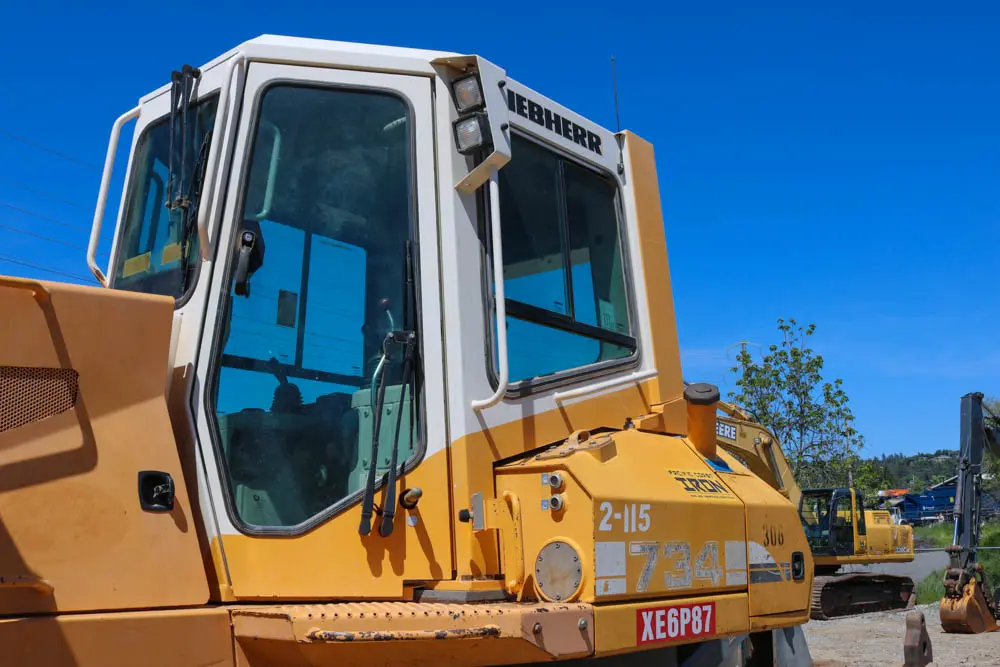

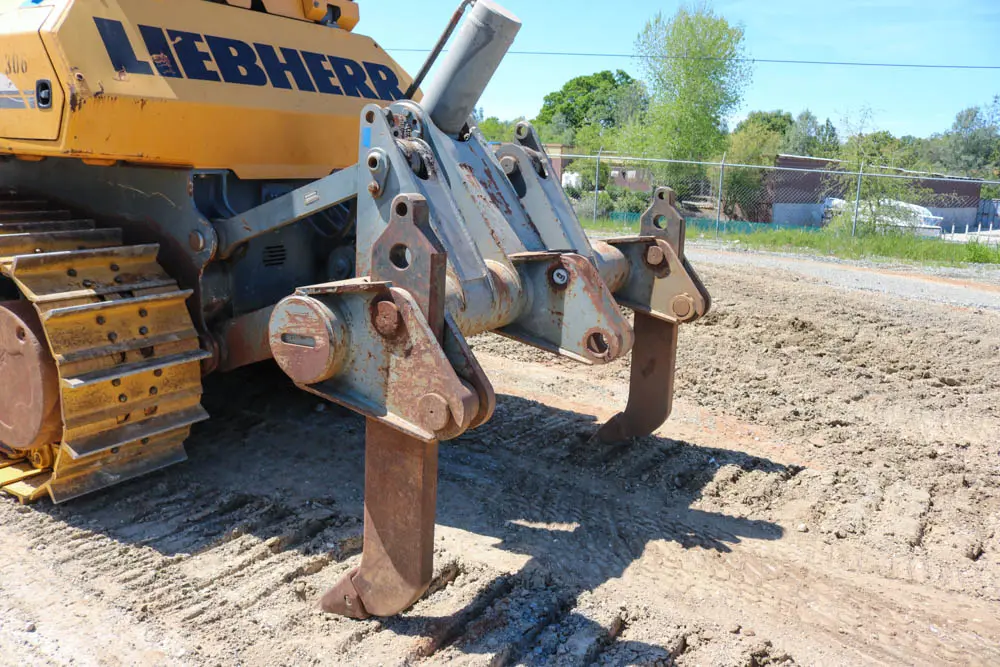

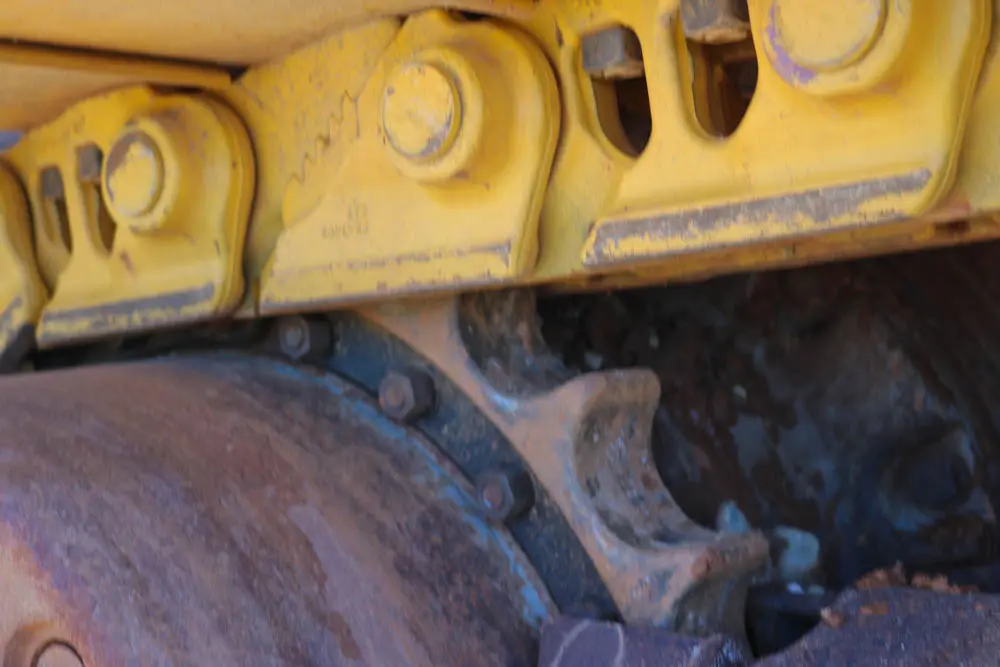

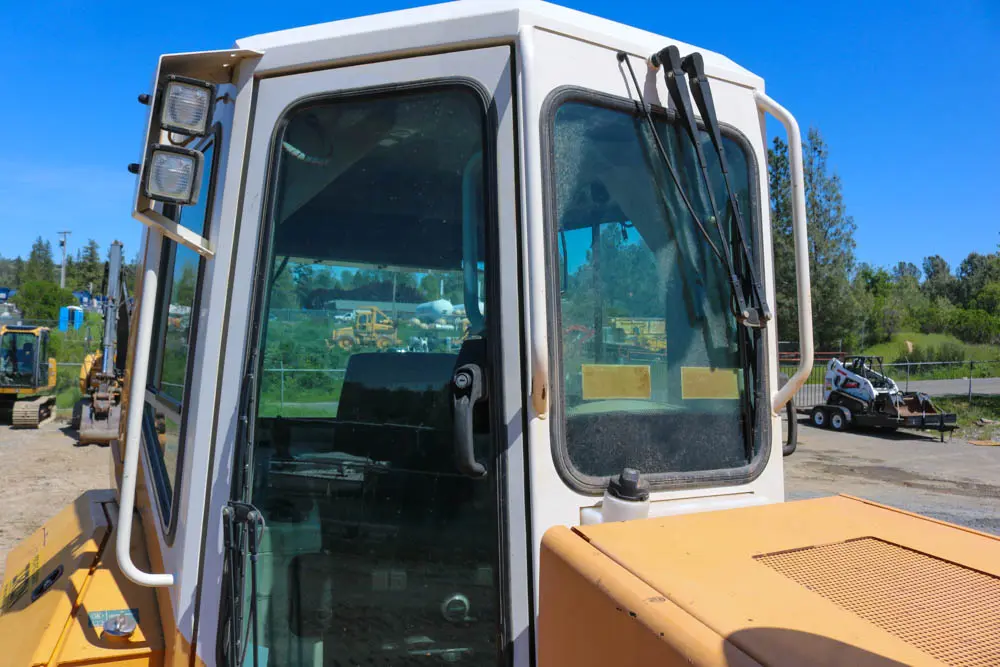

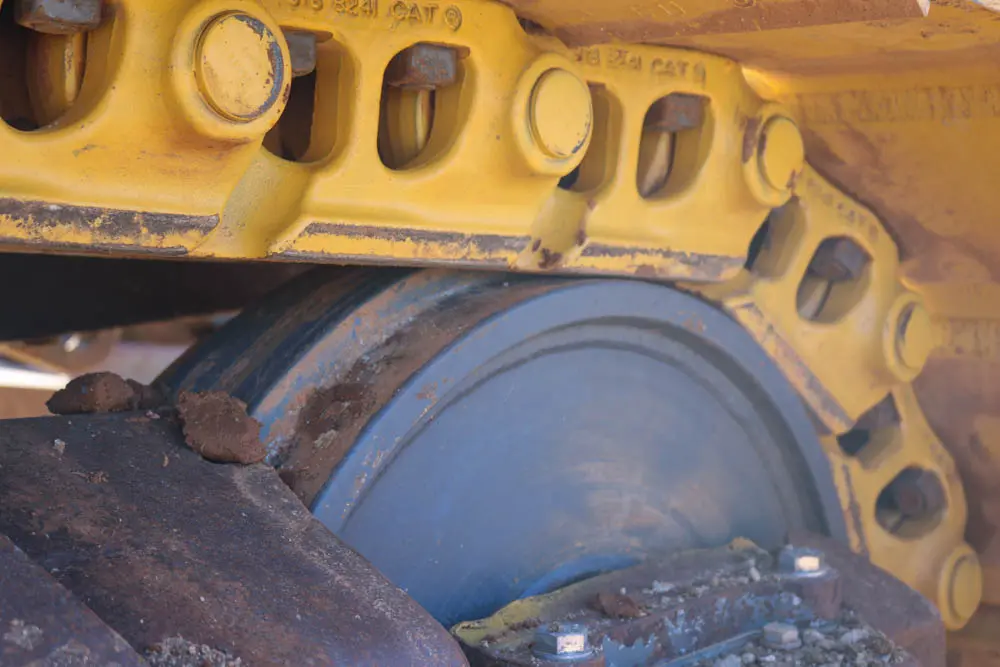

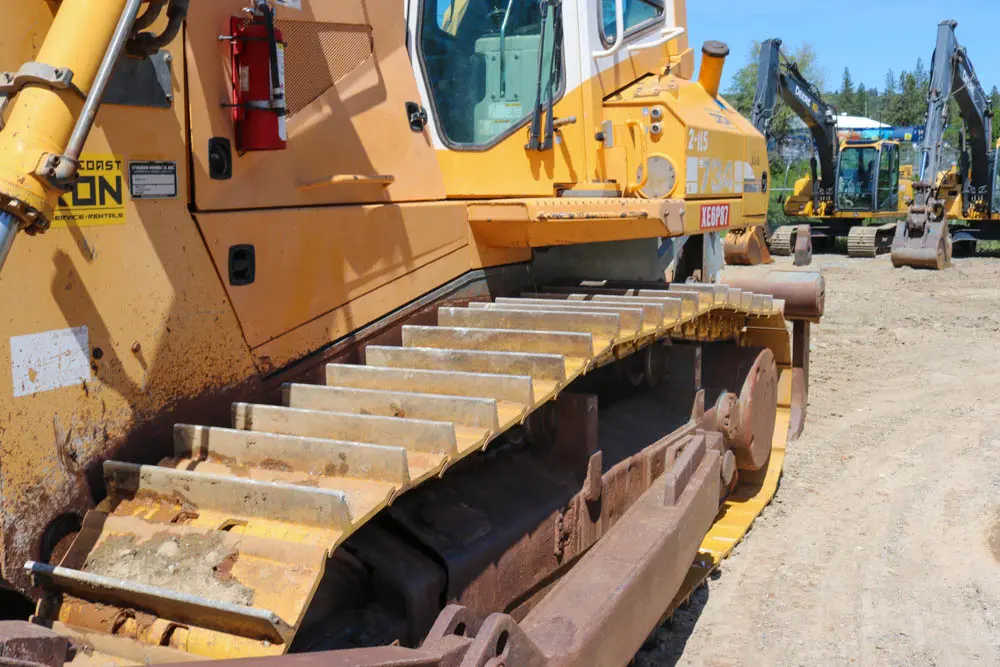

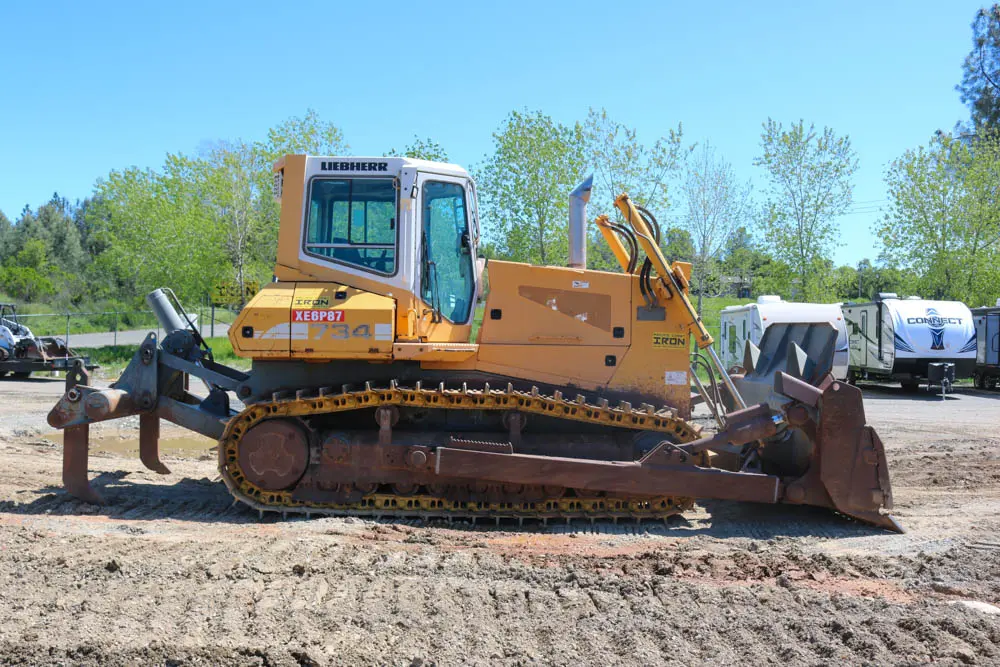

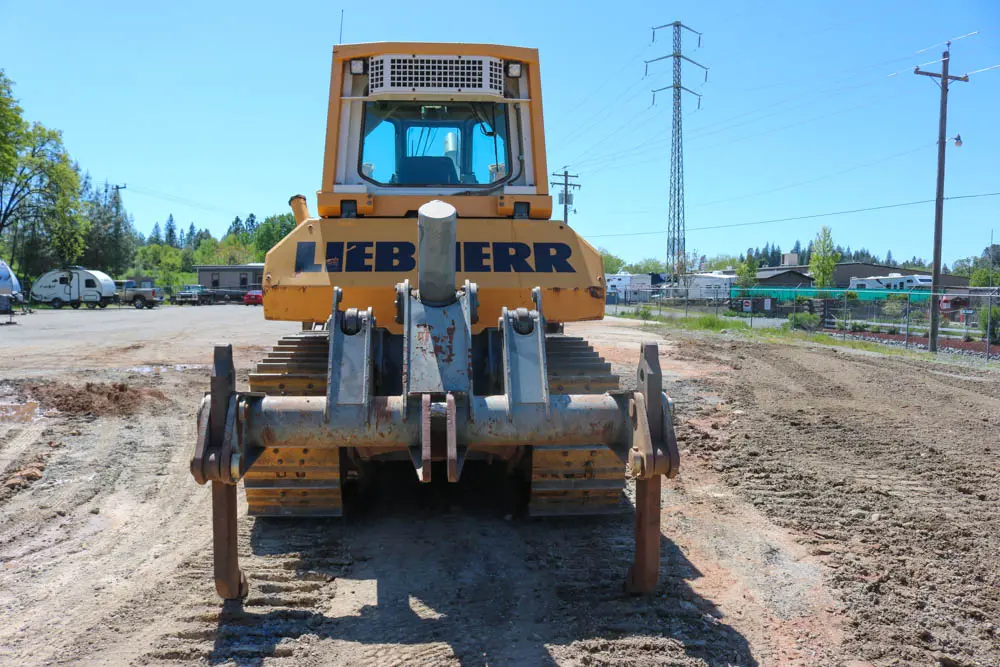

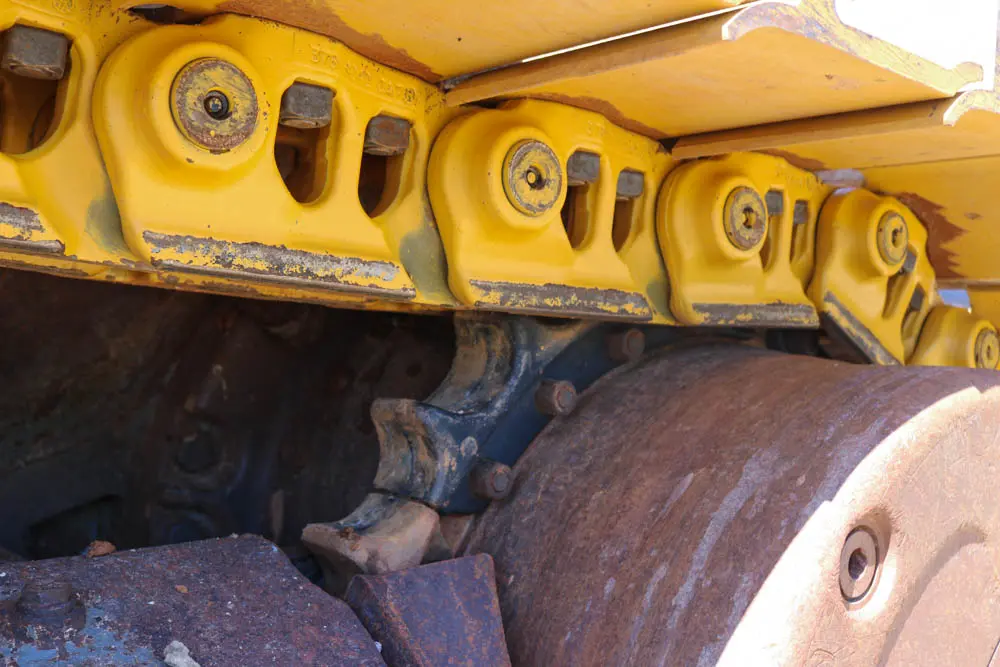

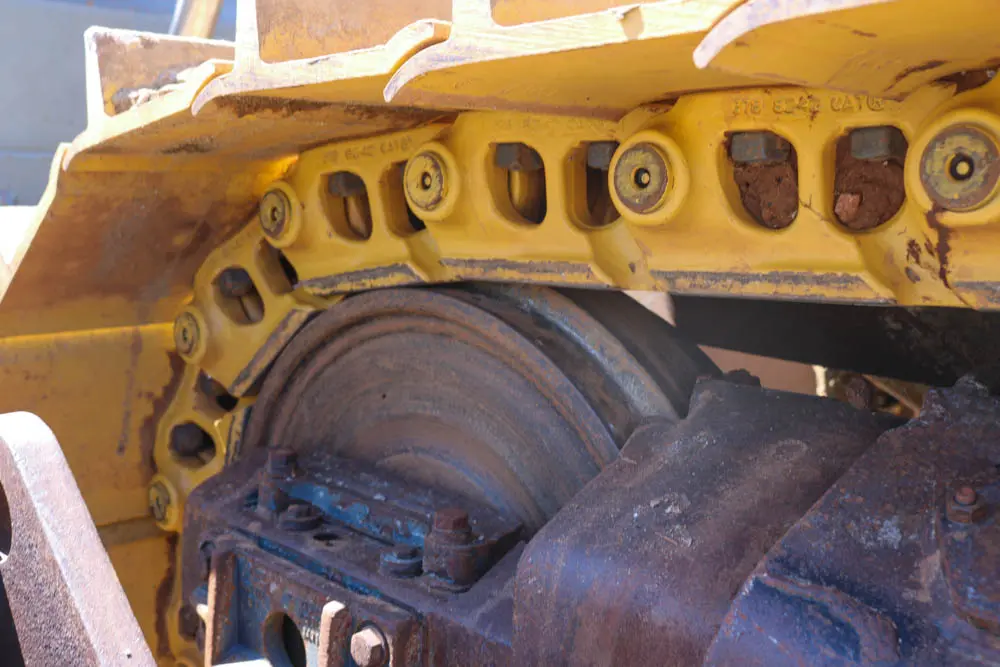

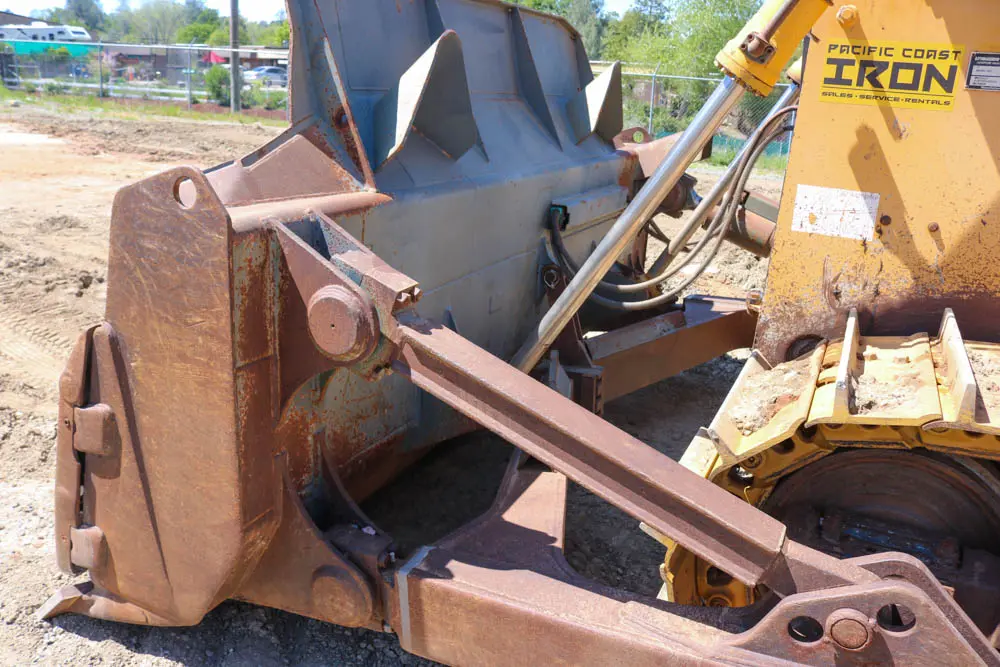

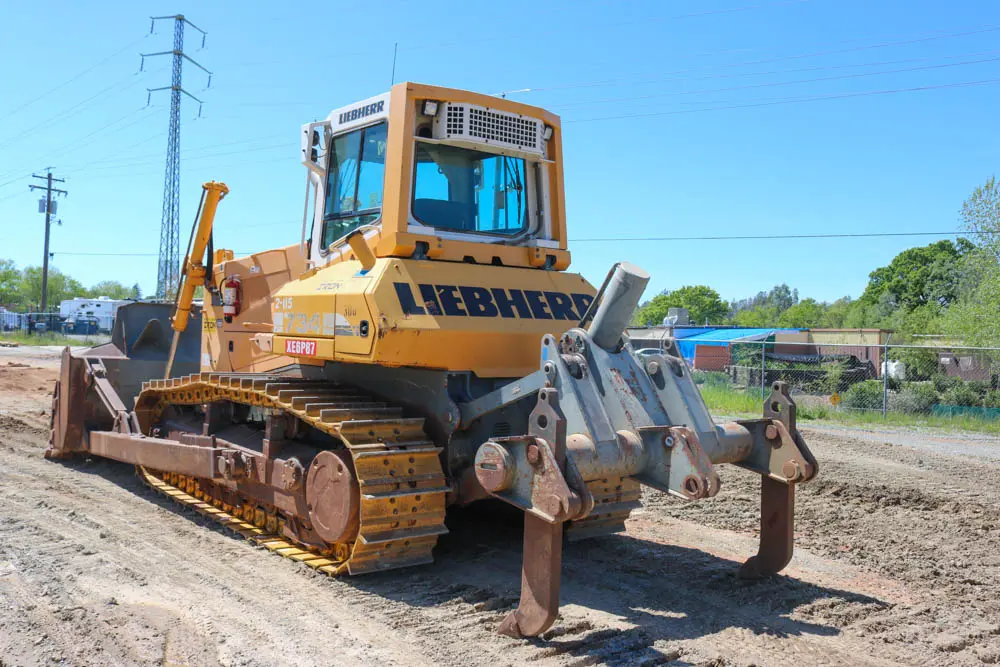

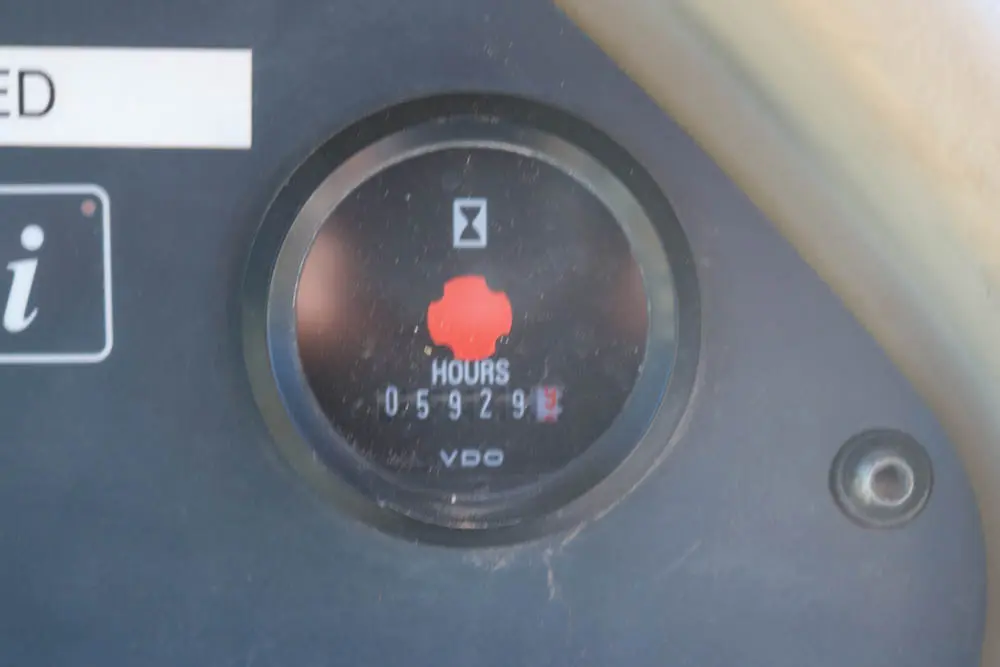

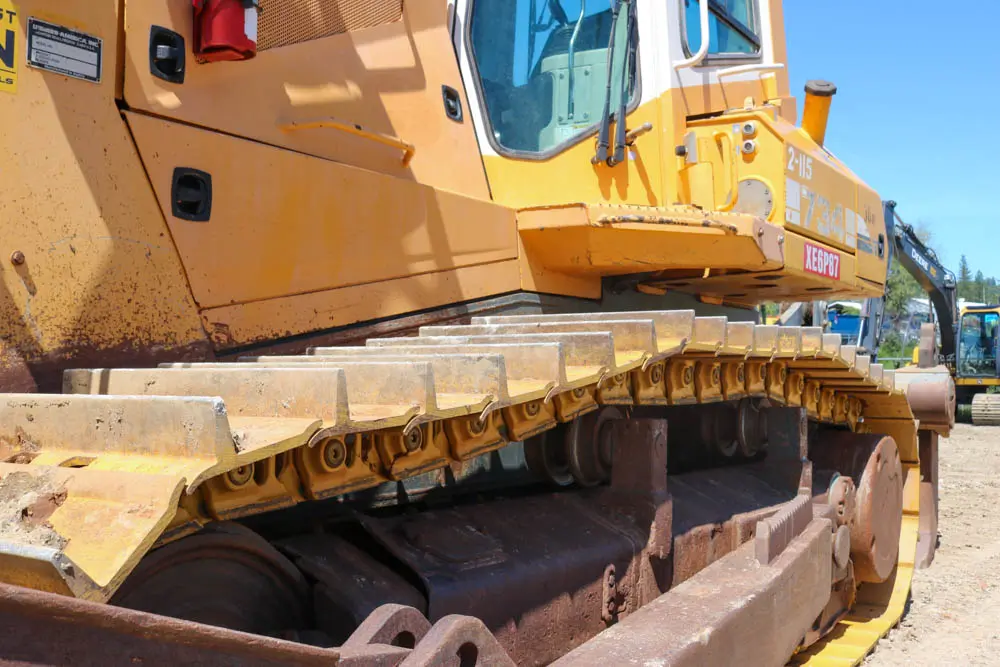

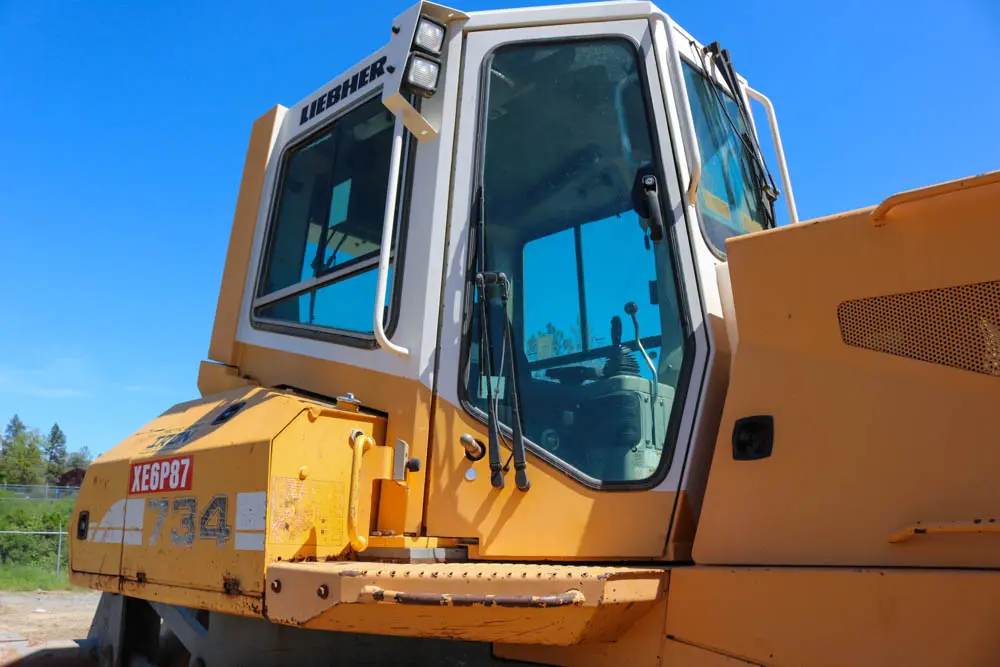

2009 LIEBHERR 734XL CRAWLER DOZER WITH ONLY 6100HRS!! THIS UNIT IS BASICALLY A DEERE 950J WITH LIEBHERR BADGING. UNIT IS EQUIPPED WITH EROPS HEAT/AC, SU BLADE WITH SINGLE TILT, MS RIPPER, TIER 3 LIEBHERR ENGINE AND A BRAND NEW UC. SPROCKETS, PADS,(24″) CHAINS, RIGHT IDLER ARE ALL NEW!! VERY NICE DOZER AND VERY EASY TO GET PARTS FOR. UNIT IS READY TO GO TO WORK. INSPECTION REPORT AVAILIBLE UPON REQUEST.
SPECIFACATIONS:
Selected Dimensions
Dimensions
A. Length w/ Blade
19.5 ft in
5950 mm
B. Width Over Tracks
8.9 ft in
2724 mm
C. Height to Top of Cab
10.7 ft in
3266 mm
D. Length of Track on Ground
10.6 ft in
3240 mm
E. Ground Clearance
1.6 ft in
500 mm
F. Length w/o Blade
14.1 ft in
4291 mm
Undercarriage
H. Standard Shoe Size
24 in
609.6 mm
Specification

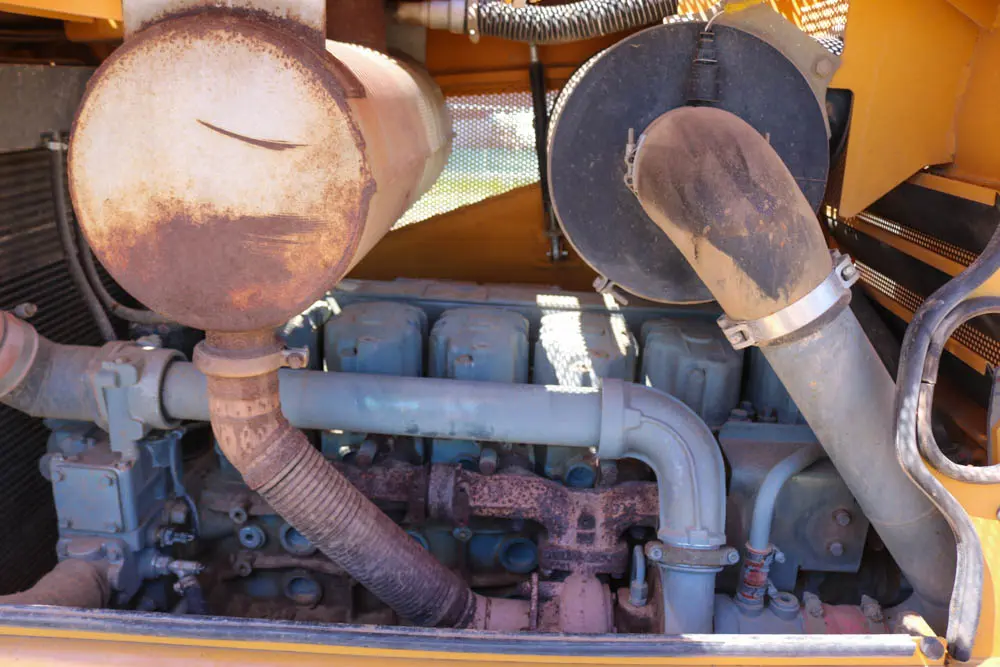

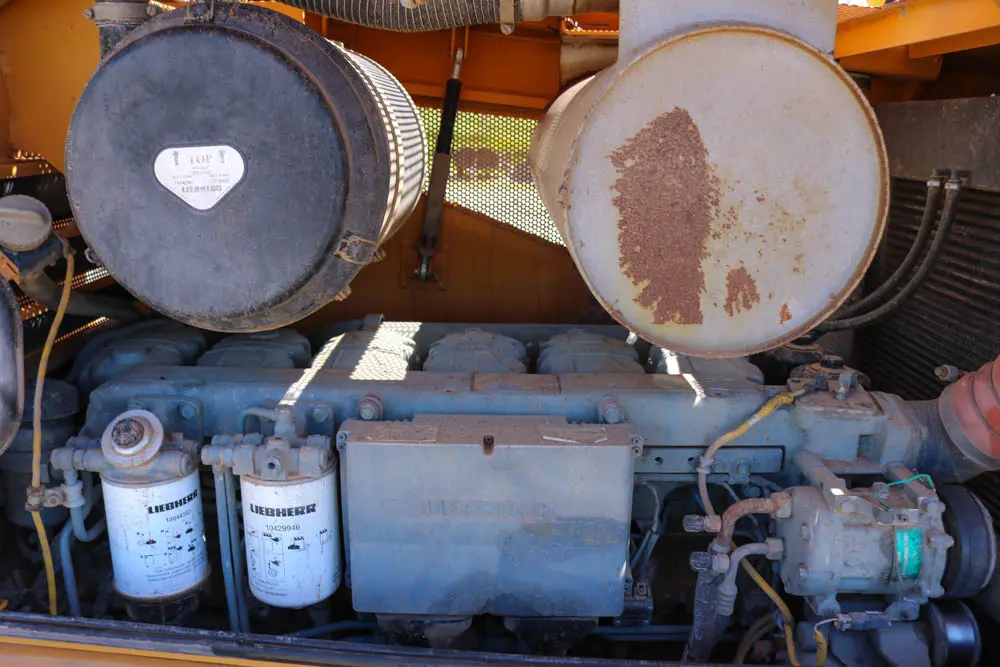

Engine
Make
Liebherr
Model
D 926 TI-E
Gross Power
200 hp
149.1 kw
Net Power
197 hp
146.9 kw
Power Measured @
1800 rpm
Displacement
610 cu in
10 L
Number of Cylinders
6
Aspiration
Direct injection turbo-charged
Operational
Operating Weight
47406 lb
21503 kg
Fuel Capacity
116.2 gal
440 L
Cooling System Fluid Capacity
11.4 gal
43 L
Engine Oil Capacity
5.8 gal
22 L
Hydraulic Fluid Capacity
42.8 gal
162 L
Final Drives Fluid Capacity
3.7 gal
14 L
Operating Voltage
24 V
Alternator Supplied Amperage
55 amps
Transmission
Type
Hydrostatic travel drive and control
Number of Forward Gears
3
Number of Reverse Gears
2
Max Speed – Forward
6.8 mph
11 km/h
Max Speed – Reverse
4.8 mph
7.7 km/h
Undercarriage
Ground Pressure
7.7 psi
53 kPa
Standard Shoe Size
24 in
609.6 mm
Number of Track Rollers per Side
8
Hydraulic System
Pump type
swash plate piston pump
Relief Valve Pressure
2900 psi
19994.8 kPa
Pump Flow Capacity
55.2 gal/min
209 L/min
Standard Blade
Width
11 ft in
3363 mm
Height
55.1 in
1400 mm
Capacity
7.7 yd3
5.9 m3
Blade Angle (both directions)
 degrees
Cutting Depth
22 in
558 mm
Dimensions
Length w/o Blade
14.1 ft in
4291 mm
Length w/ Blade
19.5 ft in
5950 mm
Width Over Tracks
8.9 ft in
2724 mm
Height to Top of Cab
10.7 ft in
3266 mm
Length of Track on Ground
10.6 ft in
3240 mm
Ground Clearance
1.6 ft in
500 mm
