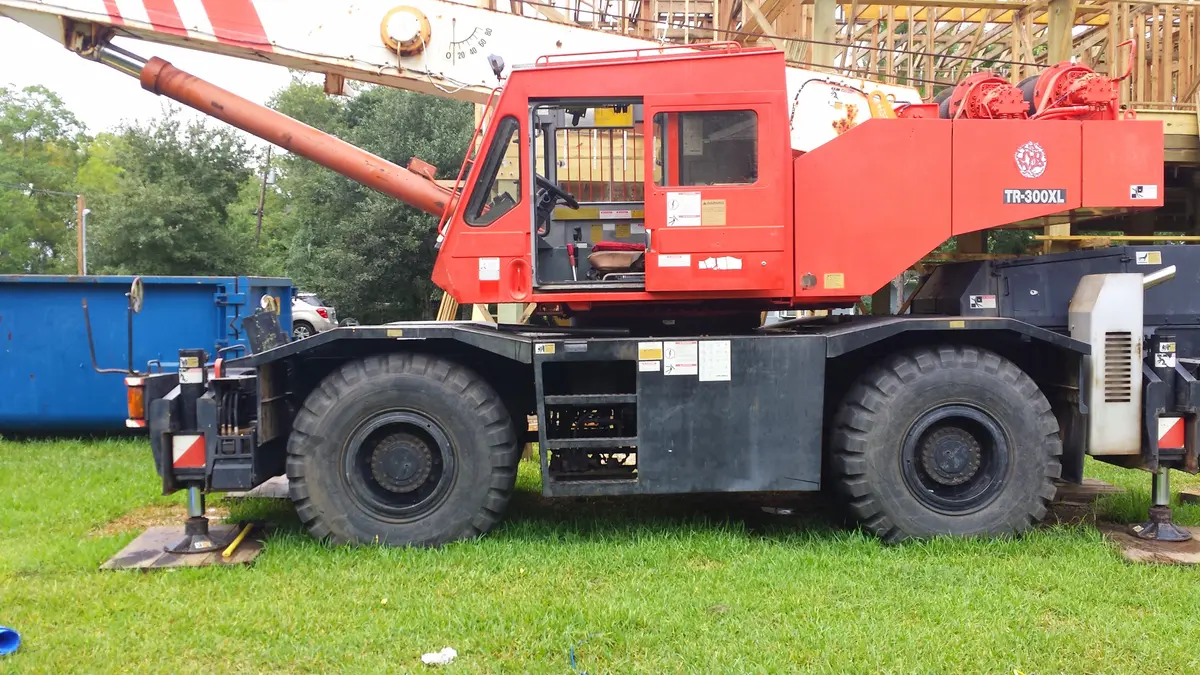

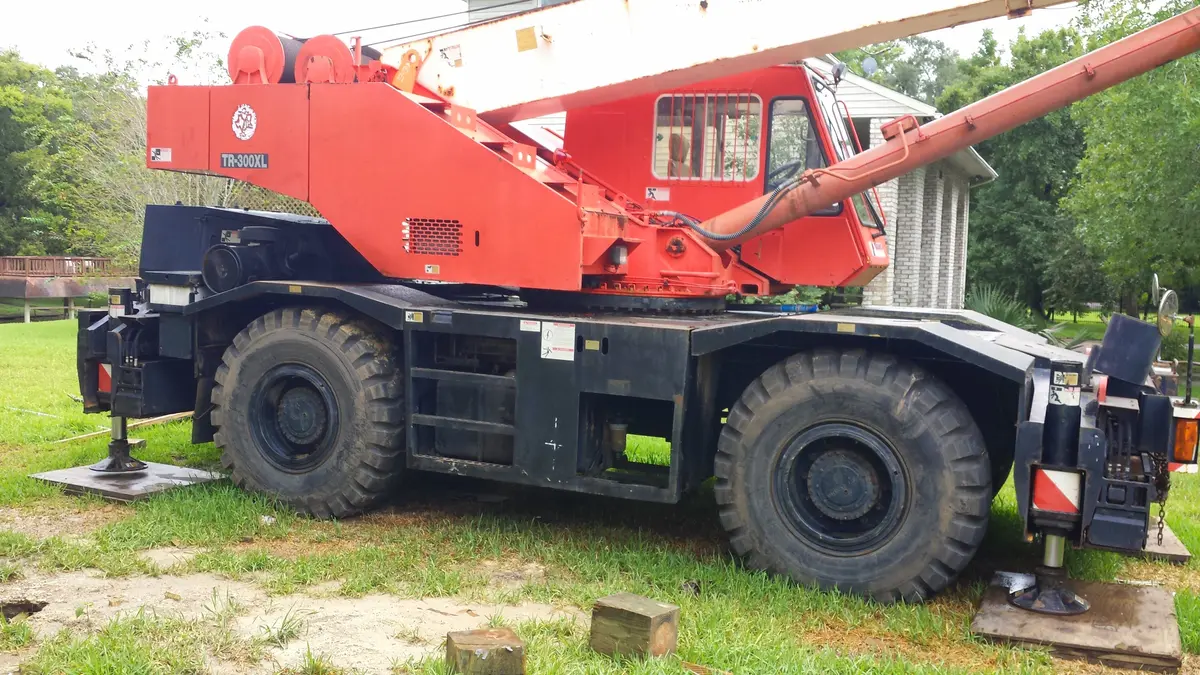

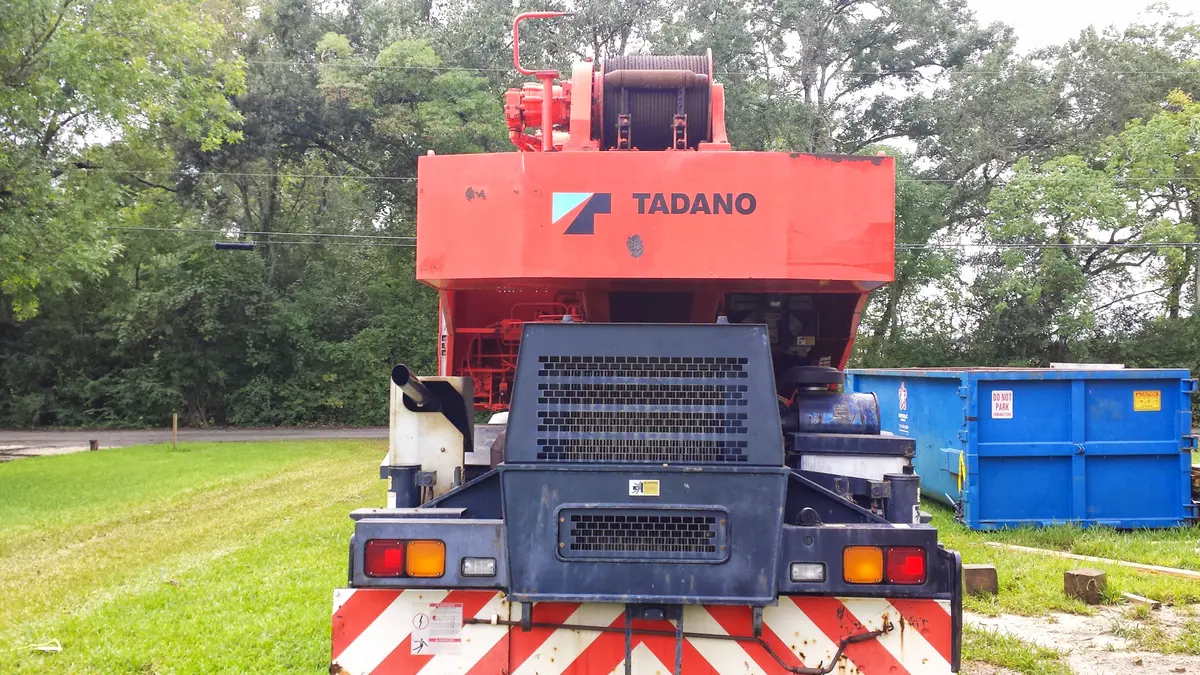

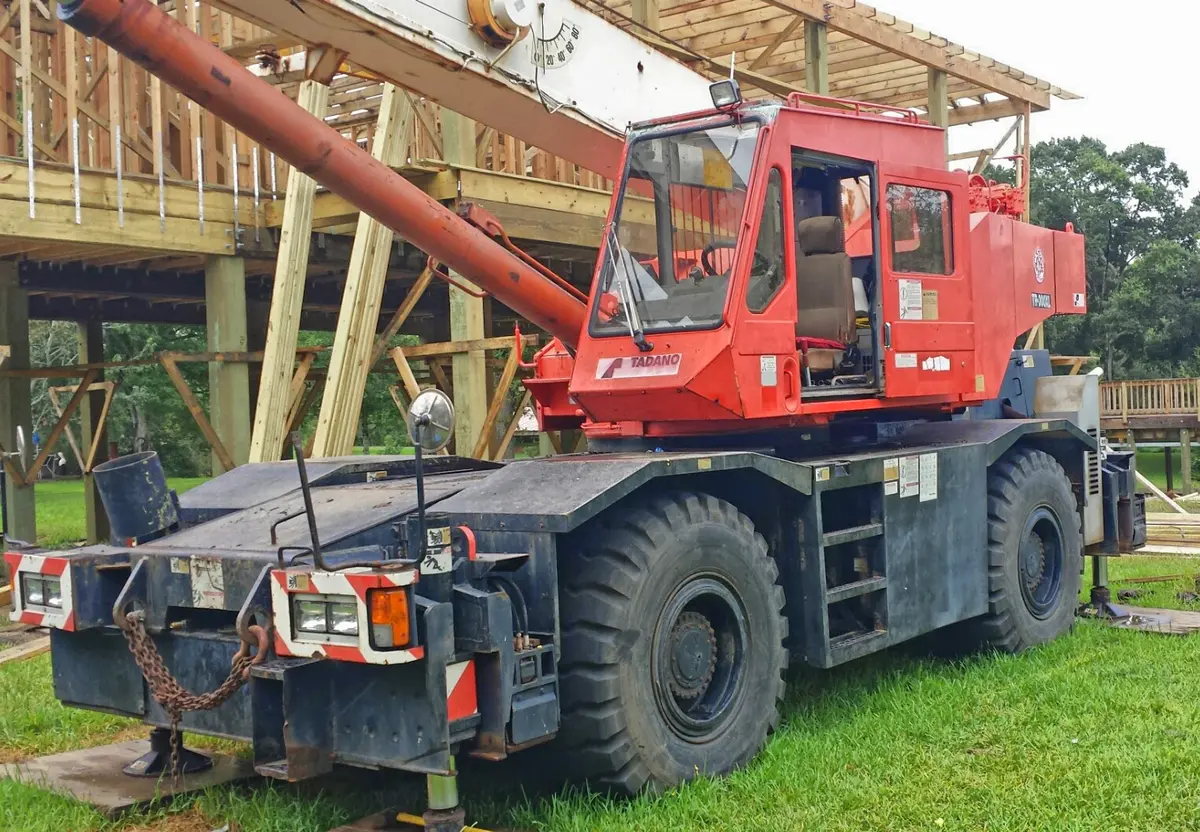

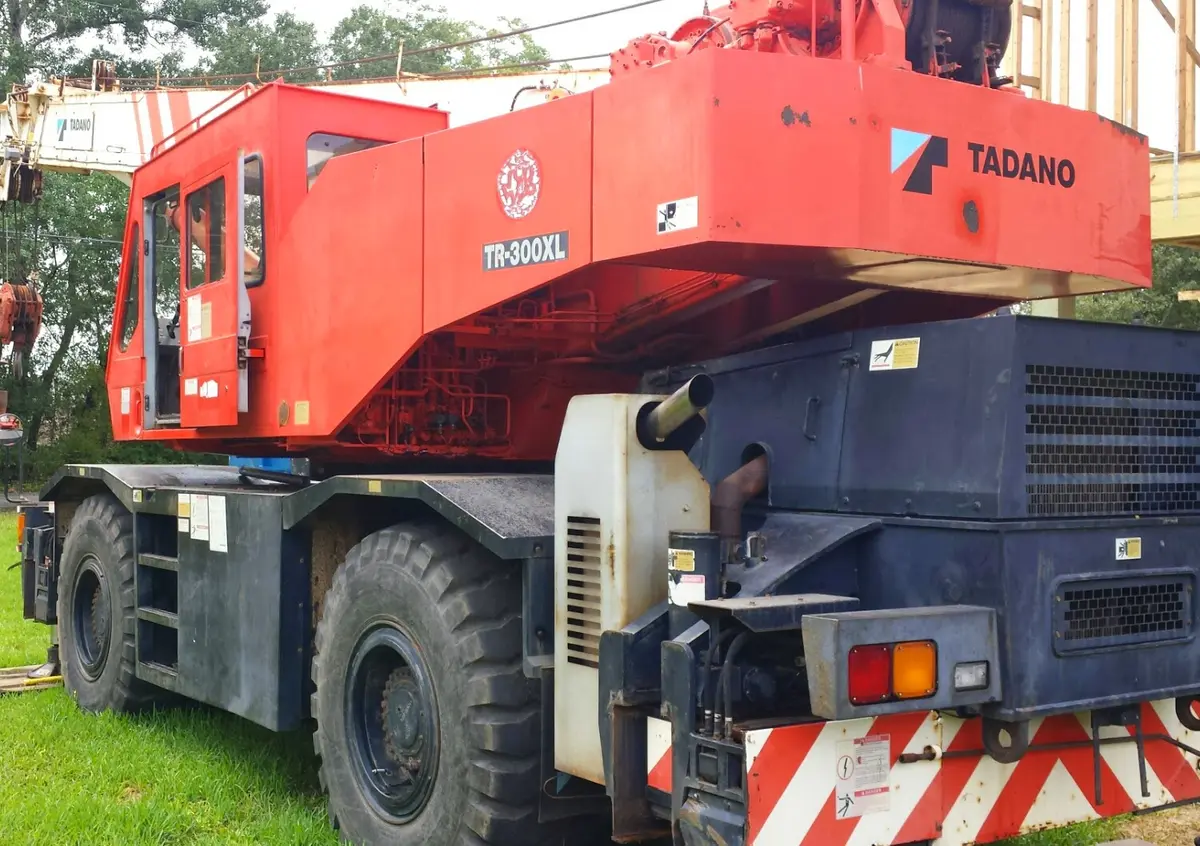

30 TON CAPACITY, CLEAN UNIT, TIRES 80%, CUMMINS MOTOR, AC NEEDS TO BE RECHARGED, RUNS GREAT WITH NO ISSUES, SERVICED AT FACTORY INTERVALS, OWNER OPERATED.
Location: Bacliff, TX
Hours: 3200

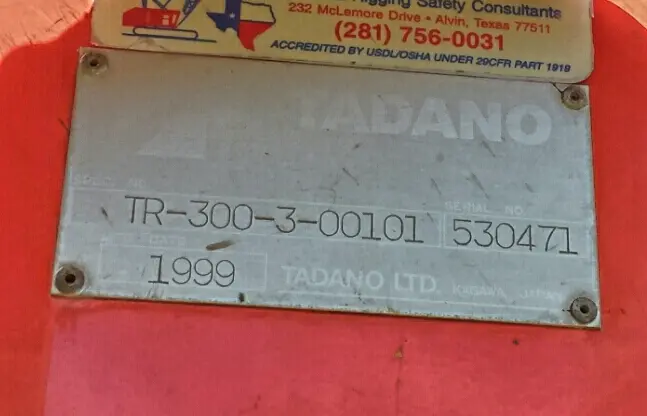

S/N: 530471
Price: $89,000
Boom
MIN HEIGHT @ MAX RAISE ANGLE 31.8 ft in 9.7 m
MAX HEIGHT @ MAX RAISE ANGLE – NO JIB 101.7 ft in 31 m
MIN OPERATING RADIUS 10 ft in 3 m
MAX OPERATING RADIUS 90 ft in 27.4 m
MAX ELEVATING ANGLE 81 degrees
Dimensions
TRANSPORT LENGTH 36.9 ft in 11245 mm
TRANSPORT WIDTH 8.9 ft in 2715 mm
TRANSPORT HEIGHT 11.6 ft in 3535 mm
WHEELBASE 11.5 ft in 3500 mm
WIDTH W/ OUTRIGGERS EXTENDED 20.7 ft in 6300 mm
CARRIER/BASE LENGTH 24 ft in 7320 mm
UPPER STRUCTURE TAIL SWING RADIUS 10.9 ft in 3330 mm
SPECIFICATION

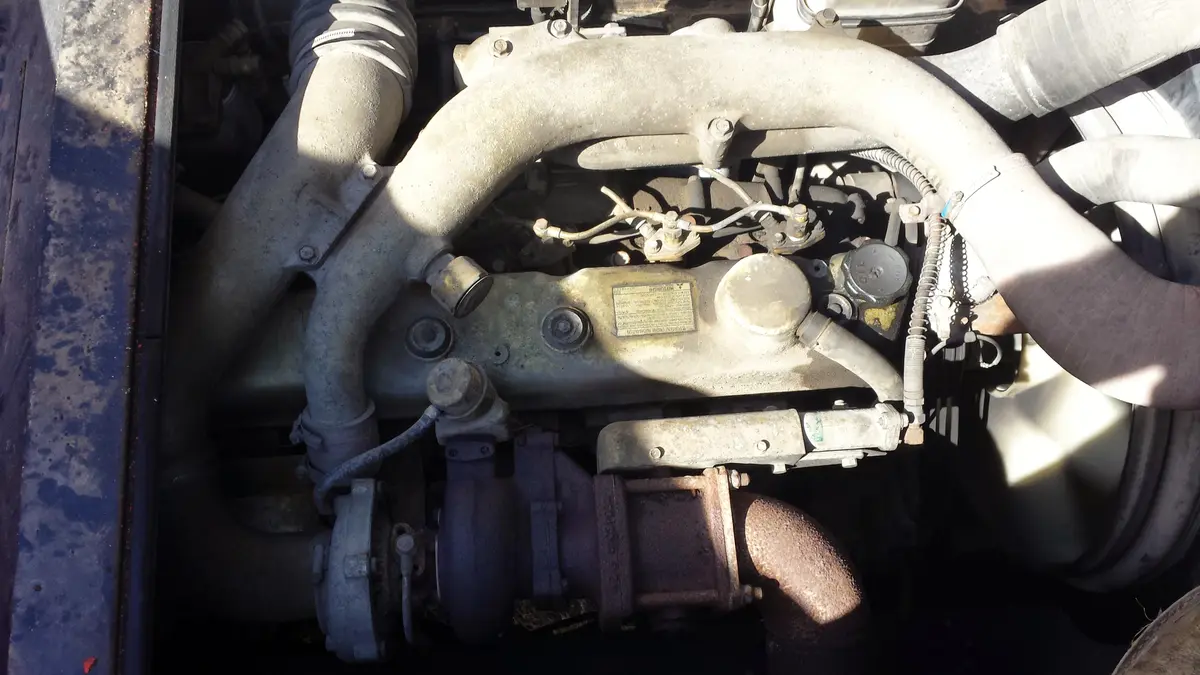

Engine

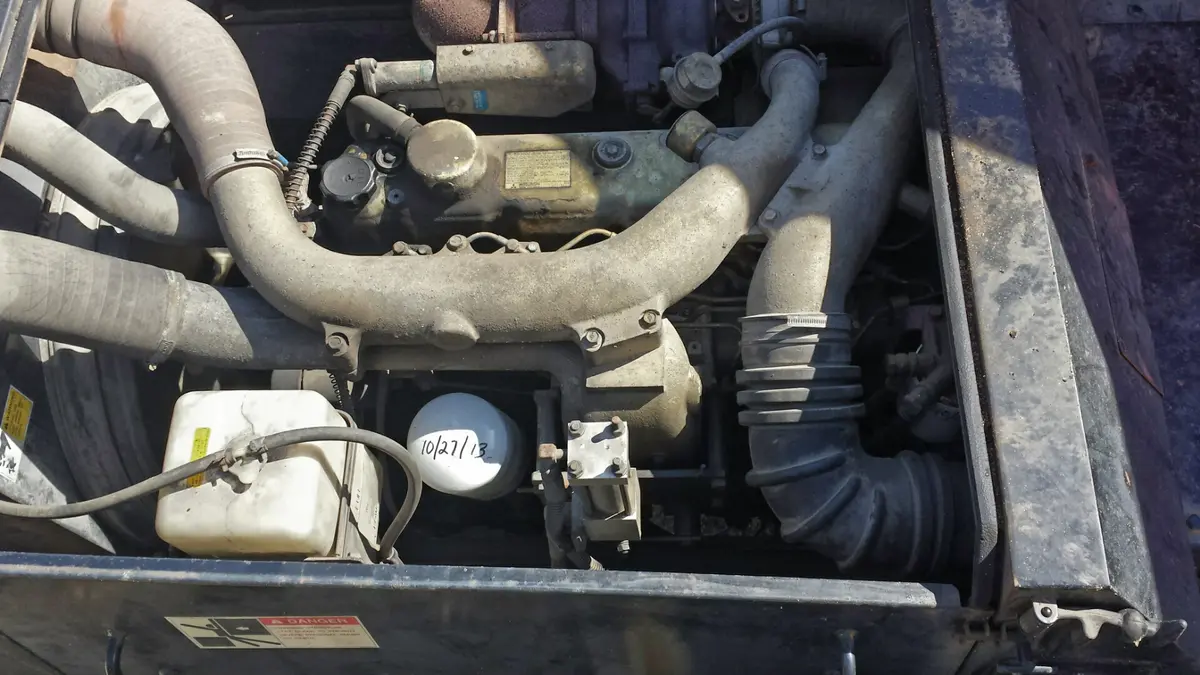

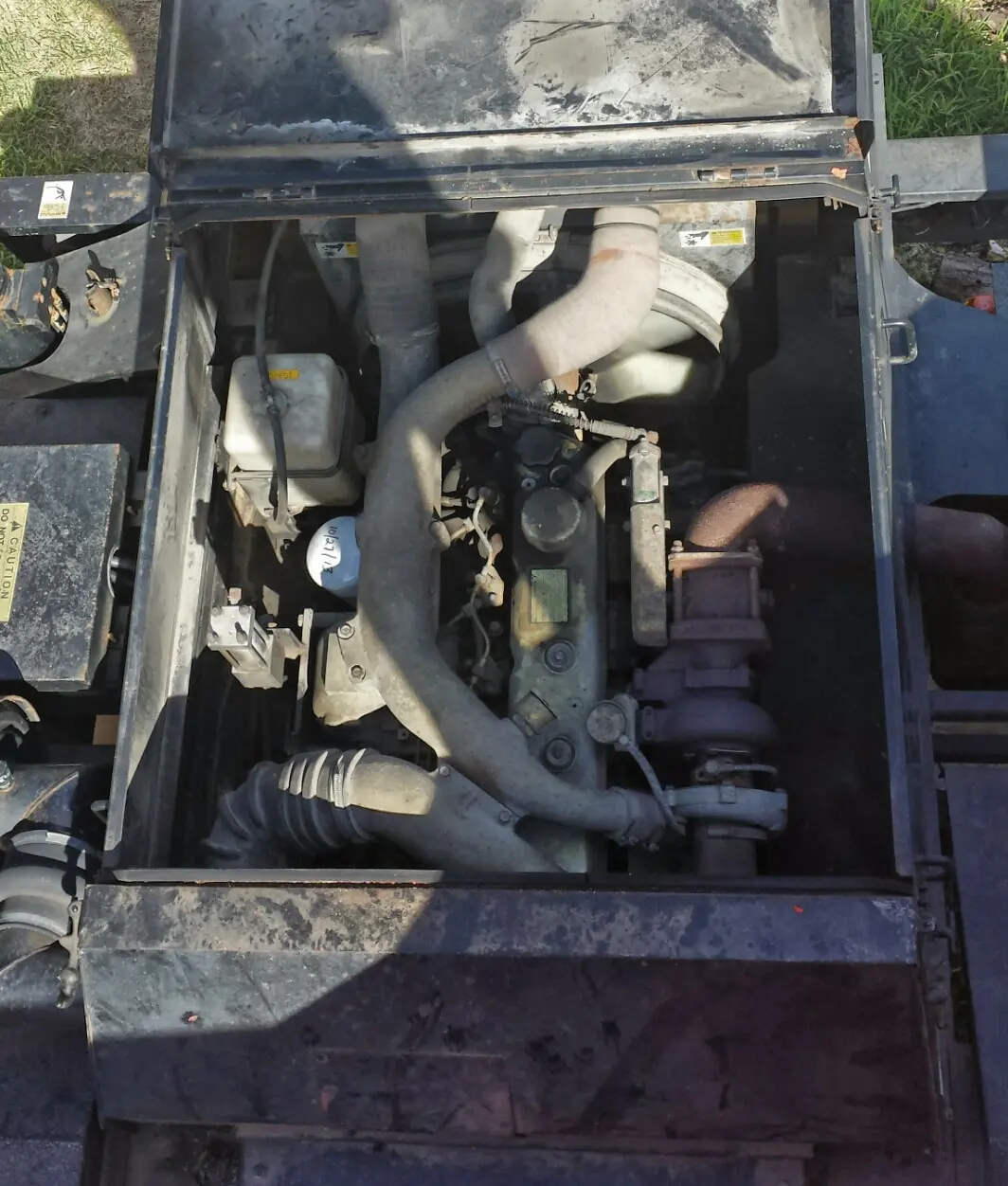

MAKE Cummins
MODEL QSB5.9-30TAA
GROSS POWER 173 hp 129 kw
POWER MEASURED @ 2500 rpm
MAX TORQUE 530 lb ft 718.6 Nm
TORQUE MEASURED @ 1500 rpm
DISPLACEMENT 360 cu in 5.9 L
ASPIRATION turbocharged + aftercooled
Operational
OPERATING WEIGHT 59633 lb 27049.1 kg
FUEL CAPACITY 79.3 gal 300 L

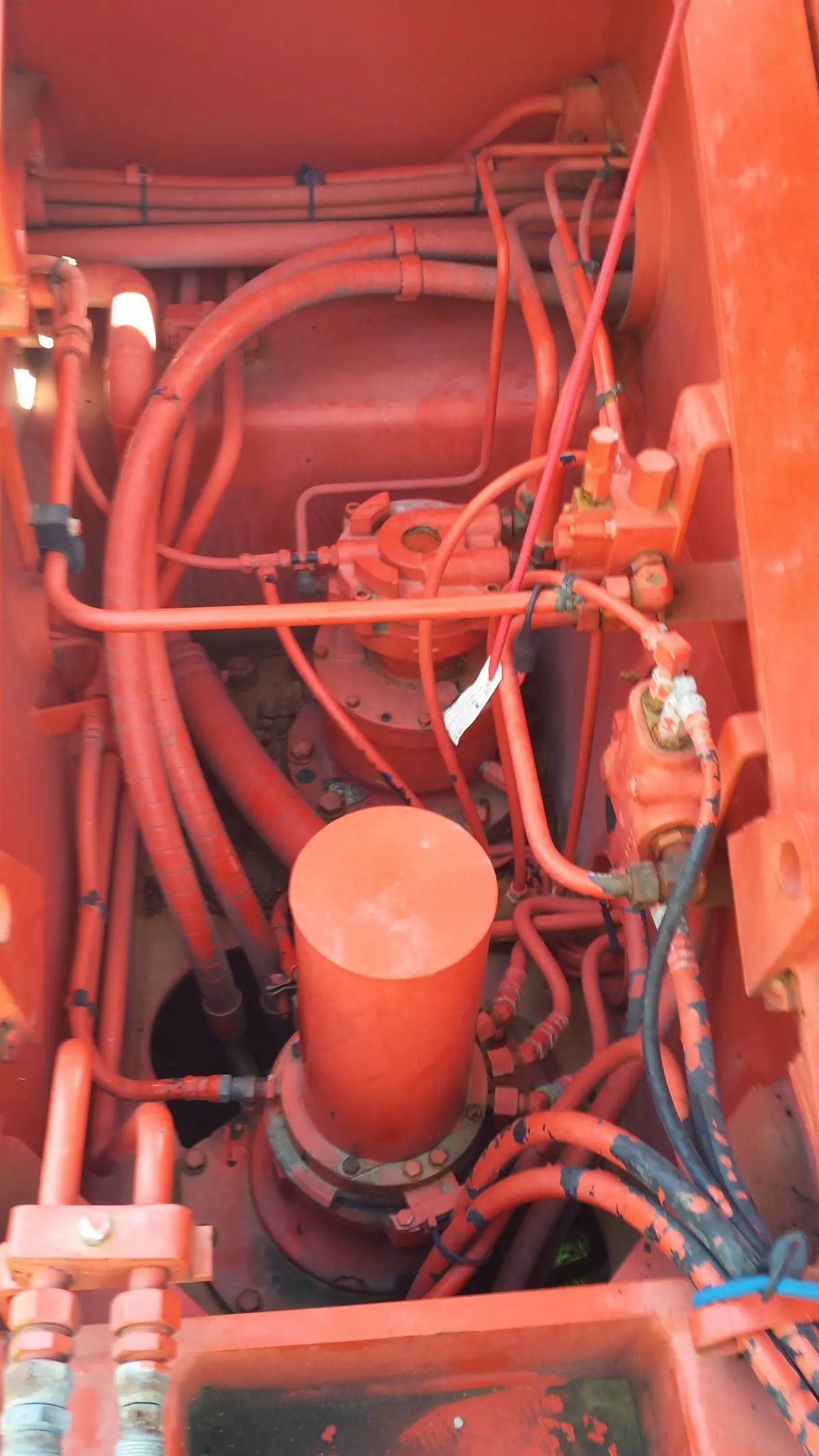

HYDRAULIC SYSTEM FLUID CAPACITY 100.4 gal 380 L
ENGINE OIL CAPACITY 3.8 gal 14.2 L
COOLING SYSTEM FLUID CAPACITY 2.6 gal 9.8 L
OPERATING VOLTAGE 24 V
TIRE SIZE 20.5-25 24PR
Transmission
TYPE Electronically controlled full automatic transmission
NUMBER OF FORWARD GEARS 8
NUMBER OF REVERSE GEARS 2
MAX SPEED – FORWARD 29.2 mph 47 km/h

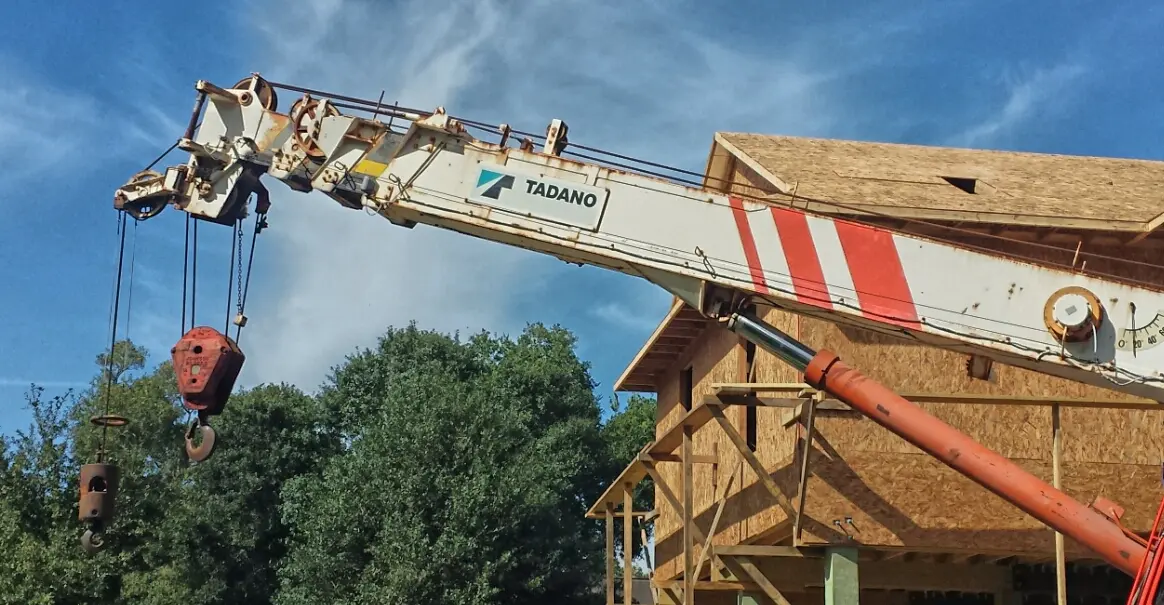

Boom
NUMBER OF SECTIONS 4
MIN HEIGHT @ MAX RAISE ANGLE 31.8 ft in 9.7 m
MAX HEIGHT @ MAX RAISE ANGLE – NO JIB 101.7 ft in 31 m
MAX ELEVATING ANGLE 81 degrees
MAX LIFT CAPACITY 60000 lb 27215.5 kg
SWING SPEED 2.7 rpm
MIN OPERATING RADIUS 10 ft in 3 m
MAX OPERATING RADIUS 90 ft in 27.4 m
Dimensions
TRANSPORT LENGTH 36.9 ft in 11245 mm
TRANSPORT WIDTH 8.9 ft in 2715 mm
TRANSPORT HEIGHT 11.6 ft in 3535 mm
WHEELBASE 11.5 ft in 3500 mm
WIDTH W/ OUTRIGGERS EXTENDED 20.7 ft in 6300 mm
CARRIER/BASE LENGTH 24 ft in 7320 mm
UPPER STRUCTURE TAIL SWING RADIUS 10.9 ft in 3330 mm
